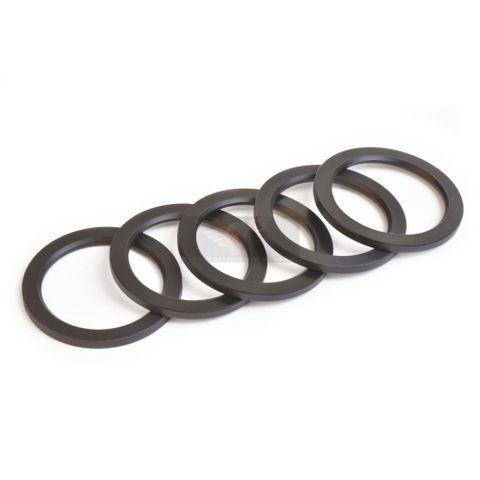

Bottom Bracket

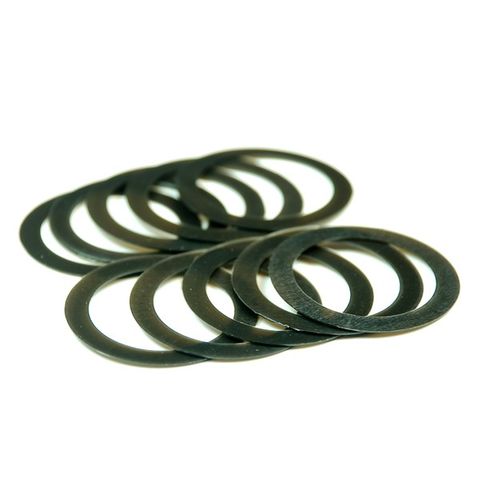

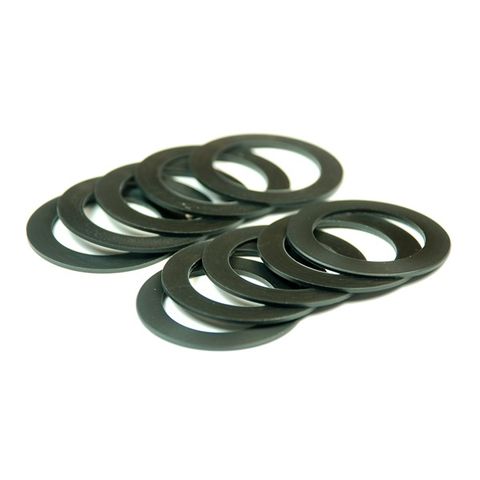

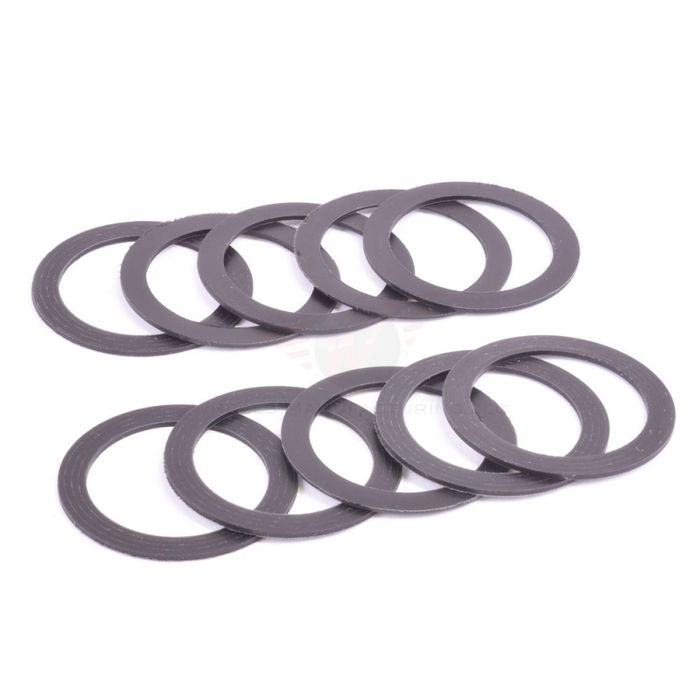

Used to adjust crank chainline or take up any slack when using 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.

- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin.

Used to adjust crank chainline or take up any slack when using 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.

- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin.

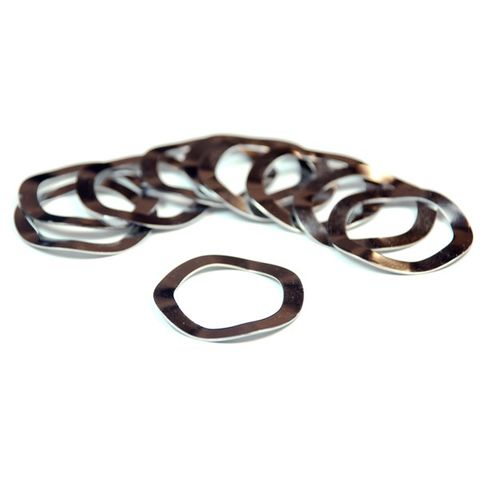

Used to take set proper side-load in PF30, BB30 and similar bottom bracket systems when using 30mm, 24mm (Shimano, FSA, etc.) or 22/24mm (SRAM/TruVativ) spindle cranks.

- Choose from 30mm I.D. or 24mm I.D.
- Sold 10 washers per bag

Used to adjust crank chainline or take up any slack when using 29mm (SRAM DUB) spindle cranks.

- 29mm I.D.
- 0.5mm thick
- 10 spacers per bag
- Machined engineering-grade Delrin.

Used to adjust crank chainline or take up any slack when using 29mm (SRAM DUB) spindle cranks.

- 29mm I.D.
- 1.0mm thick
- 10 spacers per bag
- Machined engineering-grade Delrin.

Used to adjust crank chainline or take up any slack when using 29mm (SRAM DUB) spindle cranks.

- 29mm I.D.
- 2.5mm thick
- 5 spacers per bag
- Machined engineering-grade Delrin.

Used to adjust crank chainline or take up any slack when using 30mm, 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.

- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin

Used to adjust crank chainline or take up any slack when using 30mm, 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.

- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin

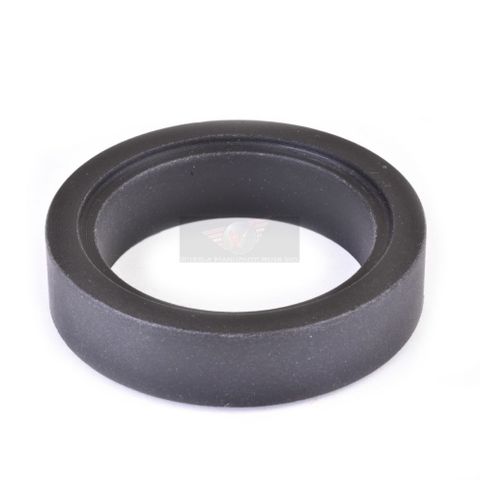

Used to adjust crank chainline or take up any slack when using 30mm spindle cranks.

Inner Diameter: 30mm
Outer Diameter: 41.5mm
Thickness: 10mm
Sold Individually

Used to adjust crank chainline or take up any slack when using 30mm spindle cranks.

Inner Diameter: 30mm
Outer Diameter: 41.5mm
Thickness: 5mm
Sold Individually

Used to take set proper side-load in PF30, BB30 and similar bottom bracket systems when using 30mm, 24mm (Shimano, FSA, etc.) or 22/24mm (SRAM/TruVativ) spindle cranks.

- Choose from 30mm I.D. or 24mm I.D.
- Sold 10 washers per bag

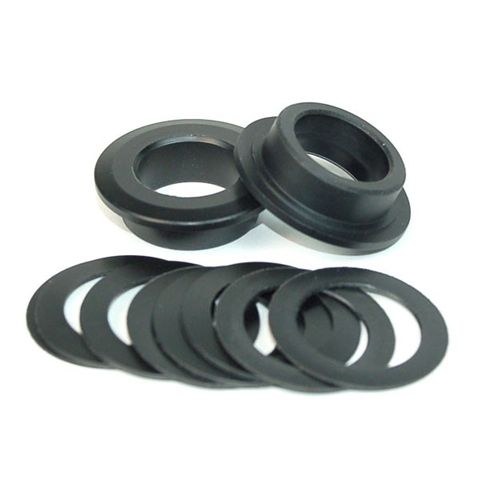

Wheels MFG 386EVO Adapter For SRAM Crank (1x 24mm ID Adapter Right, 1x 22mm ID Adapter Left, 8x 0.7mm spacers)
For adapting SRAM/Truvativ cranks to 386EVO-standard frames

Wheels MFG 386EVO Adapter for Shimano Cranks (2x 24mm ID Adapters & 8x 0.7mm Spacers)
For adapting Shimano cranks to 386EVO-standard frames.

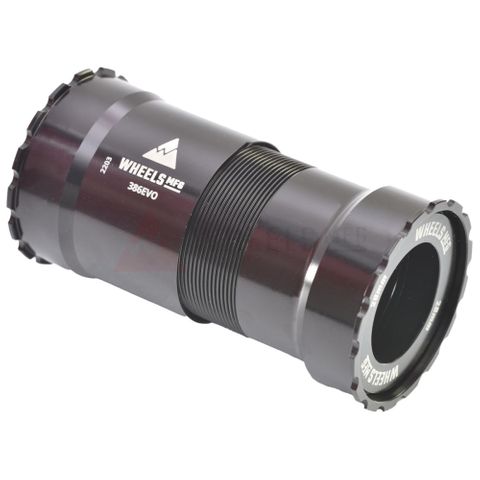

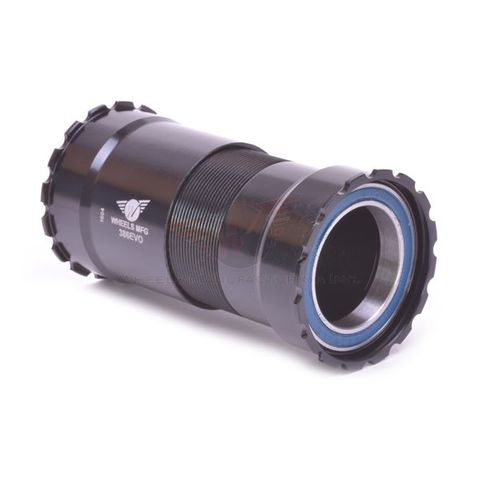

Thread together BB for 386EVO frames and 29mm spindle diameter SRAM DUB compatible cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Bottom Bracket Includes:

BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer

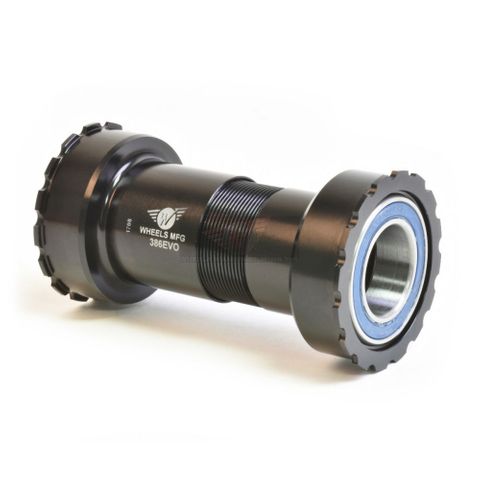

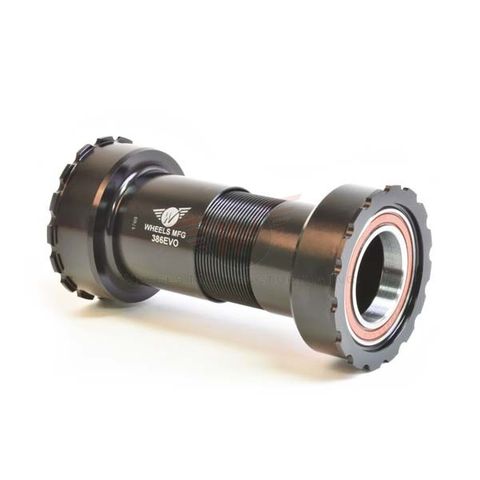

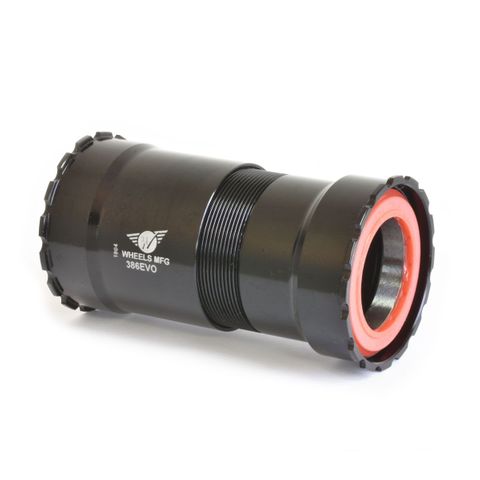

Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

No more creaking. Smooth operation. Fast bearing replacement.

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Bearings: Enduro Angular Contact
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g

*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters

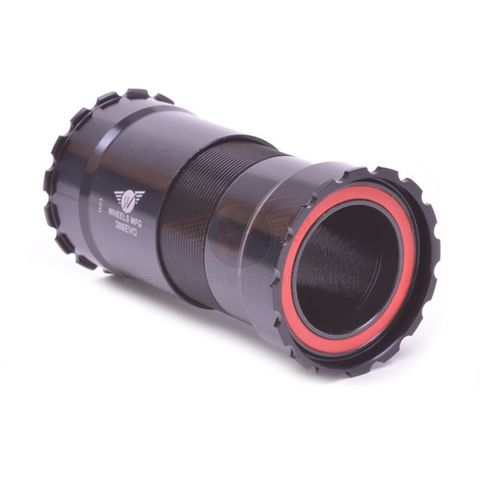

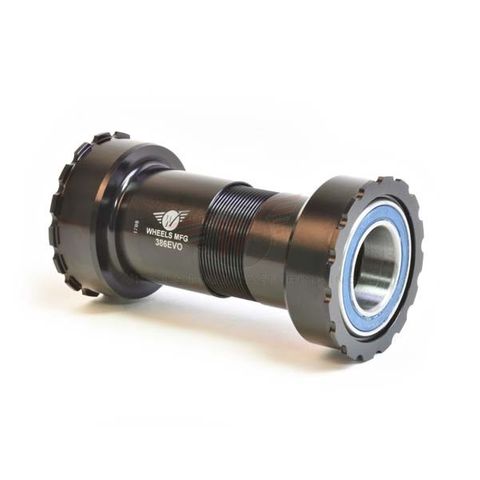

Threaded BB for 386EVO frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

No more creaking. Smooth operation. Fast bearing replacement.

Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 24mm

Threaded BB for 386EVO frames and 22/24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

No more creaking. Smooth operation. Fast bearing replacement.

Notes:

Wheels Mfg 386EVO BB for use with 24/22mm spindle cranks will not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2). If your Quarq spider has an ID less than 49.5mm, your crank may rub on the BB cup.
Compatible with Quarq DZero powermeter spiders with GXP spindles except Eagle MTB.

Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86mm - 92mm
Bottom Bracket Shell I.D.: 46mm

Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

** Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).**

Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g

*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters

Thread together BB for 386EVO frames and M30 28/30mm diameter spindle Praxis - Compatible cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86mm - 92mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 28/30mm
Over Bearing Width: 91.8mm in 86.5mm wide shell

Threaded BB for 386EVO frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 24mm
Bearings: Enduro ABEC-3

Threaded BB for 386EVO frames and 22/24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Notes:

Wheels Mfg 386EVO BB for use with 24/22mm spindle cranks will not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2). If your Quarq spider has an ID less than 49.5mm, your crank may rub on the BB cup.
Compatible with Quarq DZero powermeter spiders with GXP spindles except Eagle MTB.

Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
Bottom Bracket Shell Width (mm): 86mm - 92mm
Bottom Bracket Shell I.D.: 46mm
Bearings: Enduro ABEC-3

Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Bearings: Enduro ZERØ Ceramic Hybrid
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g

*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters

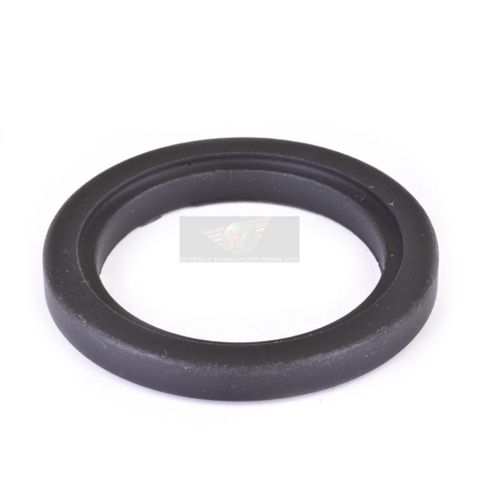

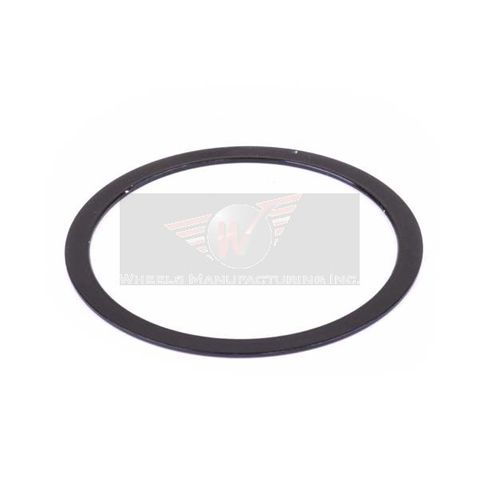

42mm OD / 30mm ID Outer Seals (each)

Outer dust seal for 6806 bearings. 30mm inner diameter fits over 30mm diameter crank spindles. 42mm outer diameter covers the outer race of a 6806 bearing. This is a light duty dust seal with minimal sealing abilities. This seal is 1mm thinner than seals provided with our bottom brackets for 30mm diameter spindles.

- Inner Diameter: 30mm
- Outer Diameter: 42mm
- Thickness: 1.5mm
- Replacement seal for our BB86-30-BB and BB86-30-CER bottom brackets.
** Sold Individually

Note: Installl with the embossed lettering facing the bearing.

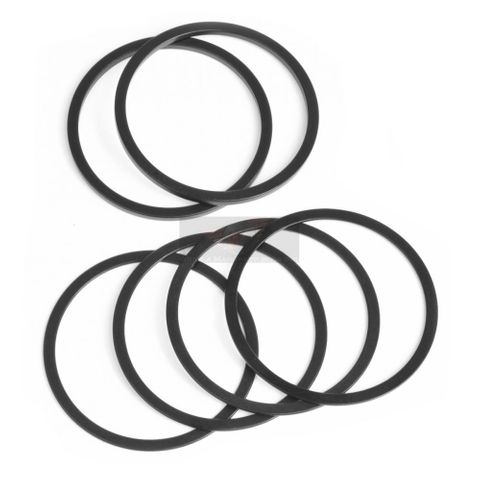

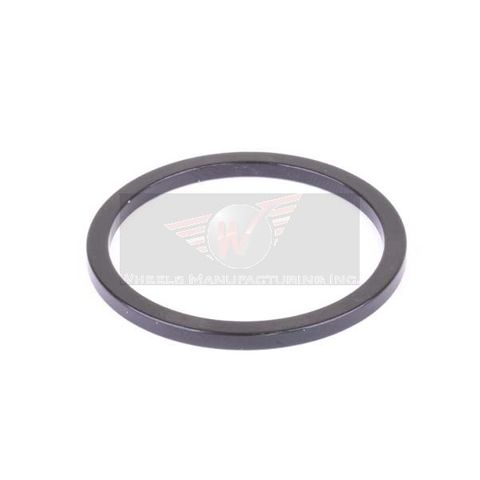

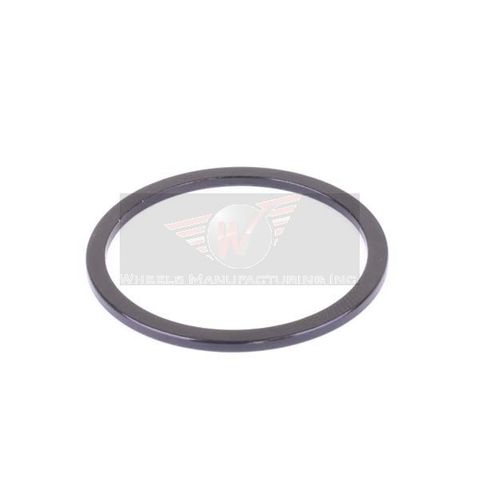

46mm inside diameter cup spacers that fit between a bottom bracket cup and the frame. Machined from 6061 aluminum and anodized black. These spacers can be used for a few different scenarios:

When used with a Wheels Manufacturing GXP compatible bottom bracket, adding cup spacers between the non-drive side cup and the frame will move the chainrings on a GXP crank closer to the frame (reducing the chainline).
For Specialized road frames with the 61mm wide Carbon OSBB shell, you would place 3.5mm of spacers betwen each cup to effectively widen the BB shell to 68mm when used with non-Specialized cranks. One bag will properly space one 61mm wide Specialized OSBB shell to 68mm.

Bag Includes:

(2) - 2.5mm bottom bracket cup spacers (46mm ID)
(4) - 1.0mm bottom bracket cup spacers (46mm ID)
