CHAIN GUIDES & TENSIONERS

MKS CA-NJS 6mm C/Tension pr

MKS MX-10 8mm C/Tension Single

The 104 BCD bashring can be added to the crankset to protect a 104 or 64 BCD chainring.

- Properly sized to fit 104 or 64 BCD chainring
- Two sizes for ultimate protection: smaller 26-30t (132 mm diameter) and mid-sized 32t-34t (148 mm diameter).

Compatibility

These are for use with 104 BCD chainrings or 64 BCD chainrings on 104 BCD cranksets
These are compatible with all triple 104 BCD cranksets and mount in the “big ring” position
They are compatible with double cranksets that have flat outfacing mounting tabs, like XTR M980. However, many 2x specific cranks, like Shimano XT M785, have a profiled outer surface on the mounting tab so our bashring cannot be mounted on that non-flat surface.
These work great with the 104 BCD Elliptical 32t ring. They will work with the 34t as well, but at the max diameter a few teeth will extend just beyond the bashring.

Chainring bolt requirements for this bashring
104 x 30t - 10mm bolts are required for use with the bashring.
Other 104 BCD sizes - you will need 8mm bolts (stock size that comes on 3x cranksets holding the middle and big rings on). Wolf Tooth does not make these.
When using with the 64 BCD you will need 6mm bolts to mount the bashring. Note: Orient the head of the bolt to the inside to provide clearance for the chain (bolts will go in backwards).

The 104 BCD bashring can be added to the crankset to protect a 104 or 64 BCD chainring.

- Properly sized to fit 104 or 64 BCD chainring
- Two sizes for ultimate protection: smaller 26-30t (132 mm diameter) and mid-sized 32t-34t (148 mm diameter).

Compatibility

These are for use with 104 BCD chainrings or 64 BCD chainrings on 104 BCD cranksets
These are compatible with all triple 104 BCD cranksets and mount in the “big ring” position
They are compatible with double cranksets that have flat outfacing mounting tabs, like XTR M980. However, many 2x specific cranks, like Shimano XT M785, have a profiled outer surface on the mounting tab so our bashring cannot be mounted on that non-flat surface.
These work great with the 104 BCD Elliptical 32t ring. They will work with the 34t as well, but at the max diameter a few teeth will extend just beyond the bashring.

Chainring bolt requirements for this bashring
104 x 30t - 10mm bolts are required for use with the bashring.
Other 104 BCD sizes - you will need 8mm bolts (stock size that comes on 3x cranksets holding the middle and big rings on). Wolf Tooth does not make these.
When using with the 64 BCD you will need 6mm bolts to mount the bashring. Note: Orient the head of the bolt to the inside to provide clearance for the chain (bolts will go in backwards).

Our 96 BCD bash ring is one of the few available for the Shimano compact triple cranksets. If you like the rough stuff, log hopping, bouldering on your bike or occasionally like to see if you can break your bike on the gnarlies, at least protect that beautiful Wolf Tooth 96 BCD ring. For use with 30-34t chanirings, bash diameter is 148 mm.


Compatibility

These rings fit any 96 symmetric BCD crankset
Compatible crankset models: M782, M672, M622, M612
Fits with the Drop Stop® 30t, 32t & 34t Wolf Tooth chainrings.
10mm bolts are required for mounting this bashring with our chainring

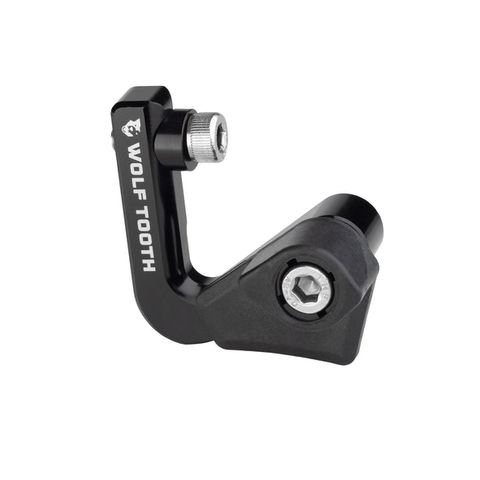

If you are a 1X CX, gravel or road rider and can't afford to drop a chain, the Wolf Tooth GnarWolf® braze-on chainguide is for you. Designed specifically around 1x wide/narrow chainrings the GnarWolf will keep your chain glued to your chainring in the roughest and muddiest of conditions. No other CX chainguide is as rigid or as easy to adjust as the GnarWolf.

- Patented infinite chainline adjustment between 45mm and 51mm via an elliptical expanding mandrel. No shims required.
- Infinite vertical adjustment between 34t and 46t for round and oval chainrings
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
- All adjustments made with common 4 mm hex key
- Designed for the rigors of the muddiest CX course or roughest gravel riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light at 44g
- Specific guide shaping is optimized for use with elliptical/oval and round chainrings
- Installation takes just a few minutes – no need to remove your crank arms

Compatibility

- Designed to fit on any bike with an integral braze-on mount. If you have a round seat tube with no braze-on mount, you can buy a braze-on adapter
- Designed to accommodate chainlines from approx. 45mm to 51mm
- Minimum distance of 10 mm between crank and center of ring
- See photos above as installation guide
- Optimized for use with both elliptical and round 34t-46t chainrings
- For 1x use only

If you are a rider that fearlessly takes the tough lines and can't afford to drop a chain, the Wolf Tooth GnarWolf® chainguide is for you. Designed specifically for any bike that has ISCG 05 Mount and a 1x wide/narrow chainring. The GnarWolf will keep your chain glued to your chainring in the roughest and muddies of conditions. Refer to image on this page for installation and adjustment instructions.

- Patented infinite chainline adjustment between 48mm and 54mm via an elliptical expanding mandrel. No shims required.
- Infinite vertical adjustment between 28t and 36t for round chainrings and 28t-34t elliptical
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
- All adjustments made with common 4 mm hex key
- Designed for the rigors of Enduro, heavy trail, mud and even DH riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light at 44g
- Specific guide shaping is optimized for use with elliptical and round chainrings
- Installation takes just a few minutes – no need to remove your crank arms

Compatibility

- Designed to fit on any bike with an ISCG 05 Mount
- Installation shown in photos on this page
- Optimized for use with both elliptical and round chainrings
Round chainrings 28t-36t or elliptical chainrings 28t-34t
- For 1x use only
- Minimum distance of 10 mm between crank and center of ring
- Due to frame and bike geometry there will be some bikes that need modifications or flat out won't work. Here are the known exceptions:
Ibis Mojo 3 - will not work
Ibis Ripmo - will not work
Specialized Stumpjumper 2016-2017 models require 1 mm of spacers (washers will work) between the frames ISCG05 mounts and the guide (the guide interferes with the frame otherwise).
Evil The Following - will not work (upper swing arm interferes)

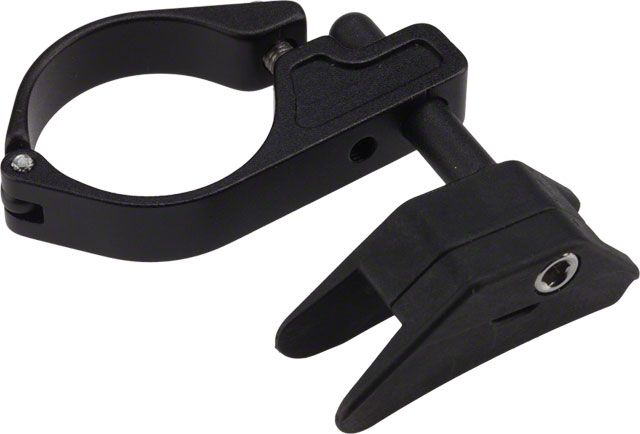

If you are a 1X CX, gravel, or road rider and can't afford to drop a chain, the Wolf Tooth GnarWolf® seat-tube clamp chainguide is for you. Designed specifically around 1x wide/narrow chainrings the GnarWolf will keep your chain glued to your chainring in the roughest and muddies of conditions. No other CX chainguide is as rigid or as easy to adjust as the GnarWolf. This product includes our braze-on guide plus a clamp adapter for round seat tubes in a choice of 3 sizes.

- Patented infinite chainline adjustment between 45mm and 51mm via an elliptical expanding mandrel. No shims required.
- Nearly unlimited vertical adjustment by sliding the seat tube clamp. Accommodates between 32t and 52t for round and oval chainrings
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
- All adjustments made with common 4 mm hex key
- Designed for the rigors of the muddiest CX course or the roughest gravel riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light
- Specific guide shaping is optimized for use with elliptical and round chainrings
- Installation takes just a few minutes – no need to remove your crank arms

Compatibility

- Designed to fit on any bike with a round seat tube. If your bike already has a braze-on FD mount, use our braze-on chain guide
- Installation instructions shown in photos on this page
- Minimum distance of 10 mm between crank and center of ring
- Optimized for use with both elliptical and round 32t-52t chainrings
- For 1x use only
- Designed to accommodate chainlines from approx. 45mm to 51mm

If you are a 1X CX, gravel, or road rider and can't afford to drop a chain, the Wolf Tooth GnarWolf® seat-tube clamp chainguide is for you. Designed specifically around 1x wide/narrow chainrings the GnarWolf will keep your chain glued to your chainring in the roughest and muddies of conditions. No other CX chainguide is as rigid or as easy to adjust as the GnarWolf. This product includes our braze-on guide plus a clamp adapter for round seat tubes in a choice of 3 sizes.

- Patented infinite chainline adjustment between 45mm and 51mm via an elliptical expanding mandrel. No shims required.
- Nearly unlimited vertical adjustment by sliding the seat tube clamp. Accommodates between 32t and 52t for round and oval chainrings
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
- All adjustments made with common 4 mm hex key
- Designed for the rigors of the muddiest CX course or the roughest gravel riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light
- Specific guide shaping is optimized for use with elliptical and round chainrings
- Installation takes just a few minutes – no need to remove your crank arms

Compatibility

- Designed to fit on any bike with a round seat tube. If your bike already has a braze-on FD mount, use our braze-on chain guide
- Installation instructions shown in photos on this page
- Minimum distance of 10 mm between crank and center of ring
- Optimized for use with both elliptical and round 32t-52t chainrings
- For 1x use only
- Designed to accommodate chainlines from approx. 45mm to 51mm

If you are a 1X CX, gravel, or road rider and can't afford to drop a chain, the Wolf Tooth GnarWolf® seat-tube clamp chainguide is for you. Designed specifically around 1x wide/narrow chainrings the GnarWolf will keep your chain glued to your chainring in the roughest and muddies of conditions. No other CX chainguide is as rigid or as easy to adjust as the GnarWolf. This product includes our braze-on guide plus a clamp adapter for round seat tubes in a choice of 3 sizes.

- Patented infinite chainline adjustment between 45mm and 51mm via an elliptical expanding mandrel. No shims required.
- Nearly unlimited vertical adjustment by sliding the seat tube clamp. Accommodates between 32t and 52t for round and oval chainrings
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
- All adjustments made with common 4 mm hex key
- Designed for the rigors of the muddiest CX course or the roughest gravel riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light
- Specific guide shaping is optimized for use with elliptical and round chainrings
- Installation takes just a few minutes – no need to remove your crank arms

Compatibility

- Designed to fit on any bike with a round seat tube. If your bike already has a braze-on FD mount, use our braze-on chain guide
- Installation instructions shown in photos on this page
- Minimum distance of 10 mm between crank and center of ring
- Optimized for use with both elliptical and round 32t-52t chainrings
- For 1x use only
- Designed to accommodate chainlines from approx. 45mm to 51mm

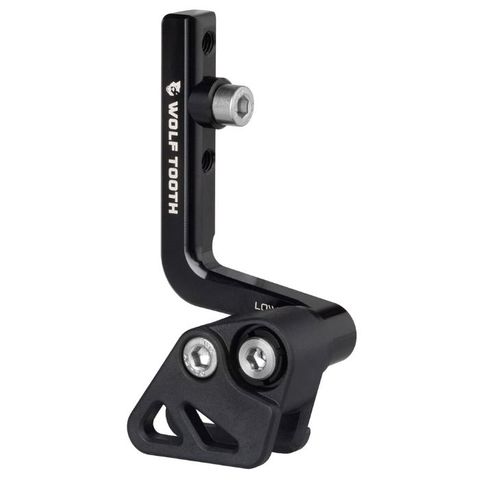

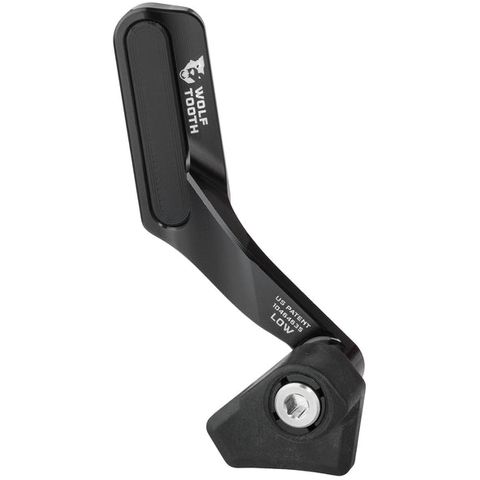

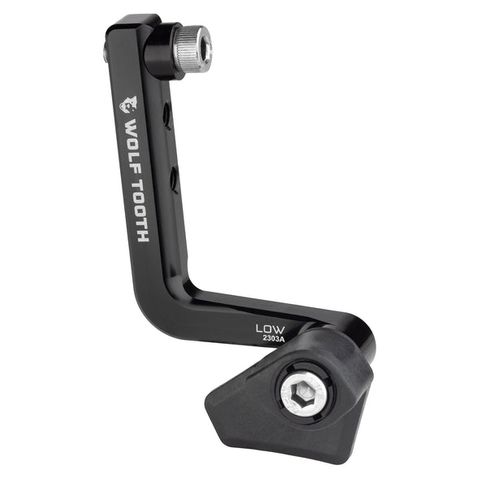

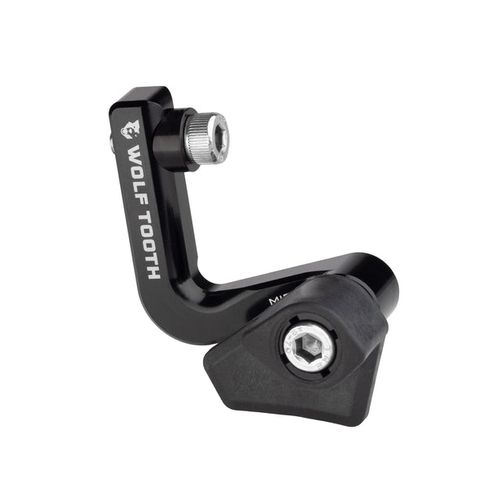

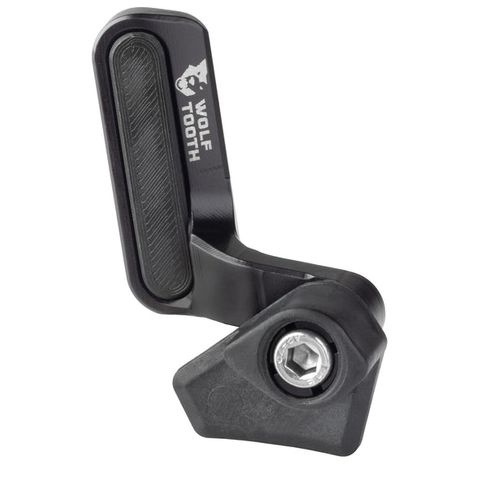

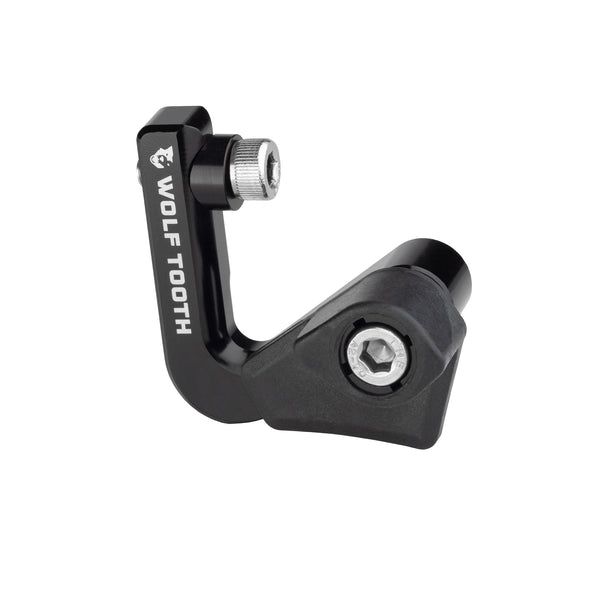

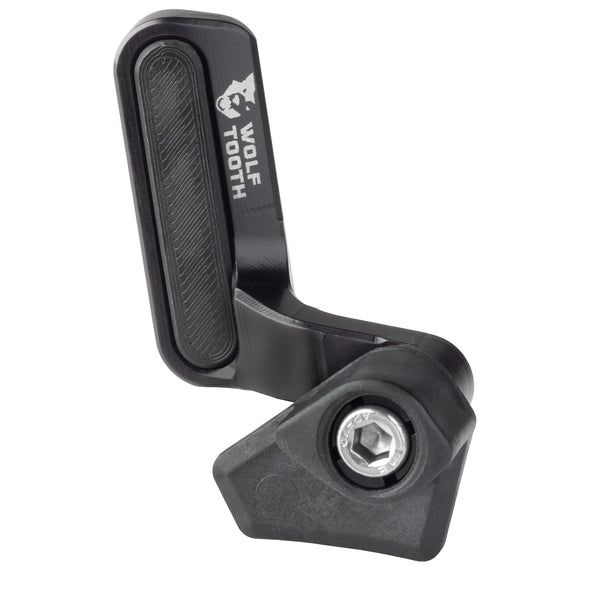

The new LoneWolf Aero Chainguide prevents dropped chains on road, gravel, and CX bikes with 1x drivetrains. This chainguide has been tested and developed with Team Jumbo-Visma, has been trusted in road cycling’s biggest races, and ridden to victory in the 2023 Giro d'Italia. LoneWolf Aero Chainguide was also ridden to victory through truly epic conditions at Unbound Gravel 2023.
We think of this little chainguide as 30g of insurance for races where a dropped chain could cost you a shot at the podium. The LoneWolf Aero Chainguide is similar to our existing GnarWolf, and combines a low profile head that only covers the top and inboard side of the chain with our GuideLock quick adjustment system. This eliminates the need for shims and gives you security in a light, easy to use, and aerodynamically optimized chainguide solution.

• Compatible with bikes that have a braze-on front derailleur mount
• Only for use with 1x drivetrains
• Works with round or oval chainrings
• Three base sweep options for chainring sizes ranging from roughly 38T-62T based on frame; Low sweep for smaller chainrings in that range will be most popular
• Head has 8mm of adjustment for chainline via our GuideLock quick adjustment system

The new LoneWolf Aero Chainguide prevents dropped chains on road, gravel, and CX bikes with 1x drivetrains. This chainguide has been tested and developed with Team Jumbo-Visma, has been trusted in road cycling’s biggest races, and ridden to victory in the 2023 Giro d'Italia. LoneWolf Aero Chainguide was also ridden to victory through truly epic conditions at Unbound Gravel 2023.
We think of this little chainguide as 30g of insurance for races where a dropped chain could cost you a shot at the podium. The LoneWolf Aero Chainguide is similar to our existing GnarWolf, and combines a low profile head that only covers the top and inboard side of the chain with our GuideLock quick adjustment system. This eliminates the need for shims and gives you security in a light, easy to use, and aerodynamically optimized chainguide solution.

• Compatible with bikes that have a braze-on front derailleur mount
• Only for use with 1x drivetrains
• Works with round or oval chainrings
• Three base sweep options for chainring sizes ranging from roughly 38T-62T based on frame; Low sweep for smaller chainrings in that range will be most popular
• Head has 8mm of adjustment for chainline via our GuideLock quick adjustment system
