Bottom Bracket

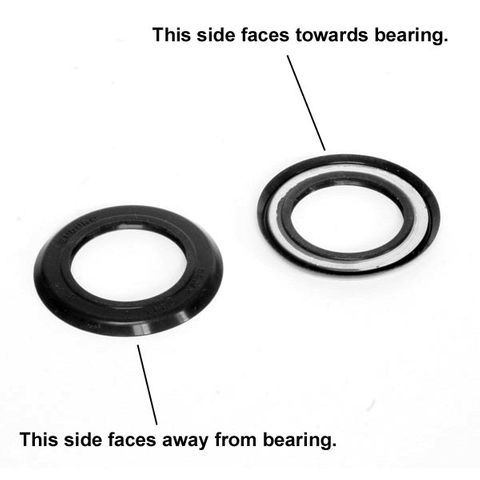

22mm x 41mm GXP outer seal for Wheels Mfg bottom brackets. This seal is for the non-drive side cup when using 24/22mm spindle cranksets (SRAM, Truvativ, etc).

Note: Install seal with lettering facing towards the bearing.

Fits the following bottom brackets:

- BB30 / PF30 Outboard
- BB86/92

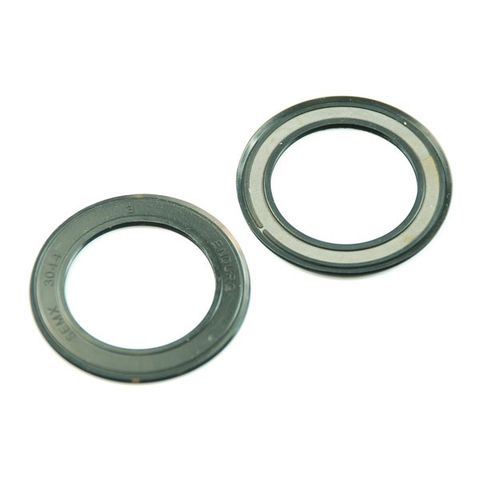

42mm OD / 30mm ID Outer Seals (each)

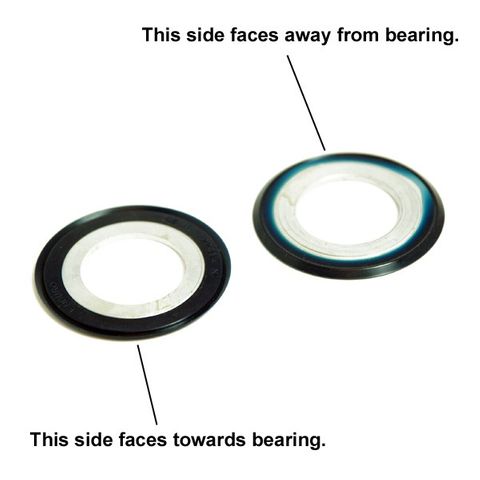

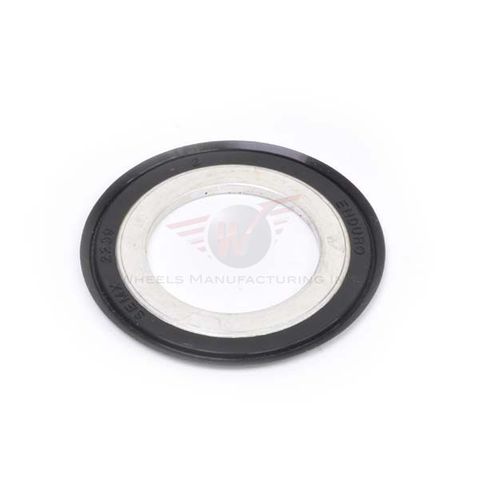

Outer dust seal for 6806 bearings. 30mm inner diameter fits over 30mm diameter crank spindles. 42mm outer diameter covers the outer race of a 6806 bearing. This is a light duty dust seal with minimal sealing abilities. This seal is 1mm thinner than seals provided with our bottom brackets for 30mm diameter spindles.

- Inner Diameter: 30mm
- Outer Diameter: 42mm
- Thickness: 1.5mm
- Replacement seal for our BB86-30-BB and BB86-30-CER bottom brackets.
** Sold Individually

Note: Installl with the embossed lettering facing the bearing.

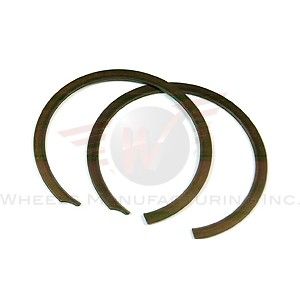

retainer clips for the BB30 bottom brackets keep the 6806 bearings in place.

Fits BB30 standard frames

Replacement o-rings for Wheels Mfg BB86/92 bottom bracket. This is the larger o-ring that sits on the larger section of each cup nearest the outer flange.

- 30mm x 32mm x 2mm
- Sold individually

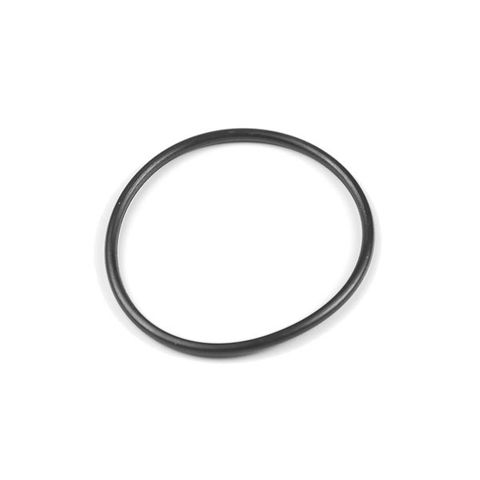

Replacement o-ring for Wheels Mfg bottom brackets. This is the smaller o-ring that sits on the smaller section of inner cup.

Fits:
- PF30
- BB86/92
- 28mm X 1.5mm
- 1 o-ring per bag

7/8" x 1/16" Buna-7 O-ring for Bottom Bracket

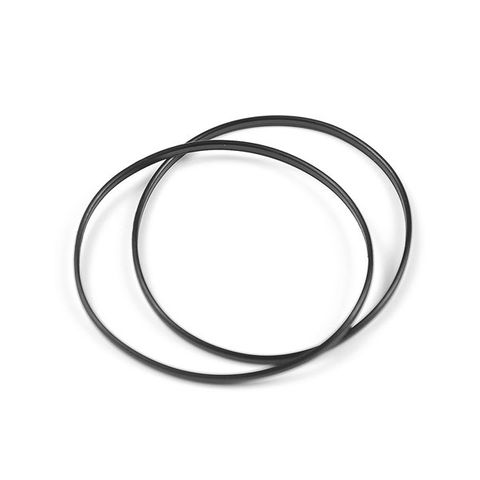

Replacement o-rings for Wheels Mfg PressFit 30 (PF30) and PF30-OUT & BB30-OUT bottom brackets. This is the larger o-ring that sits on the larger section of each cup nearest the outer flange.

42mm x 44mm x 2mm
2 o-rings per bag

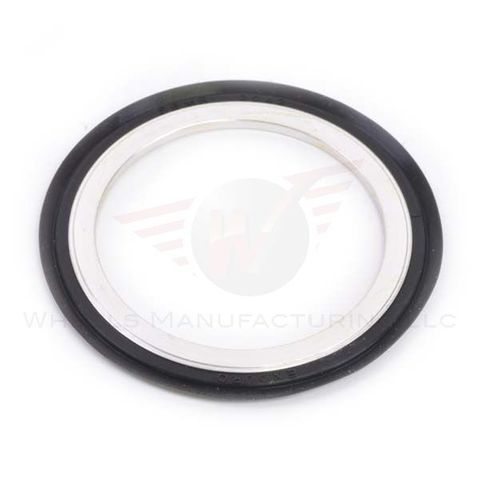

Outer seal for Wheels Mfg PressFit 30 bottom bracket.

Fits:
PF30-BB
PF30-BB-AC
PF30-BB-CER

* Sold individual

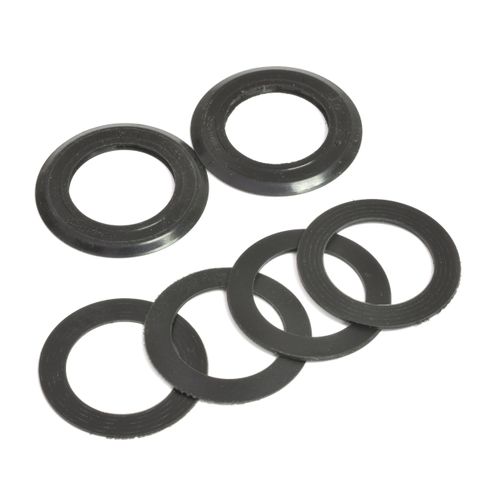

Replacement spacer pack for Wheels Mfg 24mm (Shimano) bottom brackets.

Pack Includes:
2 - Silicone Dust Seal, 24mm ID
2 - 0.5mm, 24mm ID Crank Spindle Spacer
2 - 1.0mm, 24mm ID Crank Spindle Spacer

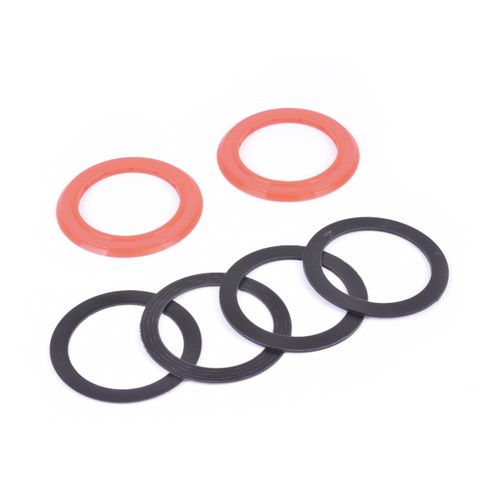

Replacement spacer pack for Wheels Mfg 29mm spindle (SRAM DUB) bottom brackets.

Pack Includes:
2 - Silicone Dust Seal, 29mm ID, 42mm OD
2 - 0.5mm, 29mm ID Crank Spindle Spacer
2 - 1.0mm, 29mm ID Crank Spindle Spacer

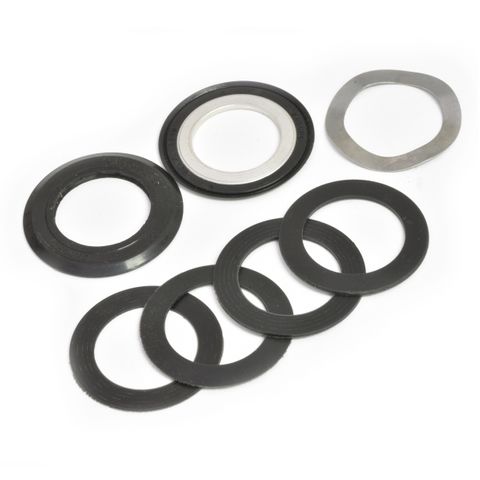

Replacement spacer pack for Wheels Mfg 22/24mm (GXP) bottom brackets.

Pack Includes:
1 - Silicone Dust Seal, 24mm ID Drive Side
1 - Silicone Dust Seal, 22mm ID Non-drive Side
1 - 24MM Wave Washer
2 - 0.5mm, 24mm ID Crank Spindle Spacer
2 - 1.0mm, 24mm ID Crank Spindle Spacer

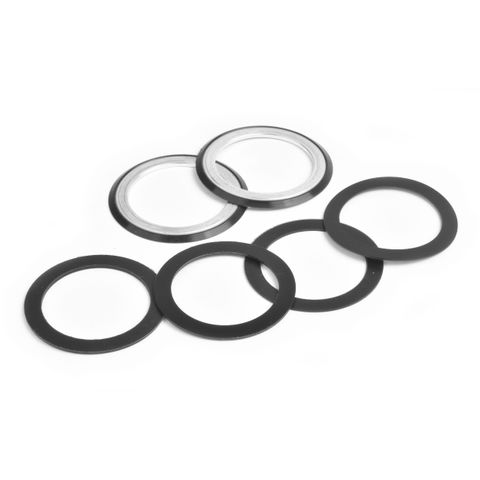

Replacement spacer pack for Wheels Mfg T47 with Inboard bearing for 30mm spindle bottom brackets.

For use with:
T47-BB-30MM-BB
T47-BB-30MM-AC

Pack Includes:
2 - Dust Seal, 42mm OD, 30mm ID
2 - 0.5mm, 30mm ID Crank Spindle Spacer
2 - 1.0mm, 30mm ID Crank Spindle Spacer
