Racks

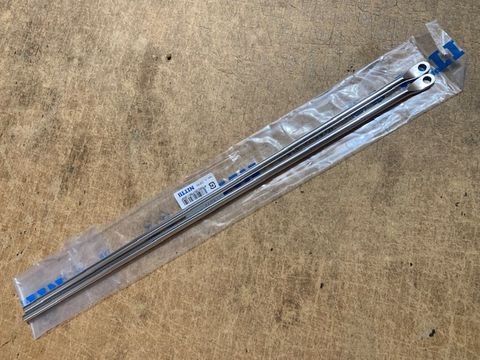

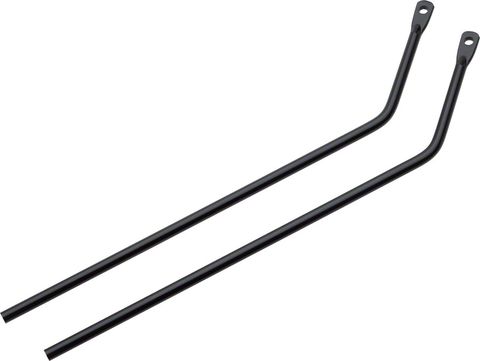

Nitto Alloy stays for rack 420mm (pair)

This rack is designed for light loads, or to support a handlebar bag.

-Hand-brazed from Chromoly
-Mounts to most bikes with drilled fork crown and incorporates with the caliper brake
-Compatible with some forks that feature mid-blade braze-ons dependent upon braze-on position
-Comes with additional set of braze-ons
-Lower rack struts are 235mm at max extension

-Rack surface area: 19cm x 11cm / Weight: 340g

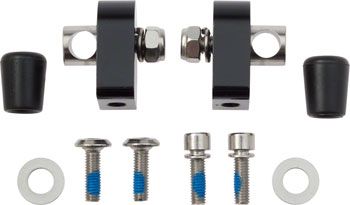

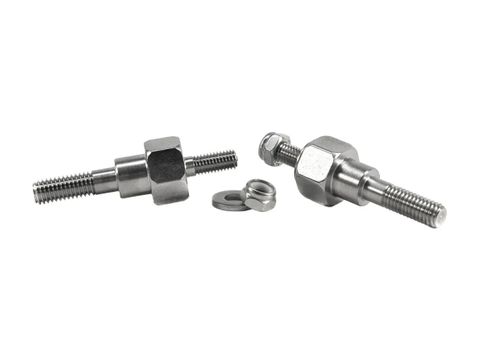

The Rack Adapter is a threaded mount for attaching front or rear racks directly to Paul brake pivots.

Rack Adapters replace the brake bolts that thread into the center of Paul brake pivots. The threaded posts that extend from them have 5mm threads and include a nylock nut.

Front mini rack with a host of braze-ons for your gadgets.

Extra long tang is bent for mounting to caliper brake bolt.

P-Clamps and other hardware included.

Compact but wide bag supporting works well for larger bar bags like the Ostrich F-702. Installs onto a fork's mini-rack mounts or via P-Clamps if your fork doesn't have those mounts.

- Aluminum construction
- Black
- Platform: 26cm x 30cm.
- 10kg load capacity

Great little aluminum rack. Perfect for strapping a Wald basket to, or on its own.

Stainless hardware, includes mounting tang and spacers so that you can clear the fork leg when you mount to the eyelets on the backside of your fork.

Works well with a set of P-clamps as well.

Platform measures 240mm x 130mm, eyelet to bottom of rack is 365mm.

Redesigned with eyelets for accessories and taller tombstone (backstop).

The weight limit for the Lucas 3 is 10kg/22 lbs.

Great little aluminum rack. Perfect for strapping a Wald basket to, or on its own.

Stainless hardware, includes mounting tang and spacers so that you can clear the fork leg when you mount to the eyelets on the backside of your fork.

Works well with a set of P-clamps as well.

Platform measures 240mm x 130mm, eyelet to bottom of rack is 365mm.

Redesigned with eyelets for accessories and taller tombstone (backstop)

The weight limit for the Lucas 3 is 10kg/22 lbs

Aluminum version of the Deluxe Porteur Rack

– The rack has a 12 x 14.2" platform.

– This updated version has attachment points for mini rack eyelets for added stability and safety (bikes do not have to have mini rack eyelets to use this rack)

– Rack is height adjustable and mounts to the axle,but there is a workaround if you want to attach it to the fork tip eyelet.

– The horizontal strut under the platform will fit a Zimbale or Carradice roll bag and perhaps a pannier with narrowly space hooks.

10kg max load capacity

Weight approx 794g with hardware

Aluminum version of the Deluxe Porteur Rack

– The rack has a 12 x 14.2" platform.

– This updated version has attachment points for mini rack eyelets for added stability and safety (bikes do not have to have mini rack eyelets to use this rack)

– Rack is height adjustable and mounts to the axle,but there is a workaround if you want to attach it to the fork tip eyelet.

– The horizontal strut under the platform will fit a Zimbale or Carradice roll bag and perhaps a pannier with narrowly space hooks.

10kg max load capacity

Weight approx 794g with hardware

Front mini rack with a host of braze-ons for your gadgets. This one has wider-set stays to fit gravel forks like the Enve Adventure series.

Extra long tang is bent for mounting to caliper brake bolt.

P-Clamps and other hardware included.

If installing to a braze-on, the braze-on need to be about 140mm from the brake hole on the crown. If your braze-on is too low, you will need to install using P-clamps on the legs.

Front mini rack with a host of braze-ons for your gadgets. This one has wider-set stays (130mm) to fit gravel forks like the Enve Adventure series.

Extra long tang is bent for mounting to caliper brake bolt on fork crown.

Hardware included.

Fits best on forks where the caliper brake hole on fork crown is 140mm above the fork leg eyelets. P-clamps included for steel forks that don't have eyelets. (P-clamps usually don't fit on tear drop shaped fork legs.)

Includes two axle plates that attach to the legs of the rack, 2 pairs of nuts/bolts.
