Wheel Hubs

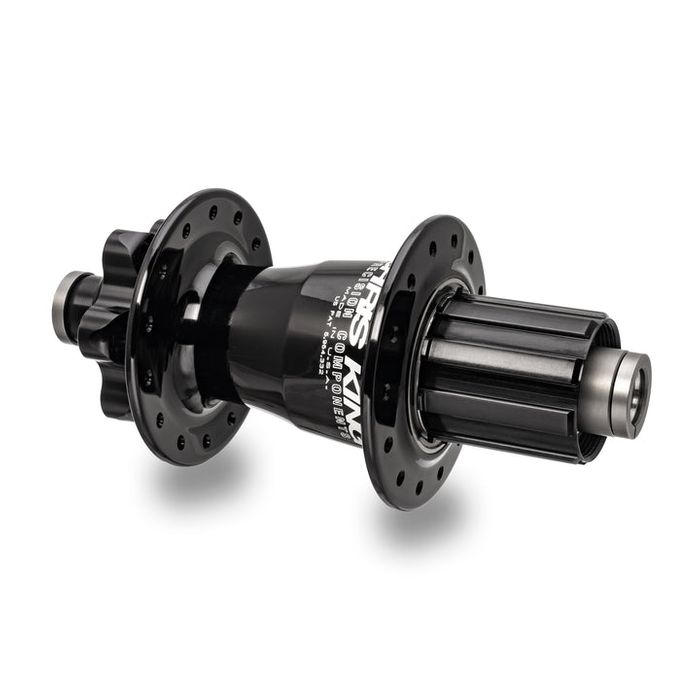

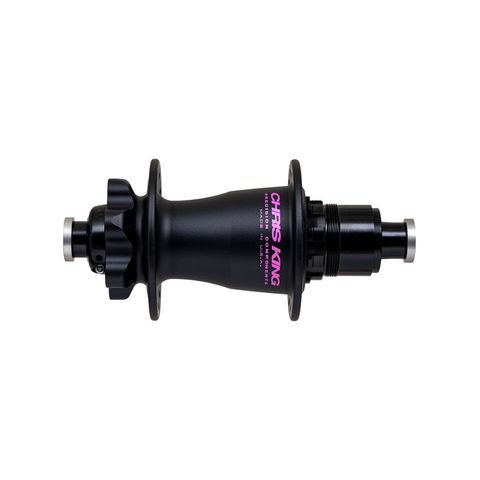

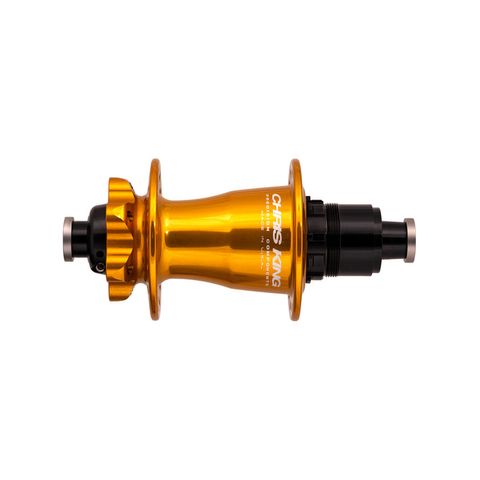

Chris King Red 157x12mm Thru Axle MTB Rear ISO Disc 32 hole hub

Our ISO 157 Disc rear hub brings the time-tested reliability and performance of Chris King hubs to downhill and heavy-duty freeride bikes featuring 157mm x 12mm thru axle rear dropouts This isn't a "new" hub, it's another great hub from King. Same performance. Same durability. Same expectations.

The responsibly light 344-gram hub spins an aluminum hubshell on our proven 19.5mm one-piece constant diameter axle (through the bearings to the dropouts). Our patented RingDrive engagement mechanism has 72 points of contact ensuring nearly instant power transfer while ratcheting through rock gardens, setting up for a drop-off, or pinning the final run-out towards the line. RingDrive is also responsible for that famous King buzz.

As with all Chris King hubs, the ISO 157 is completely user serviceable. Bearing preload can be adjusted without removing the wheel using a 2.5 hex-head wrench to fine-tune the adjusting clamp on the non-drive side. Thorough service can be performed on the hub bearings using a 2.5 hex-head wrench and penknife while our Hub Service Tool allows for full hub and driveshell disassembly and reassembly

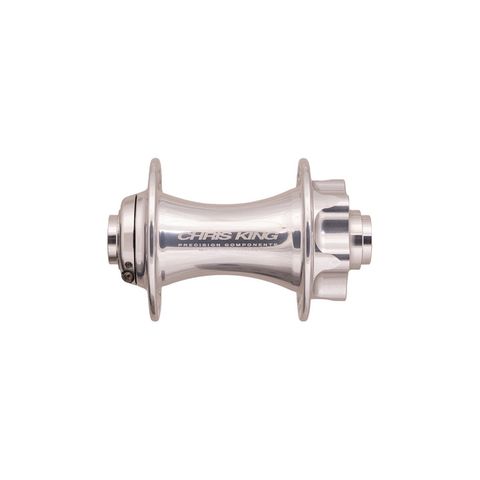

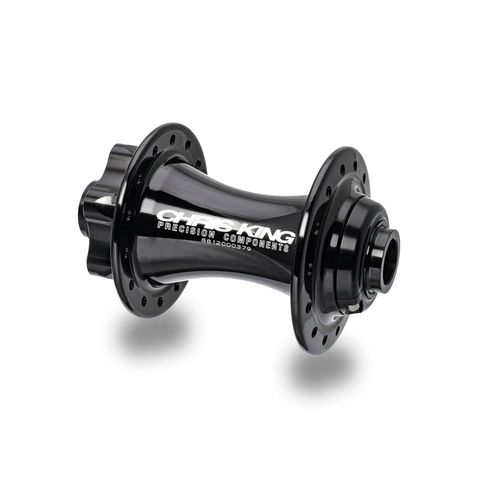

Chris King Black 15mm thru axle MTB Front ISO Disc SD 28 hole Hub

The ISO AB is specifically for “Boost” disc spacing forks with 110x15mm "Boost" or 110x20mm "Boost" axles. Using the larger diameter hubshell bearing the ISO AB is designed to tackle rough terrain and aggressive riding such as downhill and enduro. With the ISO AB hub your wheel will be future proof and ready to convert to the new 110x20mm axle with a simple insert swap, should that spec expand beyond downhill forks in the coming years.

Chris King BMX Hi Flange Silver 36h Front Hub

The patented RingDrive™ engagement mechanism has made the Chris King BMX hub the hub to beat at tracks all over the world. The positive, rapid engagement transfers your power instantly to the rear wheel, giving you the confidence you need to win.

The BMX driveshell rides on a premium quality needle bearing which turns directly on our super-heavy duty steel rear axle. The rear axle has threaded aluminum inserts that are easy to replace in case your threads get messed up, WITHOUT throwing away the axle. This hub is built to last a lifetime.

Chris King BMX hubs are sold with a 16T stainless steel King Cog. Additional stainless steel cogs are available from 12t-20t.

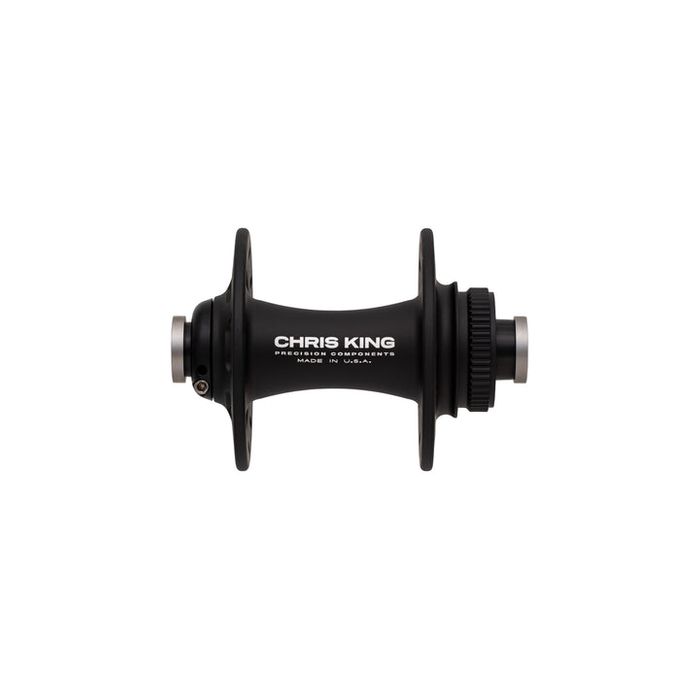

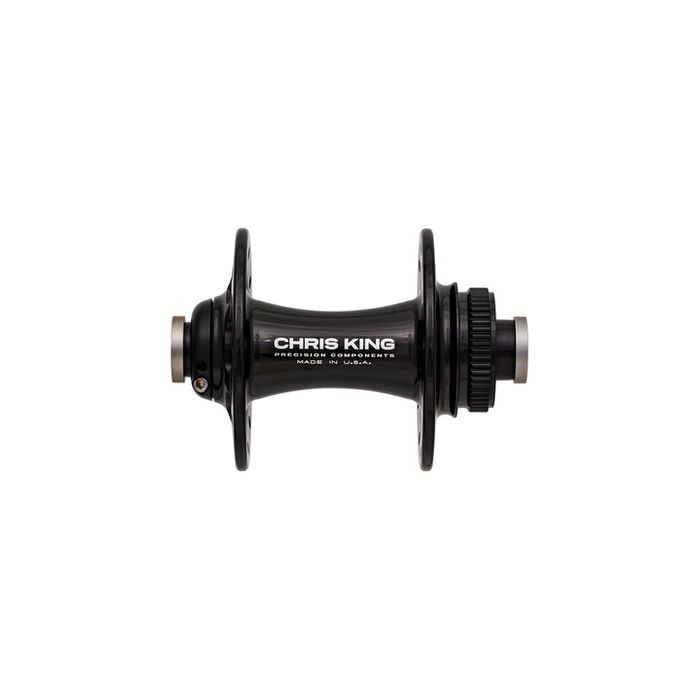

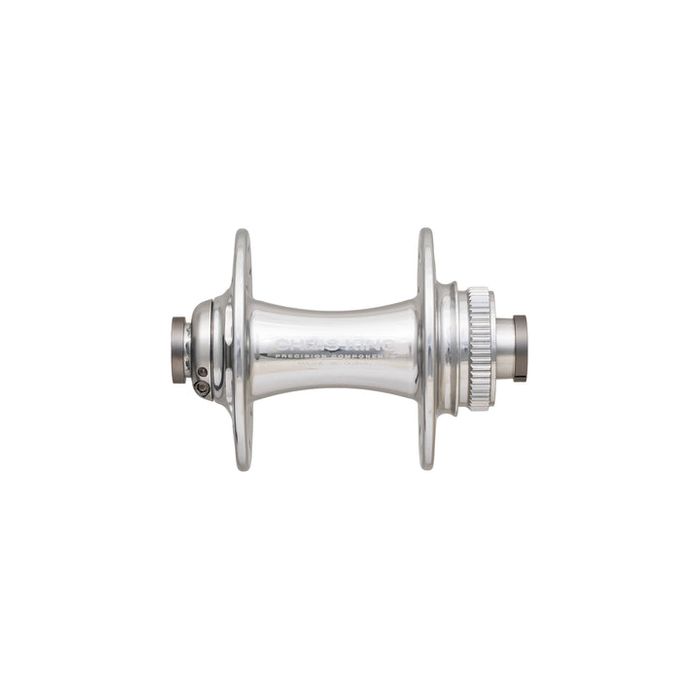

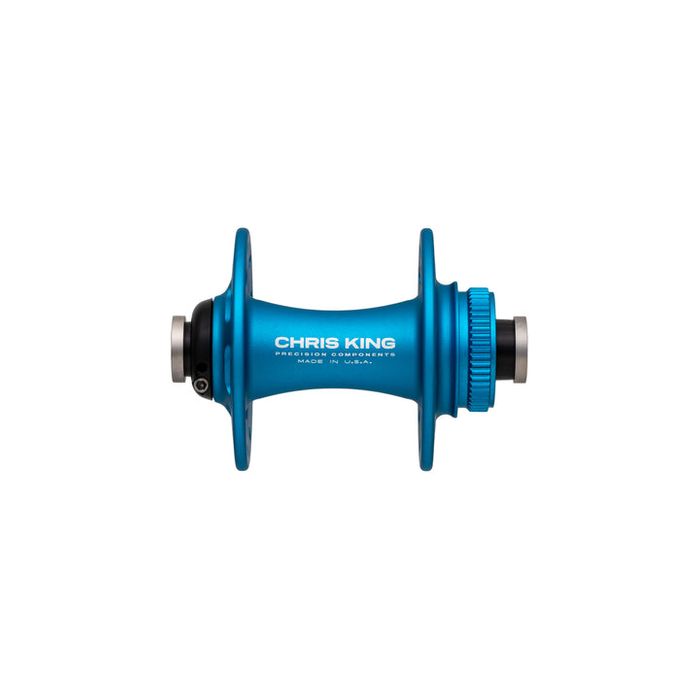

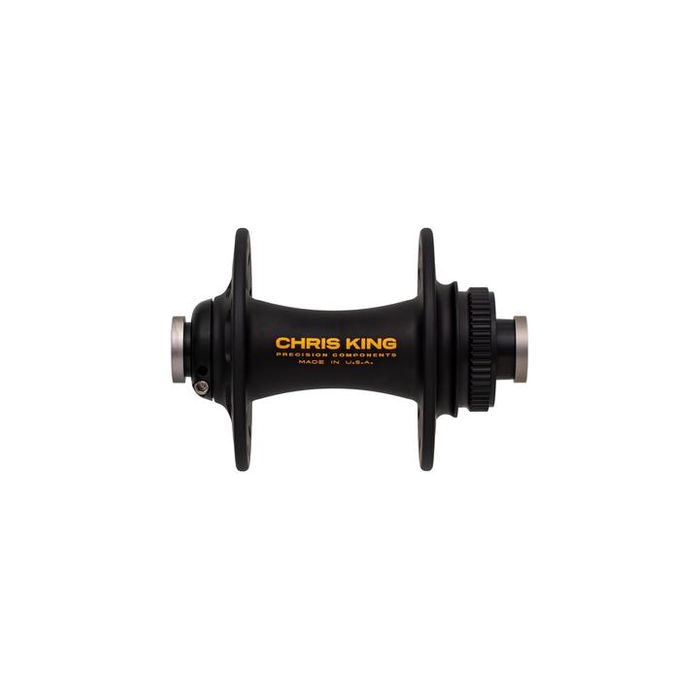

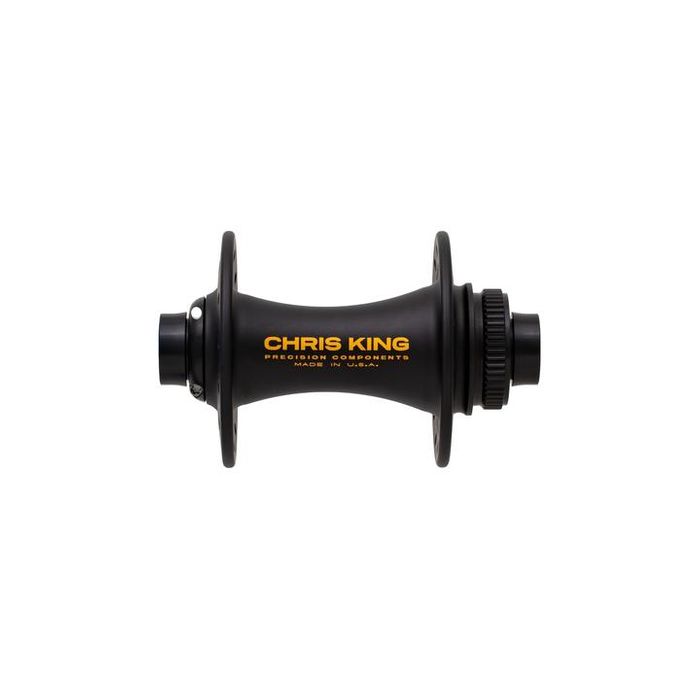

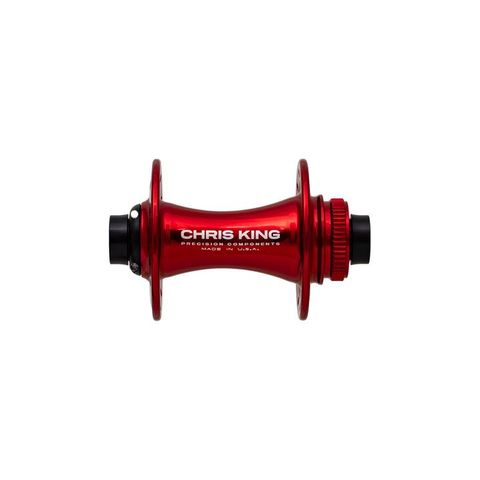

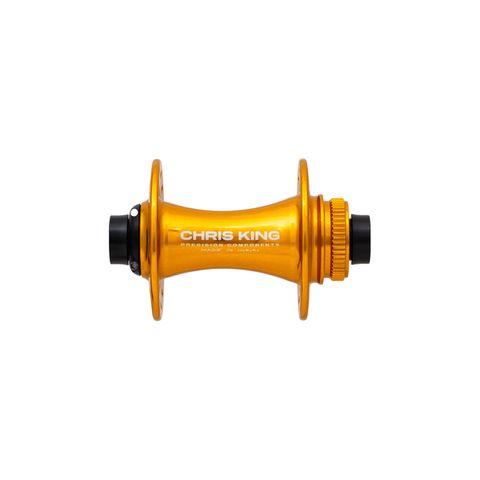

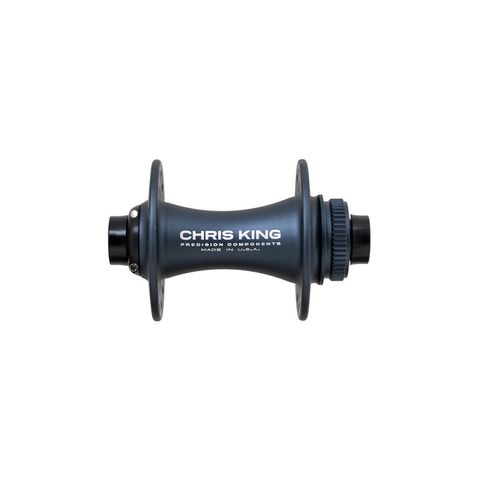

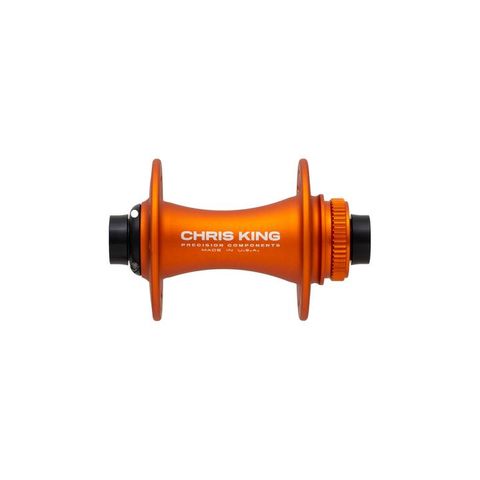

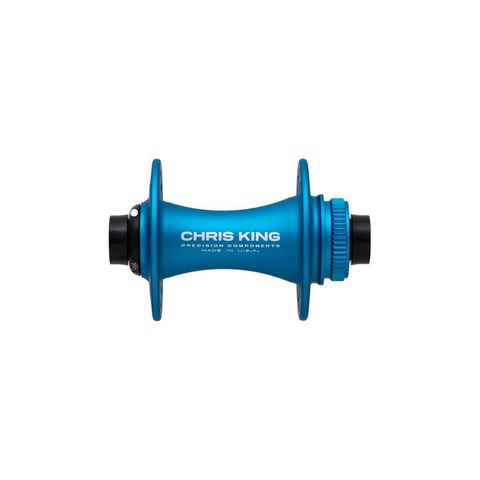

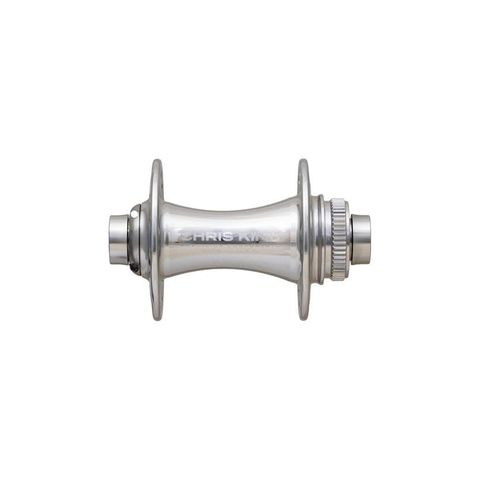

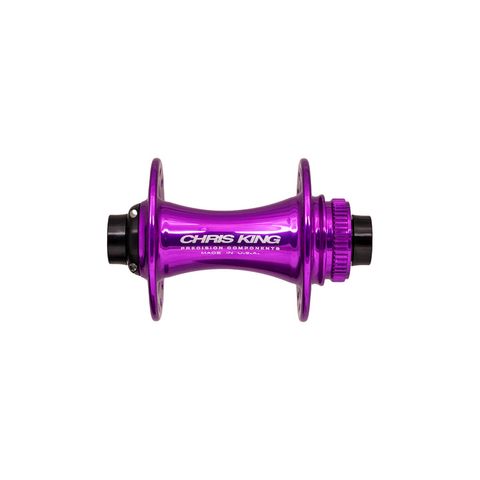

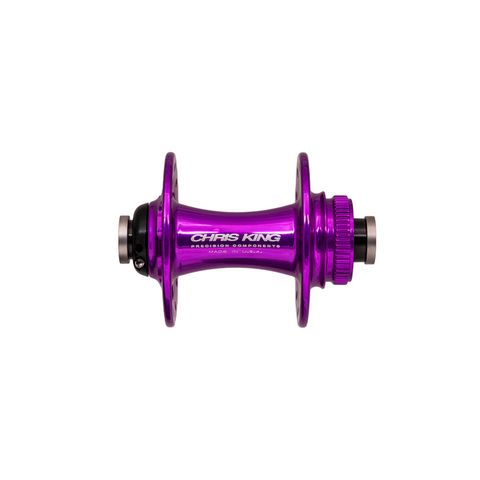

Chris King Boost Centerlock front hubs are designed as precision mountain tools. We use one-piece axles to provide a stiff hub with rail accurate steering. To thwart mud, water, and contaminants as you power through rough trails, Boost Centerlock hubs have heavy-duty bearing seals and snaprings, that provide superior protection with ultra low drag.

Our bearings have heat-treated, surgical grade steel races that are machined simultaneously to ensure perfectly matched inner and outer races. The quality and speed of our bearings is what sets us apart from the competition and they are what you will feel and notice on every single ride. As Chris King bearings break in they get faster with age. All our hubs and bearings are fully serviceable for years upon years of demanding use.

- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Wide flange placement
- Fits 110x15mm Boost
- Legendary made-in-house bearings
- Easily serviceable with a T10 Torx and pick or pen knife
- Completely re-buildable with our ISO Hub Service Tool

Chris King Boost Centerlock front hubs are designed as precision mountain tools. We use one-piece axles to provide a stiff hub with rail accurate steering. To thwart mud, water, and contaminants as you power through rough trails, Boost Centerlock hubs have heavy-duty bearing seals and snaprings, that provide superior protection with ultra low drag.

Our bearings have heat-treated, surgical grade steel races that are machined simultaneously to ensure perfectly matched inner and outer races. The quality and speed of our bearings is what sets us apart from the competition and they are what you will feel and notice on every single ride. As Chris King bearings break in they get faster with age. All our hubs and bearings are fully serviceable for years upon years of demanding use.

- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Wide flange placement
- Fits 110x15mm Boost
- Legendary made-in-house bearings
- Easily serviceable with a T10 Torx and pick or pen knife
- Completely re-buildable with our ISO Hub Service Tool

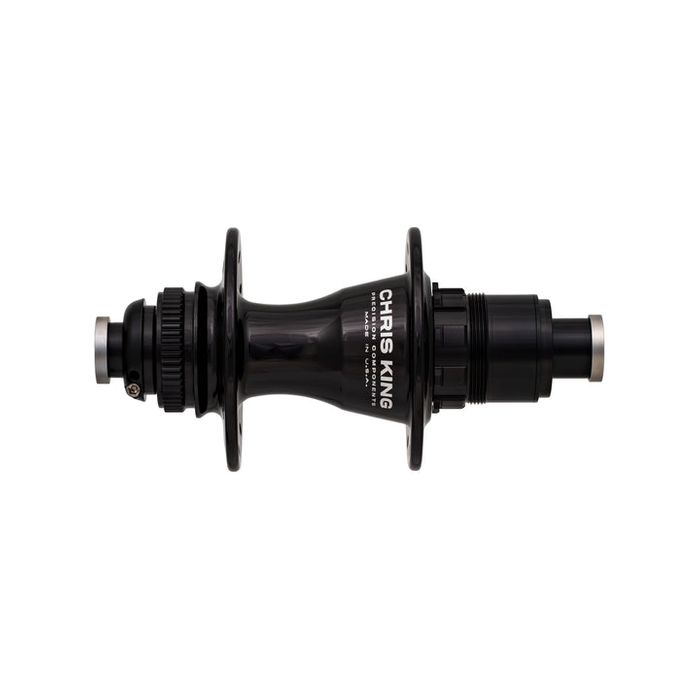

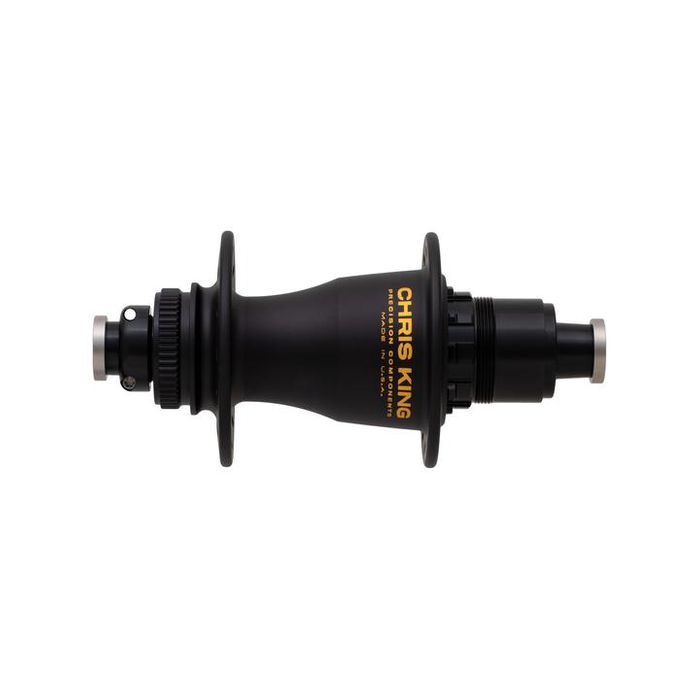

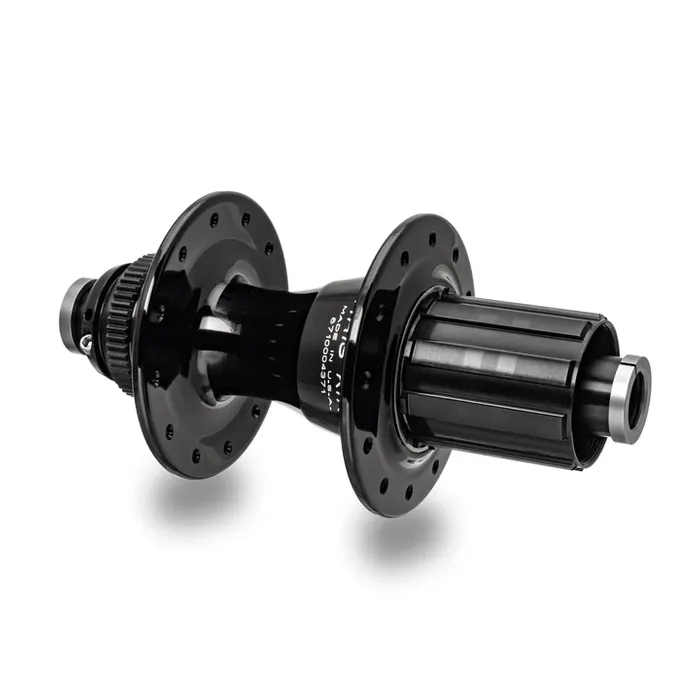

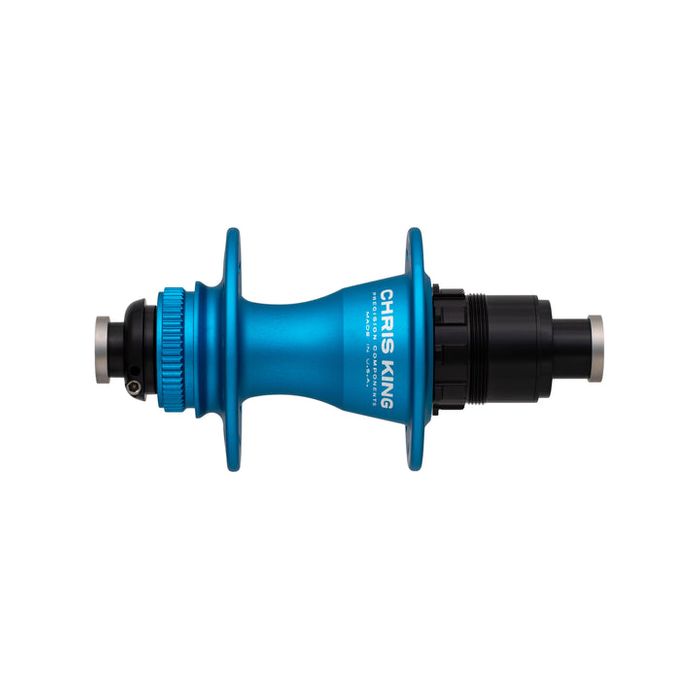

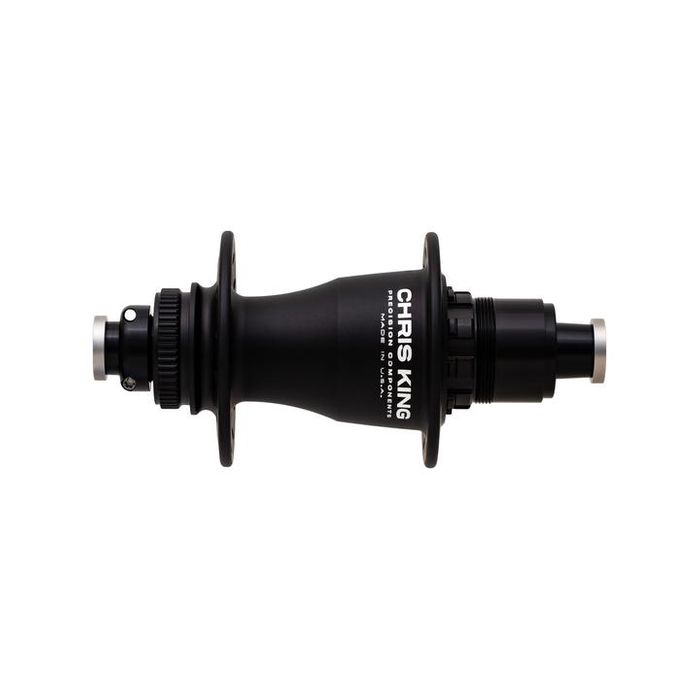

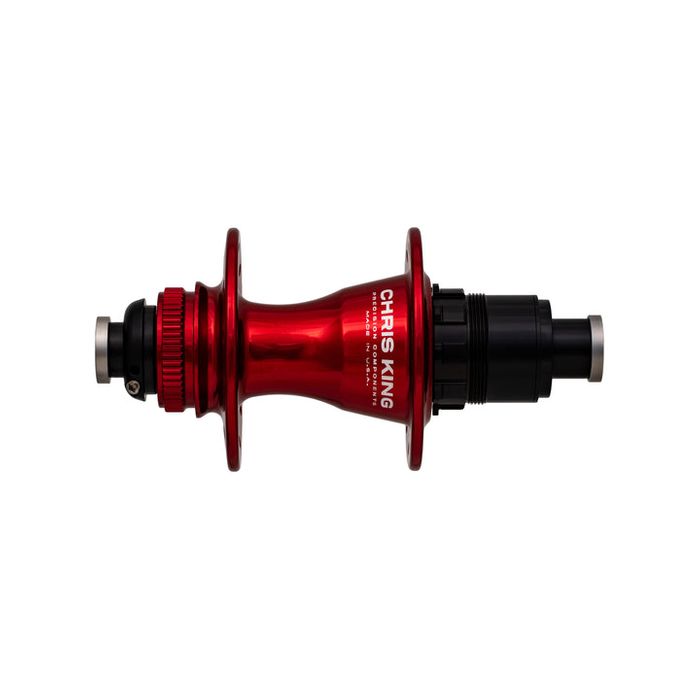

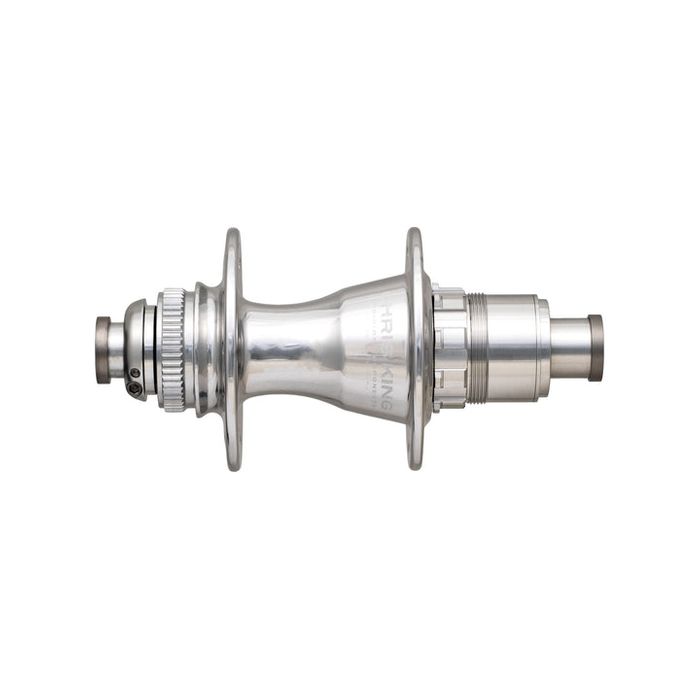

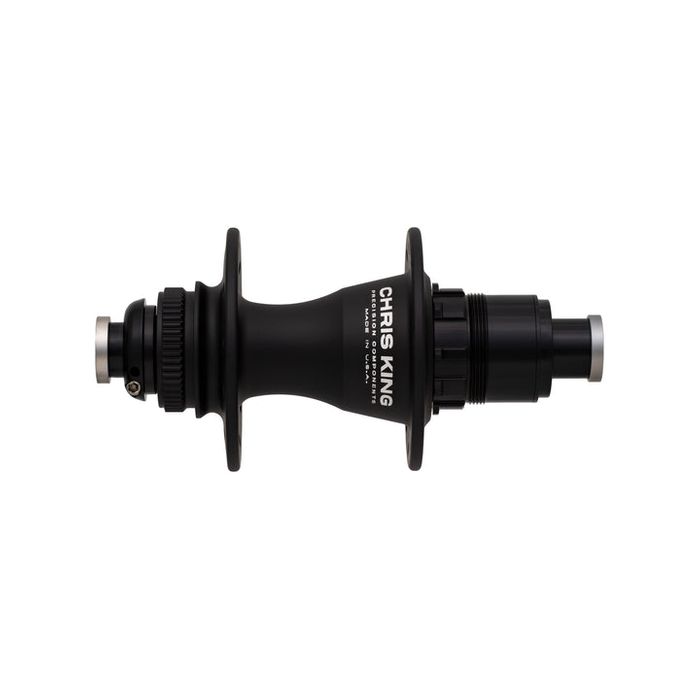

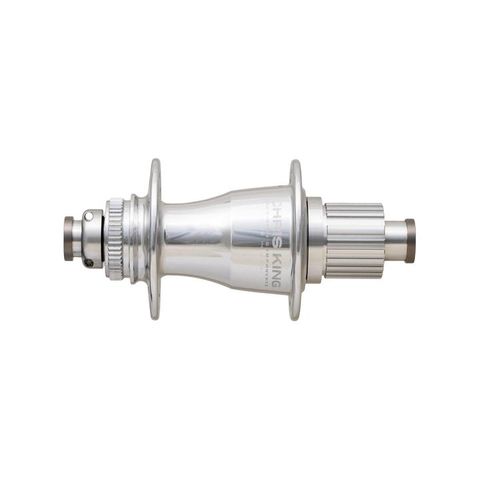

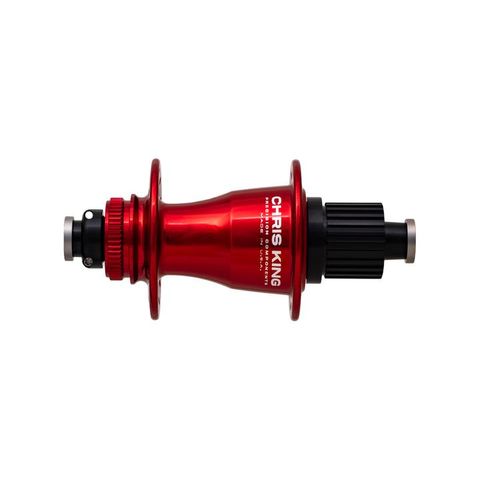

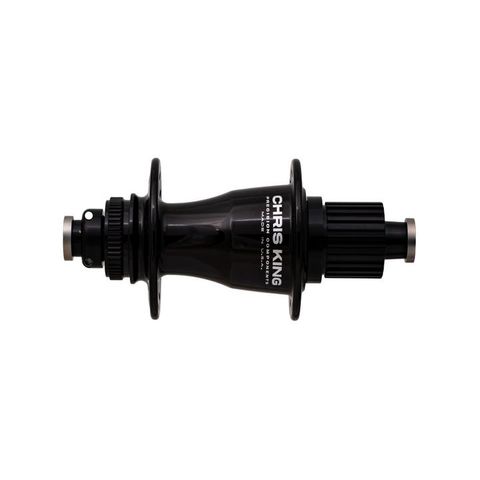

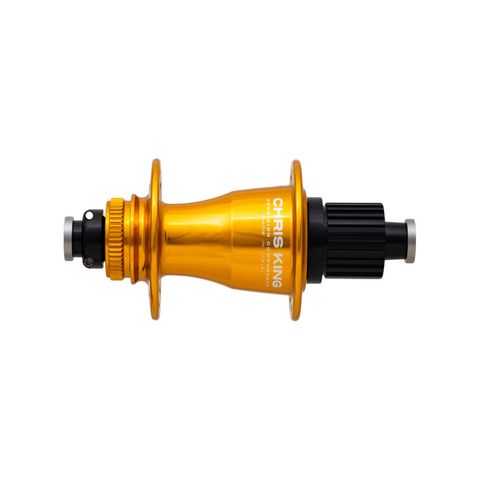

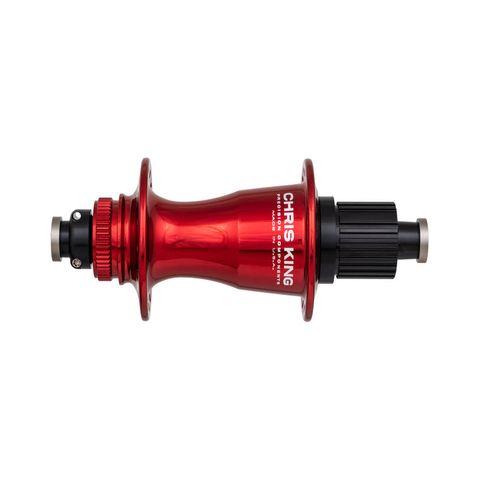

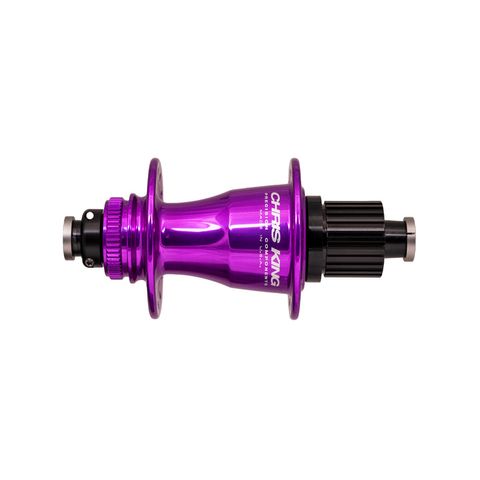

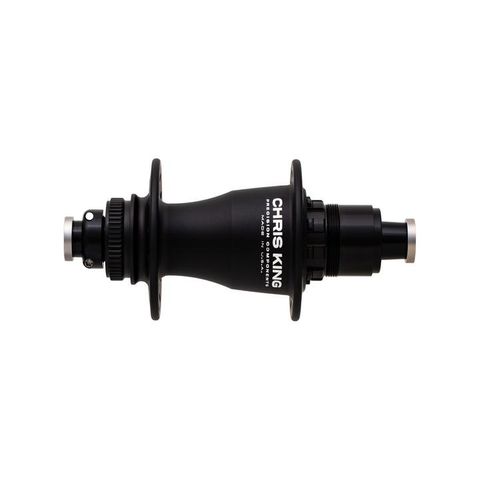

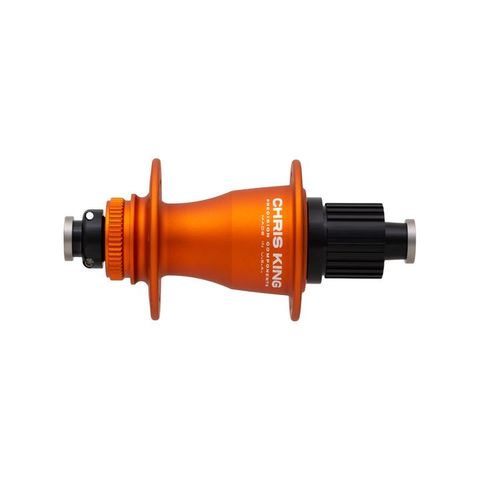

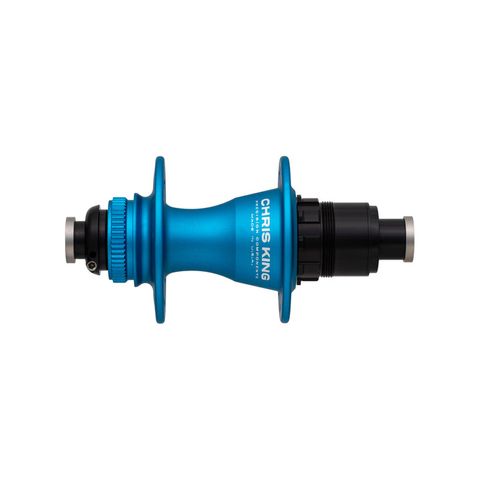

Chris King Boost Centerlock 148x12 rear hubs are designed as precision mountain tools. We use one-piece solid axles to provide a stiff hub that will help your suspension perform better and drive every watt of power into the dirt. To thwart mud, water, and contaminants as you power through rough trails, Boost Centerlock hubs have heavy-duty bearing seals, and a threaded driveshell seal ring.

Our bearings have heat-treated, surgical grade steel races that are machined simultaneously to ensure perfectly matched inner and outer races. The quality and speed of our bearings is what sets us apart from the competition and they are what you will feel and notice on every single ride. As Chris King bearing races break in they get faster with age. All our hubs and bearings are fully serviceable for years upon years of demanding use.

The patented Chris King RingDrive with 72-points of simultaneous-engagement will get your power to the ground fast, provide unmatched engagement, and give you that legendary Chris King angry-bee sound.

- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Canted flanges for stronger wheel builds
- Patented RingDrive system with 72 simultaneously interfaced points of contact for unmatched hub engagement
- Legendary made-in-house bearings
- Available with Micro Spline, HG or XD driveshell
- Easily serviceable with a T10 Torx and pick or pen knife
- Specifically designed for "BOOST" 148mm x 12mm axle standard

• 110x15mm Thru Axle
• Legendary Chris King bearings
• Updated hub shell shape with thicker, stronger flanges
• Symmetrical front hub flanges
• Hub flanges move outboard by 5mm to improve the spoke bracing angle and increase lateral stiffness

The R45 front hub is built to address our road and cross riders’ demands for Chris King performance in a lighter weight and more aerodynamic package. Defined by a narrow hub body and low flanges the R45 front hub is a sleek base for the fastest wheels.

Light
The R45 hubset is 20% lighter than our Classic hubset. We designed sleek new hubshell bodies and new 17 mm axles. That's 17 mm from dropout to dropout resisting deflection during cornering or when the power is full on. We designed a driveshell with a twin bearing design that responsibly removed as much weight as we could from the inner components. Even our patented RingDrive engagement system was redeveloped resulting in a quiet, fast-engaging 45-tooth stainless steel system unique to the R45 rear hub.

Fast
King designed and built a bearing specifically for the R45 hubset. These stainless steel sealed bearings are made in-house in Portland, Oregon. Our proprietary bearing design allows us to place more rolling elements per bearing meaning greater durability and precision. R45 bearings also feature lightweight, low-friction seals for fast rolling and can be easily serviced at regular intervals using only a single 2.5 mm hex wrench and penknife.

Weight
Front 102grams
Rear 215grams

Our high performance R45 Disc hubs are built to meet the requirements of the world’s most demanding road and cyclocross riders with the long-term performance, durability, and serviceability that you expect from Chris King components. We equip our R45 Discs with the same race proven 45 point RingDrive engagement system and exceedingly smooth in-house made bearings.

These hubs feature an exquisitely machined 6-bolt disc mount that melds current disc mount specifications with elegant design for a beautiful finish and seamless integration. The front hub retains traditional 100mm spacing while the rear hub is designed around 135mm spacing, which has been established as the industry standard for disc compatible road and cyclocross bicycles.

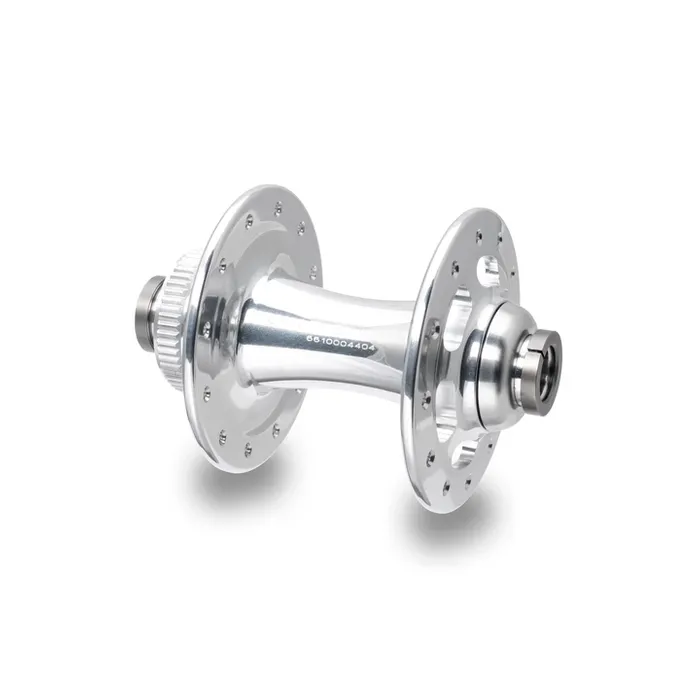

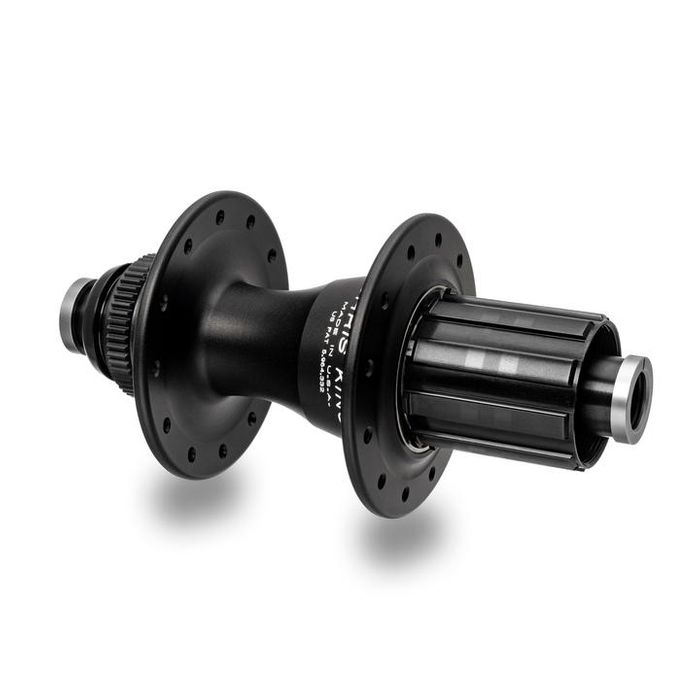

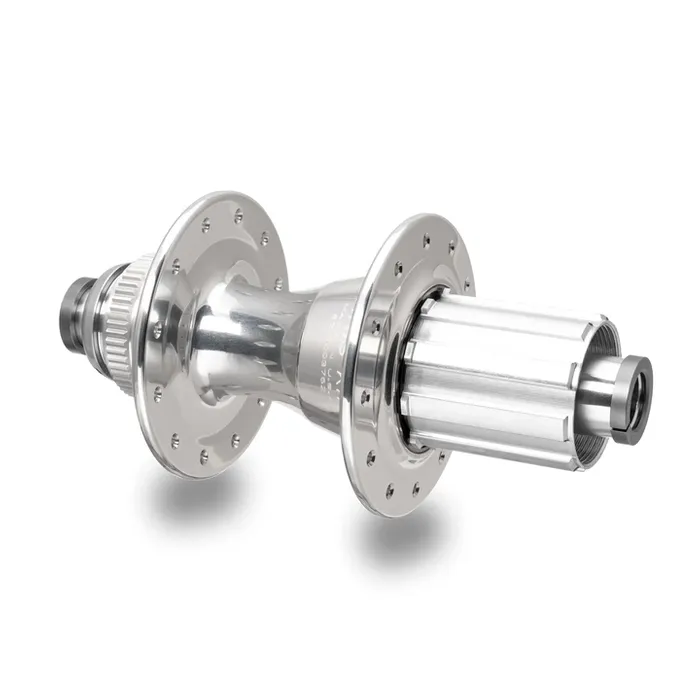

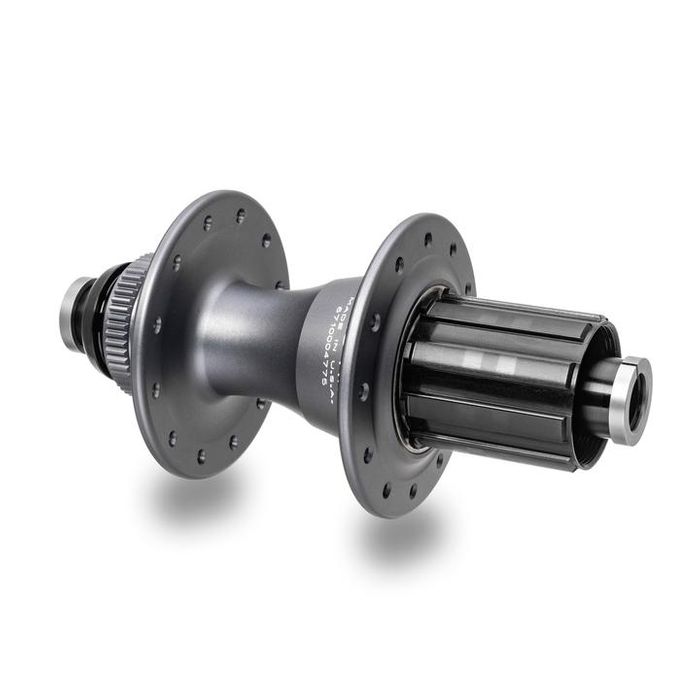

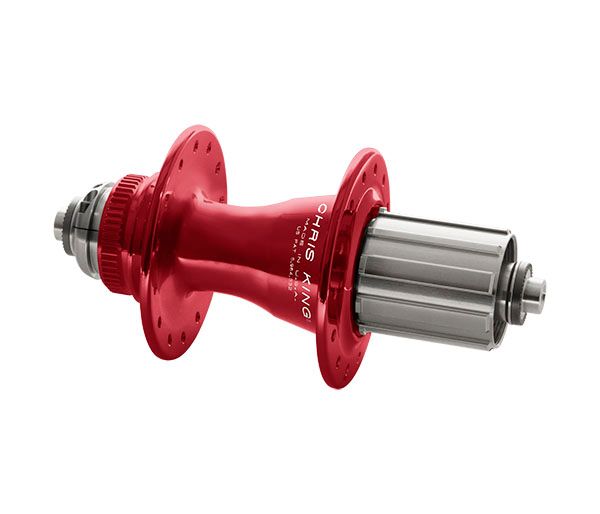

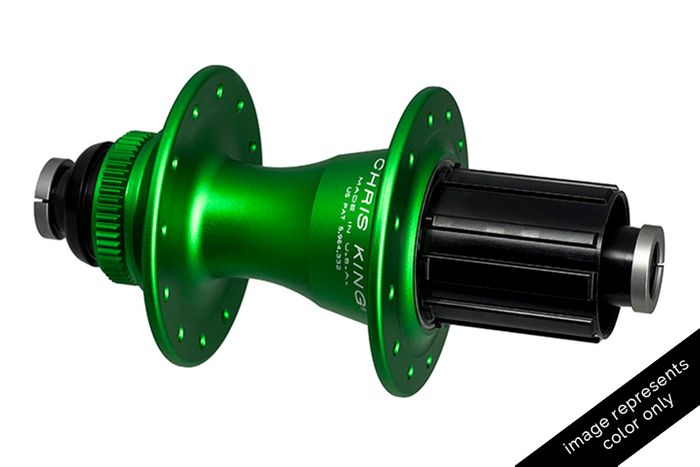

R45 Centerlock™ hubs combine our low-drag 45-tooth RingDrive™ system, a lightweight hub body, our legendary made-in-house bearings, and now *Centerlock compatibility to harness the power of disc brakes. The result is the undeniable combination of the control of disc brakes, the fast rolling speed of our bearings on long flats, and the superior responsiveness of our RingDrive™ engagement system out of the corners.

- Engineered, manufactured and assembled in Portland, Oregon USA
- Legendary made-in-house bearings
- 5-year built-to-last warranty
- Patented RingDrive™ system with 45 simultaneously engaged points of contact for virtually drag free engagement
- Easily convertible axles 135mm x 10mm QR or 142mm x 12mm thru axle rear.
- Easily serviceable and completely re-buildable with our R45 Hub Service Tool
- Ceramic bearing upgrade available

*Centerlock is a proprietary mounting system that requires a Shimano lock ring to complete installation of rotor. Chris King R45 Centerlock hubs are compatible with the following Shimano lock rings:

Front:
(Y8K198010) – Typically supplied with genuine Shimano rotor.
(Y26N98030) – Typically sold as an after market part.
Rear:
(Y26N98030) – Typically sold as an after market part

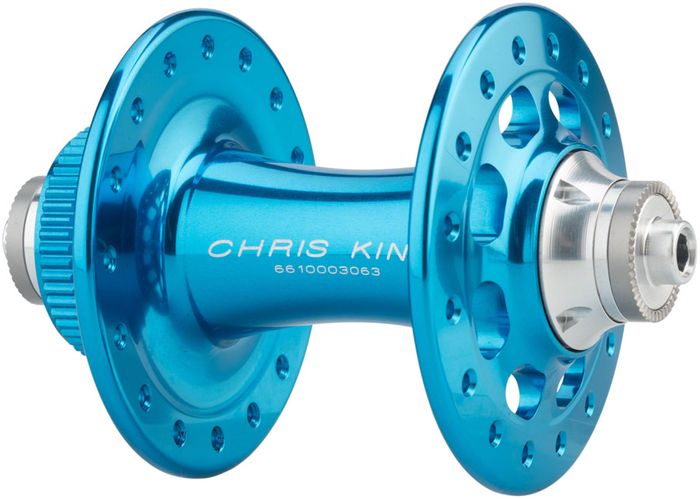

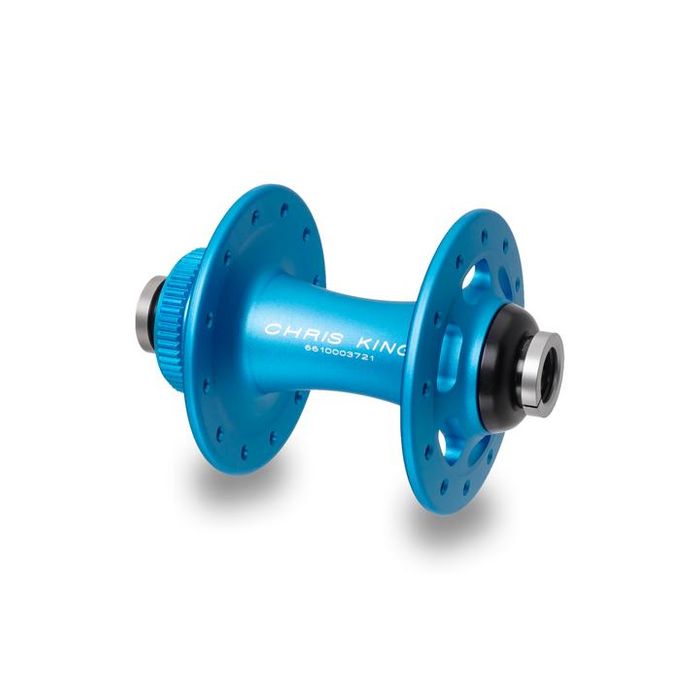

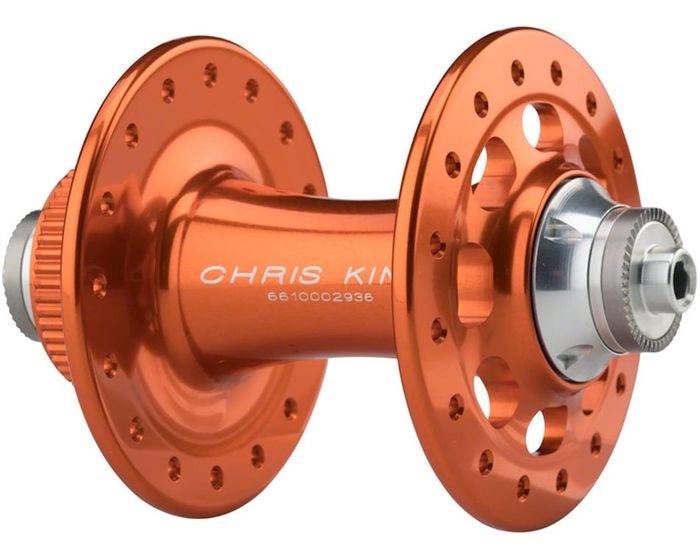

R45 Centerlock™ hubs combine a lightweight hub body, our legendary made-in-house bearings, and now *Centerlock compatibility to harness the power of disc brakes. The result is the undeniable combination of the control of disc brakes, the fast rolling speed of our bearings.

- Engineered, manufactured and assembled in Portland, Oregon USA
- Legendary made-in-house bearings
- 5-year built-to-last warranty
- Easily convertible axles 100mm x 9mm QR or 100mm x 12mm thru axle front options.
- Easily serviceable and completely re-buildable with our R45 Hub Service Tool
- Ceramic bearing upgrade available

*Centerlock is a proprietary mounting system that requires a Shimano lock ring to complete installation of rotor. Chris King R45 Centerlock hubs are compatible with the following Shimano lock rings:

Front:
(Y8K198010) – Typically supplied with genuine Shimano rotor.
(Y26N98030) – Typically sold as an after market part.
Rear:
(Y26N98030) – Typically sold as an after market part

Chris King R45D Navy 24h Front Disc

• 148x12mm Thru Axle
• Legendary Chris King bearings (Steel or Ceramic)
• Updated hub shell shape with thicker, stronger flanges
• Hub flanges move outboard by 3mm to improve the spoke bracing angle and increase lateral stiffness
• Improved bracing angle to put the stiffness of a 29” wheel on par with that of a 27.5” wheel on a 142mm hub
