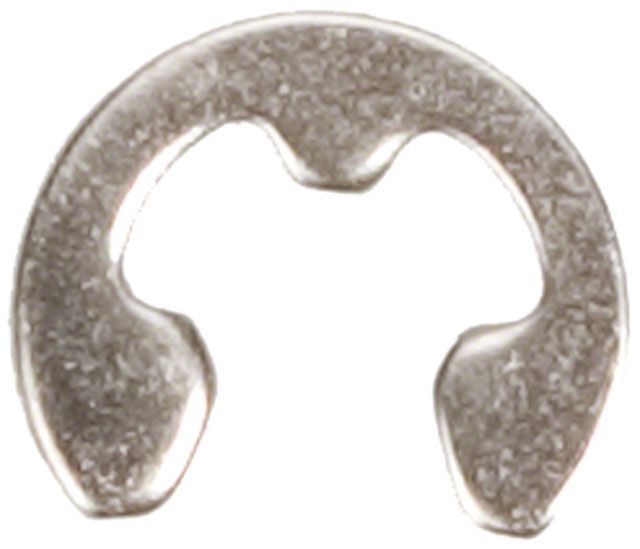

Surly Tuggnut Retaining Clip
Description
Genuine Surly replacement parts.
Webshops and Bike shops
You may also be interested in...
-
An easy-to-install, adjustable chain retention-thing for 1 x drivetrains. It'll keep an eye on that chain so you don't have to.
Stock Level:Out Of StockStock Level:Out of Stock$73.00 (RRP)POA -
Stock Code:WTCHBR104-3234
The 104 BCD bashring can be added to the crankset to protect a 104 or 64 BCD chainring.
- Properly sized to fit 104 or 64 BCD chainring
- Two sizes for ultimate protection: smaller 26-30t (132 mm diameter) and mid-sized 32t-34t (148 mm diameter).
Compatibility
These are for use with 104 BCD chainrings or 64 BCD chainrings on 104 BCD cranksets
These are compatible with all triple 104 BCD cranksets and mount in the “big ring” position
They are compatible with double cranksets that have flat outfacing mounting tabs, like XTR M980. However, many 2x specific cranks, like Shimano XT M785, have a profiled outer surface on the mounting tab so our bashring cannot be mounted on that non-flat surface.
These work great with the 104 BCD Elliptical 32t ring. They will work with the 34t as well, but at the max diameter a few teeth will extend just beyond the bashring.
Chainring bolt requirements for this bashring
104 x 30t - 10mm bolts are required for use with the bashring.
Other 104 BCD sizes - you will need 8mm bolts (stock size that comes on 3x cranksets holding the middle and big rings on). Wolf Tooth does not make these.
When using with the 64 BCD you will need 6mm bolts to mount the bashring. Note: Orient the head of the bolt to the inside to provide clearance for the chain (bolts will go in backwards).Stock Level:Out Of StockStock Level:Out of Stock$78.96 (RRP) -
Stock Code:WTCTGNARWOLF-BRAZE

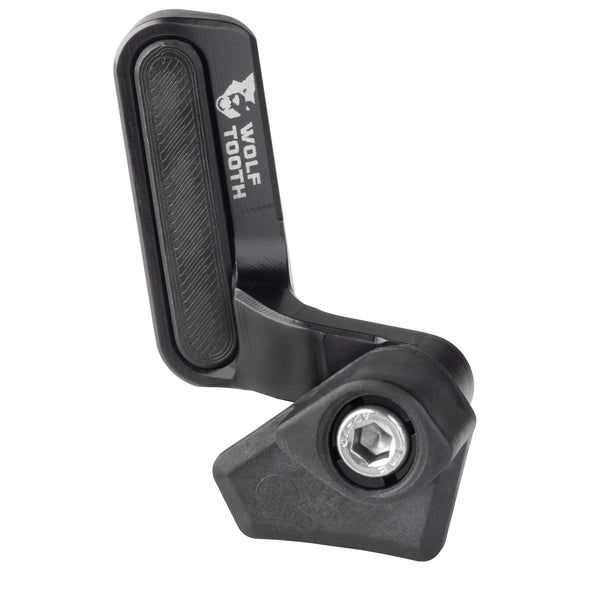

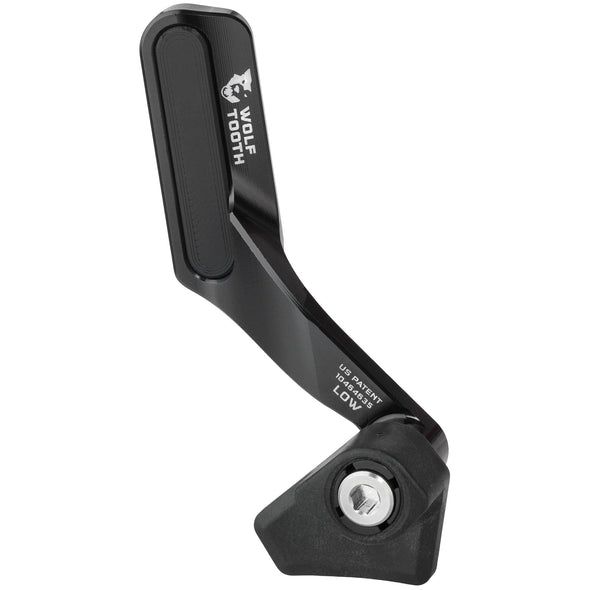

If you are a 1X CX, gravel or road rider and can't afford to drop a chain, the Wolf Tooth GnarWolf® braze-on chainguide is for you. Designed specifically around 1x wide/narrow chainrings the GnarWolf will keep your chain glued to your chainring in the roughest and muddiest of conditions. No other CX chainguide is as rigid or as easy to adjust as the GnarWolf.
- Patented infinite chainline adjustment between 45mm and 51mm via an elliptical expanding mandrel. No shims required.
- Infinite vertical adjustment between 34t and 46t for round and oval chainrings
- Loosen one screw to flip the guide out of the way for easy chain removal without losing any of the guide's adjustments
- All adjustments made with common 4 mm hex key
- Designed for the rigors of the muddiest CX course or roughest gravel riding, the Wolf Tooth engineers made this guide extremely stiff and strong while keeping it light at 44g
- Specific guide shaping is optimized for use with elliptical/oval and round chainrings
- Installation takes just a few minutes – no need to remove your crank arms
Compatibility
- Designed to fit on any bike with an integral braze-on mount. If you have a round seat tube with no braze-on mount, you can buy a braze-on adapter
- Designed to accommodate chainlines from approx. 45mm to 51mm
- Minimum distance of 10 mm between crank and center of ring
- See photos above as installation guide
- Optimized for use with both elliptical and round 34t-46t chainrings
- For 1x use onlyStock Level:Out Of StockStock Level:Out of Stock$138.25 (RRP) -
Stock Code:SLCT-CH9994Stock Level:Out Of StockStock Level:Out of StockPOA
-
Stock Code:BTCT-BOM-010Stock Level:Out Of StockStock Level:Out of StockPOA
