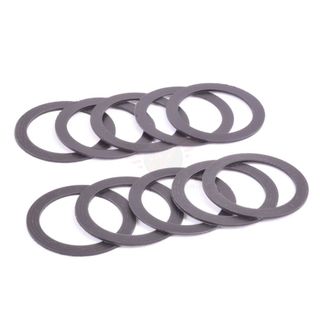

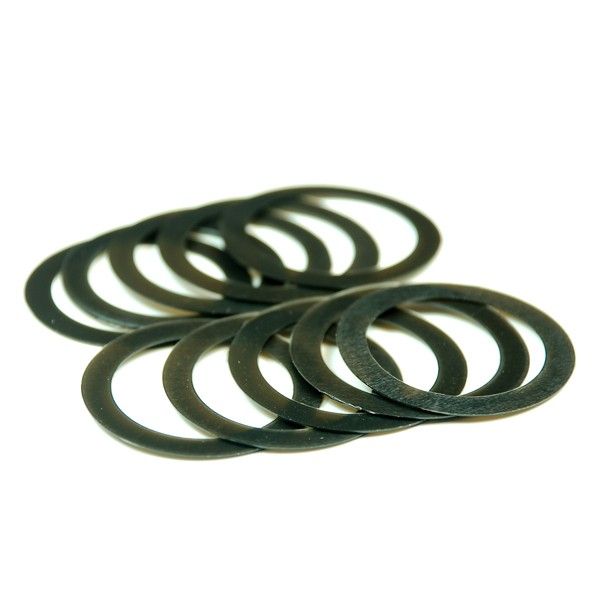

WHEELS MFG 30mm ID BB SPACERS
Used to adjust crank chainline or take up any slack when using 30mm, 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.
- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin
Used to adjust crank chainline or take up any slack when using 30mm, 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.
- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin
Webshops and Bike shops
Related Products
-
Description

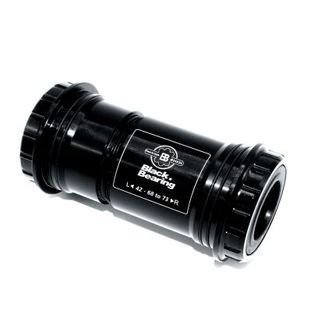

New Eccentric bottom bracket for use in BB30 frames. Convert your BB30 frame to a single-speed setup with our simple to use bottom bracket.
Compatible with 24mm (Shimano, FSA, Etc.) cranks. Enduro Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum is superior in function and durability to plastic. Fully serviceable.
- Enduro ABEC-5 Angular Contact sealed bearings
- Fits BB30 bottom bracket shell widths from 68mm to 73mm
- Use with 24mm (Shimano, FSA, Etc.) cranks
** IMPORTANT NOTE: Our Eccentric bottom brackets for BB30 frames will not work with frames that do not have removable c-clips in the shell. If your frame has a shell with a molded step that the bearings press up against, our EBB will not completely fit in to the shell. -
Description
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notch -
Description
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing SRAM DUB Compatible cranks in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer -
Description
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers -
Description
Wolf Tooth T47 External Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm T47 bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 (24mm) and 46-12 (29mm DUB, 30mm) spline bottom bracket tools
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers
