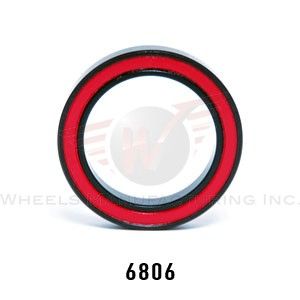

Wheels MFG 6806 Zero Ceramic BB30 single

You may also be interested in...

•

  ×

  Stock Code:

  WMBB-PF30-OUT-1

  Wheels Mfg PF30-Outboard BB Shimano Blk

  Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket is designed for installing 24mm (Shimano, FSA, Etc.) cranks into PF30 frames without the need for any adapters.

  Weight: 153g
  Made in the USA
  Choose from Black or Red anodized machined aluminum cups
  Enduro ABEC 3 sealed bearings
  Dual silicone seal keeps the contamination out for longer life
  Will accept current 24mm (Shimano, FSA, Etc.) cranks
  Bottom Bracket Shell Width (mm): 68mm - 73mm
  Bottom Bracket Shell I.D.: 46mm

  Stock Level:

  In Stock

  Stock Level:

  In Stock

  $215.25 (RRP)

  Add To Cart

  Qty:
•

  ×

  Stock Code:

  WMBB-PF30A-OUT-SHIM

  Wheels Mfg PF30A Outboard BB Shimano

  The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

  Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

  **Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately. **

  - Bottom Bracket/Frame Interface: Cannondale PF30A
  - Bottom Bracket Shell Width (mm): 73mm
  - Bottom Bracket Shell I.D.: 46mm
  - Crank Spindle Diameter: 24.00mm
  - Tool Pattern: 44mm x 16 notch

  Stock Level:

  In Stock

  Stock Level:

  In Stock

  $215.25 (RRP)

  Add To Cart

  Qty:
•

  ×

  Stock Code:

  WMBB-T47-BB-SRAM-BB

  Wheels MFG T47 BB SRAM Black

  T47 threaded BB cups for T47 frames and 22/24mm spindle diameter SRAM GXP cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

  T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

  Bottom Bracket Includes:

  BB Cups with bearings
  2 - Silicone dust seals
  2 - 0.5mm crank spindle spacers
  2 - 1.0mm crank spindle spacers
  1 - 24mm ID wave washer

  Bearings: Enduro ABEC-3
  Bottom Bracket/Frame Interface: T47
  Bottom Bracket Shell Width (mm): 68mm - 132mm
  Bottom Bracket Shell I.D.: 47x1.0mm Threaded
  Crank Spindle Diameter: 22/24mm
  Over Bearing Width: 91.7mm in 86.5mm wide shell*
  Tool Pattern: 48.5mm x 16-notch

  Stock Level:

  2

  Stock Level:

  2

  $260.00 (RRP)

  Add To Cart

  Qty:
•

  ×

  Stock Code:

  WMBB-ITA-30MM

  Wheels MFG BSA Italian Thread 30mm

  The solution for running a 30mm spindle crankset in a Italian threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

  Notes:

  - For use with 30mm diameter cranks with a spindle length of at least 106mm when used in a 70mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
  - Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

  Stock Level:

  2

  Stock Level:

  2

  $252.00 (RRP)

  Add To Cart

  Qty:
•

  ×

  Stock Code:

  BBBB-BSA-68/73-P-B5

  BlackBearing B5 BSA Praxis

  The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.

  The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:

  - minimizes possible cracks
  - greater protection to the bearing extending its useful life
  - an easier replacement of the bearing.

  CNC machined aluminum.

  Stock Level:

  1

  Stock Level:

  1

  $121.59 (RRP)

  Add To Cart

  Qty:
