Wheels MFG BB86 > 28/30mm PRAXIS
Description
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 28/30mm spindle Praxis - Compatible cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

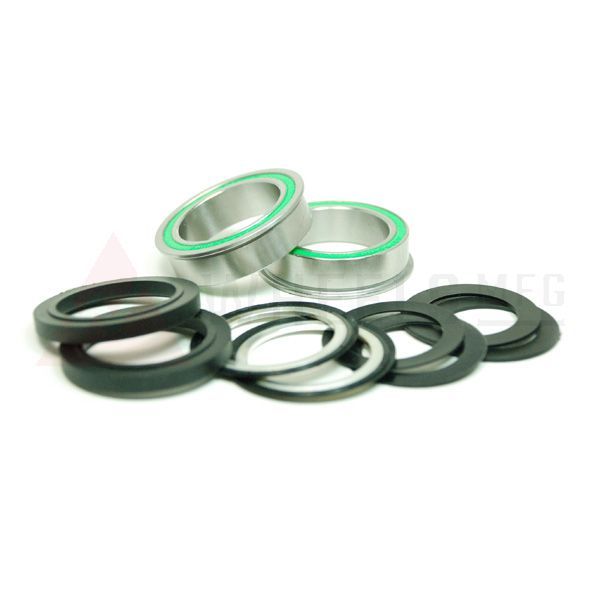

Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals
(1) - 28mm spacer inse
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB-ROAD-17Stock Code:WMBB-BB-ROAD-16Stock Code:WMBB-BB-ROAD-14
Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 5 Angular Contact sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks$240.00 (RRP)$199.00 (RRP)$240.00 (RRP) -
Stock Code:WMBB-PF30-OUT-11
Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro Ceramic Hybrid bearings is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro Ceramic Hybrid sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mmWas:$294.00 (RRP)Now:$143.00 (RRP)Price:$143.00 (RRP)Add To Cart
-
Stock Code:WMBB-PF30-OUT-29MMStock Code:WMBB-PF30-OUT-29MM-3
By popular demand, we've added this PF30 with outboard bearing BB for use with 29mm spindle SRAM DUB cranksets when used in PF30 frames. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 73mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16 notch$235.00 (RRP)$235.00 (RRP) -
Stock Code:WMBB-T47-OUT-29MM-9
T47 threaded BB cups for T47 frames and 29mm spindle diameter SRAM DUB compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
Bearings: Enduro ABEC-3
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16-notch$245.00 (RRP) -
Stock Code:WMBB-BB-MTB-7Stock Code:WMBB-BB-MTB-9Stock Code:WMBB-BB-MTB-1Stock Code:WMBB-BB-MTB-3Stock Code:WMBB-BB-MTB-1-1Stock Code:WMBB-BB-MTB-1-3Stock Code:WMBB-BB-MTB-1-6Stock Code:WMBB-BB-MTB-1-7Stock Code:WMBB-BB-MTB-1-5Stock Code:WMBB-BB-BSA29-BBStock Code:WMBB-BB-BSA29-BB-1Stock Code:WMBB-BB-BSA29-BB-3Stock Code:WMBB-BB-BSA29-BB-4Stock Code:WMBB-BB-BSA29-BB-5Stock Code:WMBB-BB-BSA29-BB-6Stock Code:WMBB-BB-BSA29-BB-7Stock Code:WMBB-BB-BSA29-BB-9Stock Code:WMBB-BB-BSA30-ACStock Code:WMBB-BB-BSA30-BBStock Code:WMBB-BB-BSA30-CERStock Code:WMBB-BB-BSA30-BB-12
Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
*For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).
*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).Expected Date:02 March 2026Expected Date:02 March 2026$199.00 (RRP)$240.00 (RRP)$199.00 (RRP)$240.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$199.00 (RRP)$472.00 (RRP)$199.00 (RRP)
