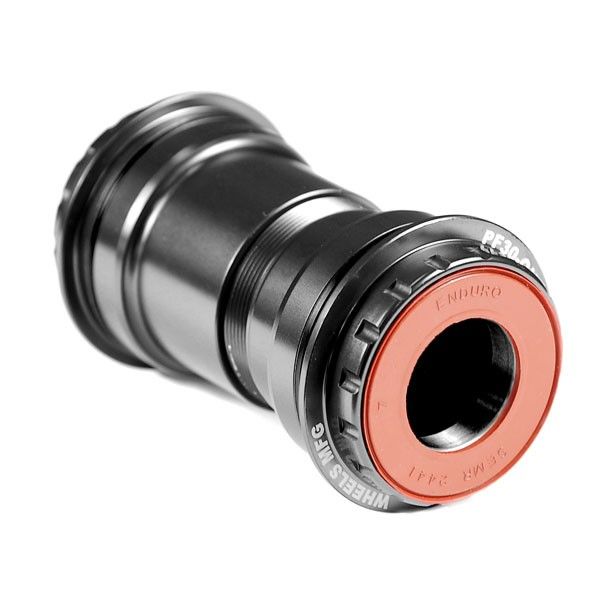

Wheels Mfg PF30-Outboard A/C BB Shim Blk
Description
Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro ABEC 5 angular contact bearings is designed for installing 24mm (Shimano, FSA, Etc.) cranks into PF30 frames without the need for any adapters.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 5 angular contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-PF30-BB
Wheels MFG Pressfit 30 Bottom Braket
- Economical and reliable BB to fit Pressfit 30-specific frames (46mm ID)
- Machined aluminium cups with 6806 (30mm ID) sealed bearings and exterior seal system
- Adaptable for 61mm to 86.5mm shell widths
- Will accept current 30mm spindle cranksets, as well as 24mm cranksets using Wheels Mfg. adapter shims
- Bearings: Enduro ABEC-3
- Bottom Bracket/Frame Interface: PF30, BB386EVO, Specialized Carbon OSBB, BBRight™ Press Fit$203.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB-29MM-0.5Stock Code:WMBB-BB-29MM-1.0Stock Code:WMBB-BB-29MM-2.5-5
Used to adjust crank chainline or take up any slack when using 29mm (SRAM DUB) spindle cranks.
- 29mm I.D.
- 2.5mm thick
- 5 spacers per bag
- Machined engineering-grade Delrin.$29.00 (RRP)$29.00 (RRP)$29.00 (RRP) -
Stock Code:WMBB-BB86-OUT-BBStock Code:WMBB-BB86-OUT-BB-1Stock Code:WMBB-BB86-OUT-BB-3Stock Code:WMBB-BB86-OUT-BB-6Stock Code:WMBB-BB86-OUT-BB-5Stock Code:WMBB-BB86-OUT-BB-7
Our new BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mm$216.00 (RRP)$216.00 (RRP)$216.00 (RRP)$216.00 (RRP)$216.00 (RRP)$216.00 (RRP) -
Stock Code:WTBB-T47I-24-BLKStock Code:WTBB-T47I-24-ORGStock Code:WTBB-T47I-24-PRUStock Code:WTBB-T47I-24-RSILStock Code:WTBB-T47I-29-BLKStock Code:WTBB-T47I-29-ORGStock Code:WTBB-T47I-29-PRUStock Code:WTBB-T47I-29-RSILStock Code:WTBB-T47I-30-BLKStock Code:WTBB-T47I-30-ORGStock Code:WTBB-T47I-30-PRUStock Code:WTBB-T47I-30-RSIL
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP) -
Stock Code:WTBB-T47I-24-BLKStock Code:WTBB-T47I-24-ORGStock Code:WTBB-T47I-24-PRUStock Code:WTBB-T47I-24-RSILStock Code:WTBB-T47I-29-BLKStock Code:WTBB-T47I-29-ORGStock Code:WTBB-T47I-29-PRUStock Code:WTBB-T47I-29-RSILStock Code:WTBB-T47I-30-BLKStock Code:WTBB-T47I-30-ORGStock Code:WTBB-T47I-30-PRUStock Code:WTBB-T47I-30-RSIL
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
