Chris King Fitkit#6 for Sram GXP Cranks
Description
Chris King bottom brackets utilize Fit Kits to ensure that cranks mate perfectly with our precision bearings, extend product life, and reduce the potential for noise. Fit Kits will also allow you to use one bottom bracket with a wide array of cranks, if you happen to change you cranks in the future.

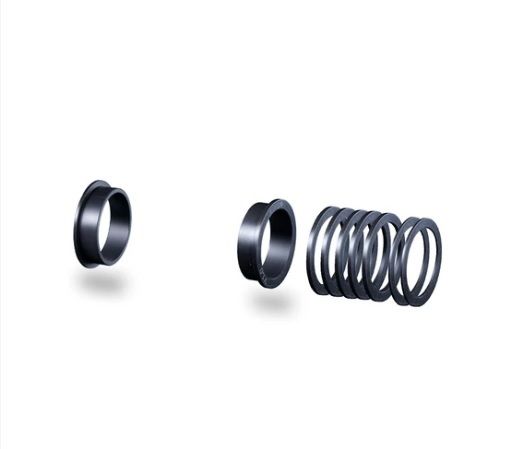

Fit Kit #6 (PBB086) for SRAM GXP cranks.
For use with ThreadFit™ 24, ThreadFit™ T47 24i, ThreadFit™ T47 24x
68mm, 73mm, 73mm SB+, 86.5mm, 92mm, and 92mm SB+ BB shells.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-T47-BB-SHIM-BB
T47 threaded BB cups for T47 frames and 24.00mm spindle diameter cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 132mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 24.00mm
Over Bearing Width: 91.5mm in 86.5mm wide shell*
Tool Pattern: 48.5mm x 16-notch$240.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB-T47A-GXPStock Code:WMBB-BB-T47A-24MMStock Code:WMBB-BB-T47A-29MMStock Code:WMBB-BB-T47A-30MM
T47a (asymmetrical) threaded BB cups for T47a frames and 24mm diameter spindle compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility
- Cervelo T47a 79mm shell width
- Factor T47a 77.5mm shell width
- Felt T47a 77mm shell widthExpected Date:07 May 2026$240.00 (RRP)$245.00 (RRP)$245.00 (RRP)$245.00 (RRP) -
Stock Code:TGBB-TGLN3922-115
Tange-Seiki LN 3922 JIS cartridge bottom bracket features ultra-smooth sealed cartridge bearings, solid boron steel spindle and steel cups.
- 68mm English-threaded (1.370" x 24 tpi)
- JIS square taper
- steel cups & sleeve
- requires Park Tool BBT-22 for installation & removal
- crank arm bolts are not included$49.00 (RRP)Add To Cart
-
Stock Code:WTBB-BSA-24-PRUStock Code:WTBB-BSA-24-RSILStock Code:WTBB-BSA-24-BLUStock Code:WTBB-BSA-24-ESPStock Code:WTBB-BSA-24-GLDStock Code:WTBB-BSA-24-OLVStock Code:WTBB-BSA-24-REDStock Code:WTBB-BSA-29-BLUStock Code:WTBB-BSA-29-ESPStock Code:WTBB-BSA-29-GLDStock Code:WTBB-BSA-29-OLVStock Code:WTBB-BSA-29-REDStock Code:WTBB-BSA-30-ORGStock Code:WTBB-BSA-30-RSILStock Code:WTBB-BSA-30-BLUStock Code:WTBB-BSA-30-ESPStock Code:WTBB-BSA-30-GLDStock Code:WTBB-BSA-30-OLVStock Code:WTBB-BSA-30-RED
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool or BBS4416
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP) -
Stock Code:WTBB-BSA-24-PRUStock Code:WTBB-BSA-24-RSILStock Code:WTBB-BSA-24-BLUStock Code:WTBB-BSA-24-ESPStock Code:WTBB-BSA-24-GLDStock Code:WTBB-BSA-24-OLVStock Code:WTBB-BSA-24-REDStock Code:WTBB-BSA-29-BLUStock Code:WTBB-BSA-29-ESPStock Code:WTBB-BSA-29-GLDStock Code:WTBB-BSA-29-OLVStock Code:WTBB-BSA-29-REDStock Code:WTBB-BSA-30-ORGStock Code:WTBB-BSA-30-RSILStock Code:WTBB-BSA-30-BLUStock Code:WTBB-BSA-30-ESPStock Code:WTBB-BSA-30-GLDStock Code:WTBB-BSA-30-OLVStock Code:WTBB-BSA-30-RED
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool or BBS4416
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)
