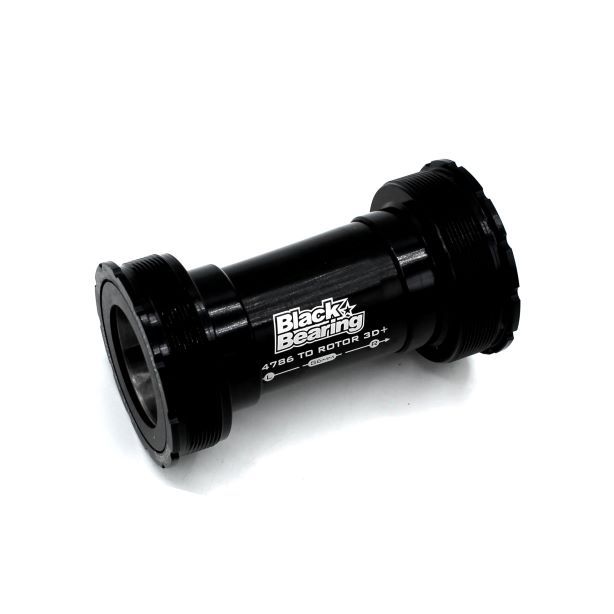

BlackBearing B5 T47 86/92 30mm
Description
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-PF30-THD-BB
New PF30 bottom bracket with threaded cups. Don't rely on questionable frame tolerances. Our threaded cups ensure a tight, noise-free bottom bracket with proper bearing alignment.
Direct replacement for SRAM, FSA, and other PressFit 30 bottom brackets!
- Bearings: Enduro ABEC-3
- Bottom Bracket/Frame Interface: PF30, BBRight™ Press Fit, Specialized Carbon OSBB*
- Bottom Bracket Shell Width (mm): 61mm to 79mm*
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 30mm
- Will accept 24mm and 24/22mm cranksets using Wheels Mfg. adapter shims
* Specialized Carbon OSBB with 61mm shell width will need additional 3.5mm cup spacers.
** Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).$228.00 (RRP) -
Stock Code:WMBB-T47-OUT-30MM-AC
T47 threaded BB cups for T47 frames and 30mm diameter spindle cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.$269.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB86-29-BB
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 29mm (SRAM DUB) spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.
Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals
Bottom Bracket/Frame Interface: BB86, BB92, PF90, BB104/107, PF121, PF132
Bottom Bracket Shell Width: 86.5mm - 132mm
Bottom Bracket Shell I.D.: 41mm
Flange OD: 42mm
Crank Spindle Diameter: 29mm (DUB)
Over Bearing Width: 92mm in 86.5mm wide shell*$346.00 (RRP) -
Stock Code:BBBB-GXPALT-B3$47.43 (RRP)
Add To Cart
-
Stock Code:WTBB-BSA-24-BLKStock Code:WTBB-BSA-24-ORGStock Code:WTBB-BSA-24-PRUStock Code:WTBB-BSA-24-RSILStock Code:WTBB-BSA-24-BLUStock Code:WTBB-BSA-24-ESPStock Code:WTBB-BSA-24-GLDStock Code:WTBB-BSA-24-OLVStock Code:WTBB-BSA-24-REDStock Code:WTBB-BSA-29-BLKStock Code:WTBB-BSA-29-ORGStock Code:WTBB-BSA-29-PRUStock Code:WTBB-BSA-29-RSILStock Code:WTBB-BSA-29-BLUStock Code:WTBB-BSA-29-ESPStock Code:WTBB-BSA-29-GLDStock Code:WTBB-BSA-29-OLVStock Code:WTBB-BSA-29-REDStock Code:WTBB-BSA-30-BLKStock Code:WTBB-BSA-30-ORGStock Code:WTBB-BSA-30-PRUStock Code:WTBB-BSA-30-RSILStock Code:WTBB-BSA-30-BLUStock Code:WTBB-BSA-30-ESPStock Code:WTBB-BSA-30-GLDStock Code:WTBB-BSA-30-OLVStock Code:WTBB-BSA-30-RED
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool or BBS4416
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)
