CHRIS KING T47 CONVERSION KITS
All of our bottom bracket offerings will need an appropriate Conversion Kit specific to the brand and model of crankset to be used.
- 68mm Threaded BB Shell
- 30mm Road Cranksets
- Common Cranks: E*thirteen, Hope
- Conversion Kit required to work with the Chris King ThreadFit T47 30x bottom bracket
Webshops and Bike shops
Related Products
-
Description
Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro ABEC 5 angular contact bearings is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 5 angular contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm -
Description
Run 29mm spindle SRAM DUB compatible cranks in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806/29 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer -
Description

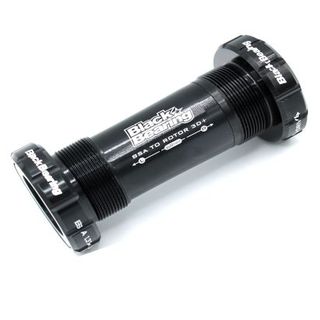

The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum. -
Description
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum. -
Description
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 29mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 46-12 spline tool or BBS4612
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 3mm, 5mm, 7.5mm 29mm spindle spacers
