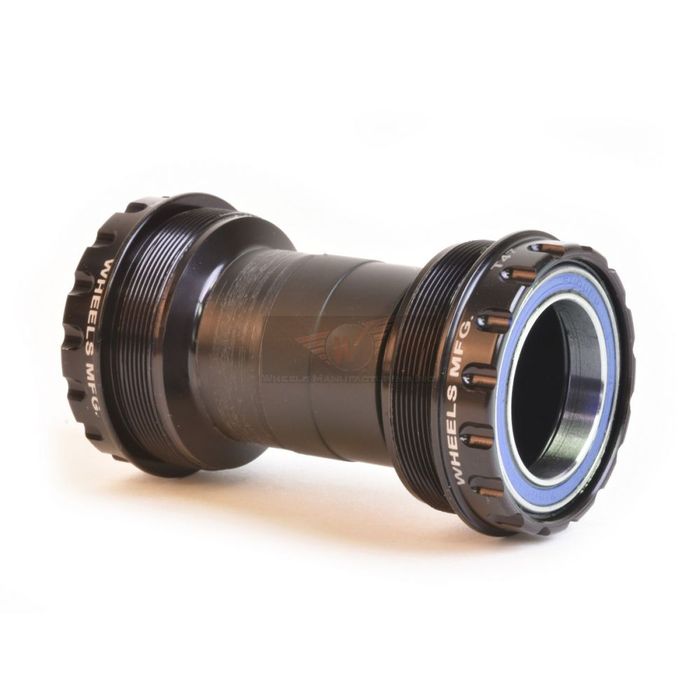

Wheels MFG T47 OUT BB 30mm Black
Description
T47 threaded BB cups for T47 frames and 30mm spindle diameter cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 30mm
Over Bearing Width: 90.8mm in 68mm wide shell*
Tool Pattern: 48.5mm x 16-notch
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-PF30A-OUT-SRAM
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 22/24mm
- Tool Pattern: 44mm x 16 notch$212.00 (RRP)Add To Cart
-
Stock Code:WMBB-T47IN-PRX
T47 threaded BB cups for T47 frames and M30 28/30mm spindle diameter Praxis compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
1 - 28mm InsertExpected Date:27 November 2025$204.00 (RRP) -
Stock Code:WMBB-BB-MTB-7Stock Code:WMBB-BB-MTB-9Stock Code:WMBB-BB-MTB-1Stock Code:WMBB-BB-MTB-3Stock Code:WMBB-BB-MTB-1-1Stock Code:WMBB-BB-MTB-1-3Stock Code:WMBB-BB-MTB-1-6Stock Code:WMBB-BB-MTB-1-7Stock Code:WMBB-BB-MTB-1-5Stock Code:WMBB-BB-BSA29-BBStock Code:WMBB-BB-BSA29-BB-1Stock Code:WMBB-BB-BSA29-BB-3Stock Code:WMBB-BB-BSA29-BB-4Stock Code:WMBB-BB-BSA29-BB-5Stock Code:WMBB-BB-BSA29-BB-6Stock Code:WMBB-BB-BSA29-BB-7Stock Code:WMBB-BB-BSA29-BB-9Stock Code:WMBB-BB-BSA30-ACStock Code:WMBB-BB-BSA30-BBStock Code:WMBB-BB-BSA30-CERStock Code:WMBB-BB-BSA30-BB-12
Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
*For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).
*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).Expected Date:27 November 2025$172.00 (RRP)$211.00 (RRP)$172.00 (RRP)$212.00 (RRP)$172.00 (RRP)$172.00 (RRP)$172.00 (RRP)$172.00 (RRP)$172.00 (RRP)$210.00 (RRP)$211.00 (RRP)$211.00 (RRP)$211.00 (RRP)$211.00 (RRP)$211.00 (RRP)$211.00 (RRP)$211.00 (RRP)$212.00 (RRP)$172.00 (RRP)$472.00 (RRP)$172.00 (RRP) -
Stock Code:WTBB-BSA-24-BLKStock Code:WTBB-BSA-24-ORGStock Code:WTBB-BSA-24-PRUStock Code:WTBB-BSA-24-RSILStock Code:WTBB-BSA-29-BLKStock Code:WTBB-BSA-29-ORGStock Code:WTBB-BSA-29-PRUStock Code:WTBB-BSA-29-RSILStock Code:WTBB-BSA-30-BLKStock Code:WTBB-BSA-30-ORGStock Code:WTBB-BSA-30-PRUStock Code:WTBB-BSA-30-RSIL
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool or BBS4416
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacersExpected Date:20 November 2025$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP) -
Stock Code:WTBB-T47E-29-BLKStock Code:WTBB-T47E-29-ORGStock Code:WTBB-T47E-29-PRUStock Code:WTBB-T47E-29-RSIL
Wolf Tooth T47 External Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm T47 bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 (24mm) and 46-12 (29mm DUB, 30mm) spline bottom bracket tools
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 3mm, 5mm, 7.5mm 29mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
