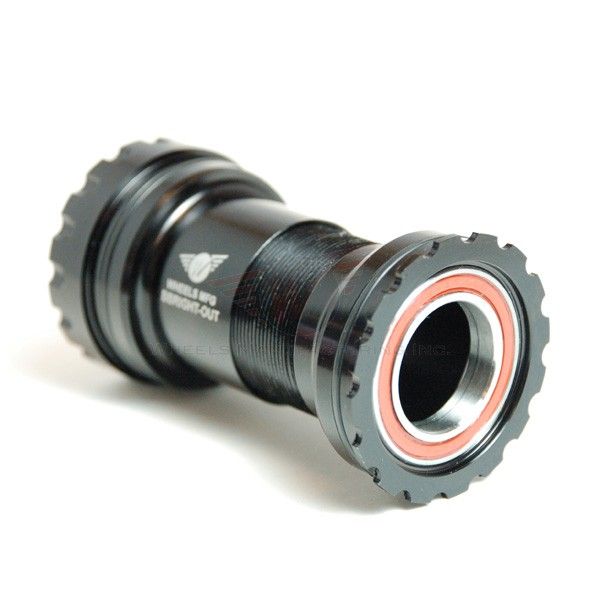

Wheels Mfg BBright-Outboard A/C Shimano
Description
BBRight™ Outboard Angular Contact BB for use with 24mm spindle (Shimano) cranks. Fully serviceable. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Weight: 98g
Black anodized, machined aluminum cups
Enduro Angular Contact bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano) cranksets.
