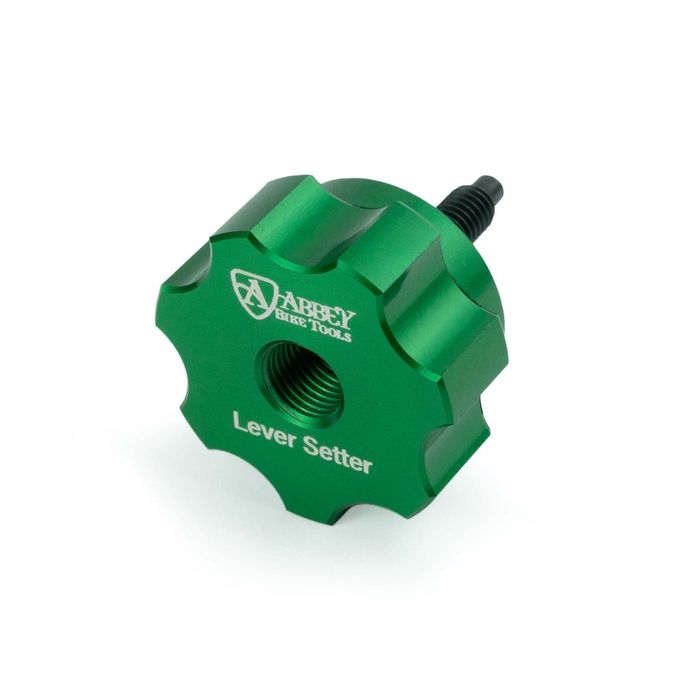

Abbey Lever Setter
Description
The lever setter is a unique tool that works in conjunction with our HAG to set brake and shifter levers at the same height from side to side. The tool temporarily replaces the headset top cap and allows you to thread a hanger alignment tool into the lever setter. Then you can use the HAG indicator to set levers the same from one side of the bar to the other. It's a great little fitting tool to eliminate variables in your bike fit. It's also great to balance the variations in bends that metal bars sometimes have from one side to the other. Once you're satisfied with your lever placement simply remove the tool and replace your headset top cap and go ride.
Recommendations:
It's advised to use a spacer on top of the stem to help align the lever setter with the steer tube. This will reduce the impact the quality of the cut on the steer tube has on the function of the tool. The supplied threaded stud can be replaced with a longer one if needed.
H.A.G. sold separately.
Made in Bend Oregon
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Expected Date:15 September 2026Expected Date:15 September 2026Expected Date:15 September 2026Expected Date:15 September 2026Expected Date:15 September 2026$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:SWTL-QDL
The QuickDrop Lite is built for maximum workshop efficiency. It keeps your headset stack perfectly organized during fork removal and makes reinstallation even faster thanks to its integrated top handle. Simple, fast, and made for mechanics who do this all day.
HOW IT WORKS
The lower section of the Quick Drop Lite matches the inner diameter of a standard steerer tube with tight, workshop-ready tolerances.
Remove your top cap, insert the tool from above, and guide the fork downward. The Lite stays engaged inside the steerer, holding spacers, stem, and headset bearings aligned while the fork slides out.
The large integrated handle gives you direct control during both removal and reinstallation. You can guide the fork smoothly with one hand while keeping everything centered and stable.
During reinstall, simply guide the steerer back up while lightly holding the handle. The alignment stays straight, spacers remain stacked, and components slide back into place without juggling.$22.50 (RRP)Add To Cart
-
Stock Code:PDTL6450515G
Head rebuild kit for current Super Prestige floor pump.
Includes cap and gasket.$6.00 (RRP)Add To Cart
-
Stock Code:ABTL-STD-LVRSTTR
The lever setter is a unique tool that works in conjunction with our HAG to set brake and shifter levers at the same height from side to side. The tool temporarily replaces the headset top cap and allows you to thread a hanger alignment tool into the lever setter. Then you can use the HAG indicator to set levers the same from one side of the bar to the other. It's a great little fitting tool to eliminate variables in your bike fit. It's also great to balance the variations in bends that metal bars sometimes have from one side to the other. Once you're satisfied with your lever placement simply remove the tool and replace your headset top cap and go ride.
Recommendations:
It's advised to use a spacer on top of the stem to help align the lever setter with the steer tube. This will reduce the impact the quality of the cut on the steer tube has on the function of the tool. The supplied threaded stud can be replaced with a longer one if needed.
H.A.G. sold separately.
Made in Bend Oregon$74.00 (RRP)Add To Cart
-
Stock Code:ABTL-TCSOCKET24MM
Suspension service is a specialty within bicycle repair and it takes specialized tools to perform this work. One of the things that any factory tech will tell you is nice to have are sockets specifically made or altered for the low profile hex on the top of each fork leg. The lead in or chamfer on a standard socket will greatly decrease the contact between tool and part and can easily scratch or deform those nuts. For years shops have been grinding down their sockets to remove the chamfer. Problem is you're still often left with a loose fitting socket that is still prone to chewing up those delicate parts. That's why we started from scratch.
We made our sockets from billet aluminum to exacting tolerances to keep these parts in good shape. fully CNC'd machined with zero lead in, they make the specialty that is suspension service a little bit easier. They feature a 3/8" square drive for use with your favorite torque wrench as well as finger splines to help run the top caps into the fork legs with those oil soaked hands. We also kept them short (1" or 25mm for all sizes) to reduce the chance of them caming off of the top cap under torque.
Offered in a 7 individual sizes and a 6 socket set for most modern suspension forks on the market.$53.00 (RRP)Add To Cart
