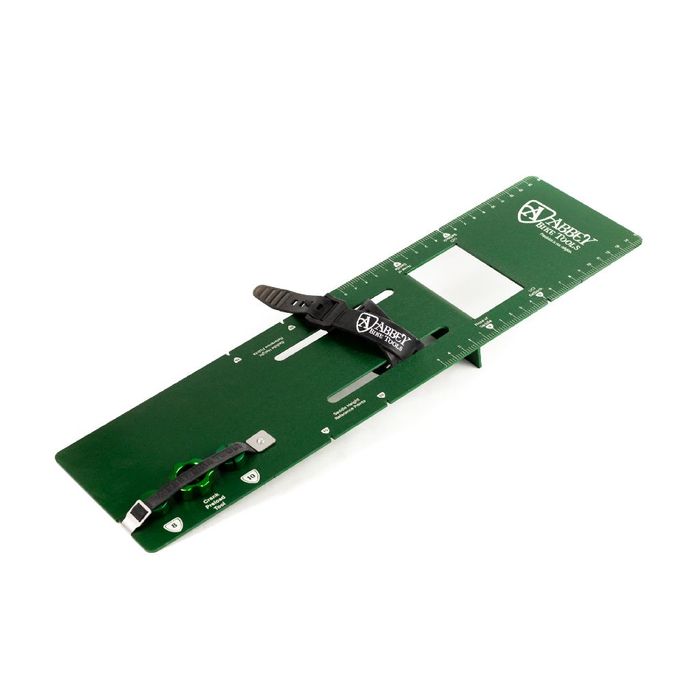

Abbey Fit Kit
Description
This set of tools allows accurate and repeatable measurements for saddle height, angle and setback. The accuracy and repeatable measurements also serve as a base to make adjustments to fit.
The magnetic saddle height bullets (8mm and 10mm sizes) ensure you get an accurate center at the bottom bracket by locating in the crank arm fixing bolt or the crank arm preload cap of Shimano caps. This allows you to focus on the smart end of the tape measure at the saddle plate.
Two reference marks on the saddle plate means you can pull a measurement to the exact same spot relative to the nose of the saddle every time. This gives you accuracy down to a single millimeter, enough to satisfy the most particular or injury prone athlete.
The front of the saddle plate is engraved with a ruler (metric of course) to allow you to calculate saddle setback at the saddle. This allows you to drop the plumb bob off the side of the bike and clear all of the bottle cages.
The wide plate has ample room to mount a level, protractor or smart phone for adjusting the angle of the saddle. This is particularly helpful for non traditional saddles like SMP and Adamo. This kit is ideal for cyclists that travel and regularly have to re-assemble their bike, bike fitters and mechanics in the workshop and in the field.
The complete kit includes the saddle plate, Shimano preload crank tool, two saddle height bullets (8mm and 10mm). The Shimano preload crank tool and saddle height bullets can be purchased separately.
Made in Bend Oregon.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:ABTLABTSPD34MM
This tool make dust wiper installation an easy sure fired task. Drivers are made in diameters specific to stanchion sizes for most modern forks including 32, 34, 35, 36, 38, and 40mm.
The Fork Seal Press is built with modern tight fitting fork seals in mind. Using a common handle with a stainless steel striking surface to give excellent durability when setting seals with a mallet.
The handle provides ample clearance for your hand around the fork crown while allowing a good grip to seat the seal. The Delrin drivers are built to use the upper fork bushing as a guide. Making sure the seal goes in square the first time, every time.
Note, these drivers are designed to be used with our handle, hitting them directly with a hammer can cause failure and will not be covered under warranty.
Made in Bend Oregon.$56.00 (RRP)Add To Cart
-
Stock Code:PDTL6460202
Socket Tool For Shimano® and ISIS Drive® Splined 20-Tooth BB Cups
- Fits all Shimano® and ISIS Drive® splined 20-tooth bottom bracket cups and other cartridge bottom brackets.
- Updated design features a square 3/8" drive. Also works with Pedro's snap-channel Pro Socket Handle, 24mm socket or wrench, or in a bench vise.
- Professional quality, precision sized for the perfect fit.
Pedro's socket tools provide the professional quality, precision fit tools required to properly install, remove, and adjust modern drivetrain components.
Pedro's designed each socket tool to fit perfectly protecting the component and ensuring simple and safe usage for the mechanic. The updated Splined Bottom Bracket Socket features a square 3/8" drive. The socket also works with Pedro's snap-channel Pro Socket Handle, 24mm socket or wrench, or in a bench vise.
For tough bottom bracket jobs, make sure to check out the BB Socket Holder designed to help hold the Splined Bottom Bracket Socket in place. The 20-tooth pattern fits a variety of cartridge style bottom brackets that feature square taper, Octalink®, ISIS Drive™, and other similar spindles including models from FSA®, Shimano®, Truvativ®, Race Face®, and others.$30.00 (RRP)Add To Cart
