Pedros Pro BB Socket Cup
Description
The Pro BB Socket System is the ultimate solution to the ever-growing number of threaded bottom bracket “standards” flooding the market. This patent-pending, innovative, and economical system adapts to both current and future bottom bracket tool needs with ease.

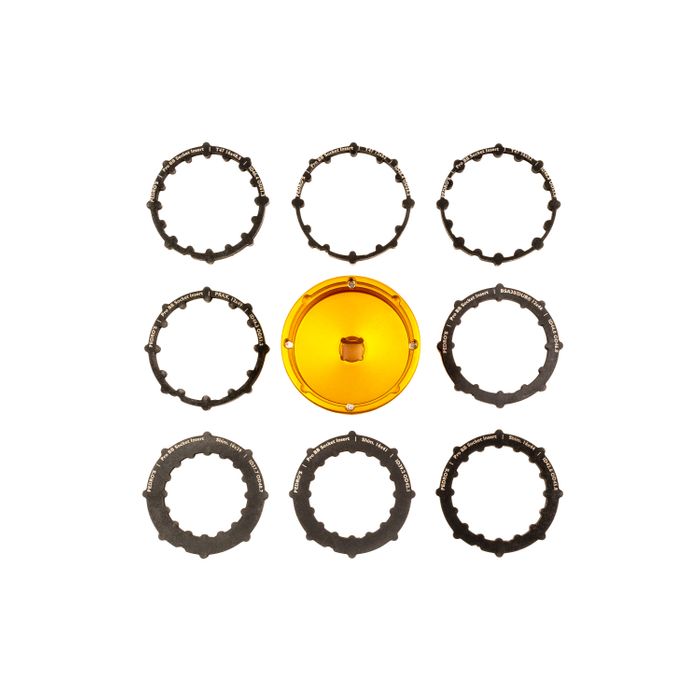

At the core of the system is the Pro BB Socket Cup, designed to accept Pro BB Inserts via a secure magnetic connection, allowing for quick, effortless swapping with a satisfying click. As new bottom bracket standards emerge, additional inserts can be easily introduced, enabling mechanics to expand their toolkit affordably and efficiently.
Magnetic plug and play system replaces multiple BB sockets. Buy a single cup and pair with the inserts you need.
Pair the Pro BB Socket Cup with Pro BB Inserts, sold separately, to adapt to numerous types of threaded bottom brackets, disc lockrings, and more.

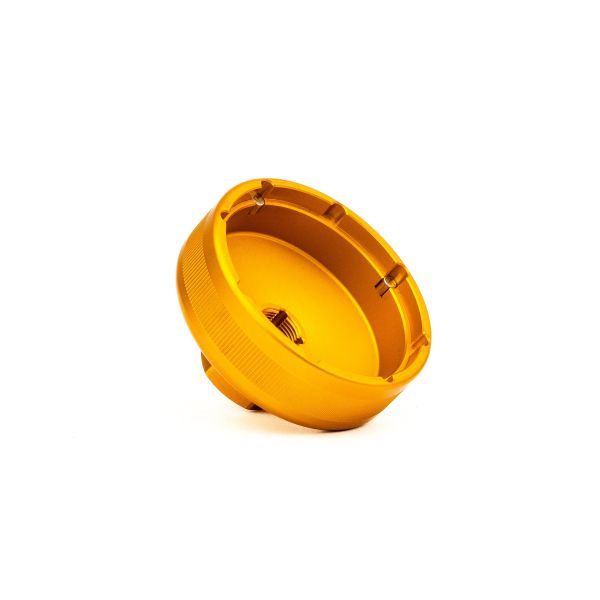

7075 T6 aluminum socket is fully machined to precise tolerances for an exacting professional-level fit.
Features a 3/8" square drive for use with torque wrenches, a 24mm external drive for use with Pedro's Pro Socket Handle and pedal wrenches, and internal M12 thread for use with the Pro BB Socket Holder.
Inserts are precision laser cut tool steel with optimized heat treatment for precise fit and superior tool life.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0007
Complete tool kit for installing Wheels Manufacturing bottom brackets. Kit includes our new bottom bracket socket tool for installing our BB cups, along with new sealed bearing drifts for the following ID bearings:
- 22mm
- 24mm
- 29mm
- 30mm
Bottom Bracket Press Pro Install Kit includes:
- UNC 48mm 16-notch Socket x 1
- 22x37 DRIFT 1/2" x 1
- 6806 OB 1/2" x 2
- 24x37 OB 1/2" x2
- 1/2" FRAME DRIFT x 1 1/2-13 x 9.7"
- THREADED ROD UNC x 1 44-48.5mm
- DOUBLE 16-notch 1/2" SOCKET x 1
- THREADED HANDLE x 2$315.00 (RRP)Add To Cart
-
Stock Code:WMTL-BP0018
Thin Flange Bottom Bracket Socket Designed to create a tight grip on thin flange bottom bracket to avoid slipping while torquing cups into bike frames. This single-sided socket is used for installing and removing 48.5mm, 16-notch bottom bracket cups. The socket has a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red.
$81.00 (RRP)Add To Cart
-
Stock Code:WMTL-EX0004
Bearing extractors set for pushing out 22mm, 24mm, 29, and 30mm ID sealed bearings from bottom bracket cups. Compatible with our 1/2" threaded press rod and handles (PRESS-7 and PRESS-7-PRO).
Includes
(1) 30mm ID sealed bearing extractor
(1) 29mm ID sealed bearing extractor
(1) 24mm ID sealed bearing extractor
(1) 22mm ID sealed bearing extractor
(1) 52mm receiver cup
(1) 44mm receiver cup sleeve
(1) 42mm receiver cup sleeve
(1) 39mm receiver cup sleeve
(1) bearing pusher shaft
Extractors for 25mm and 29mm ID bearings available separately:
BE-25MM-SET$276.00 (RRP)Add To Cart
-
Stock Code:PDTL6460761
44mm, 16-notch external bearing bottom bracket cups including Shimano BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cups.
Also fits many external threaded types for Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, and others. Also fits disc brake rotor lockrings with 16 external notches and Shimano® TL-FC24 and TL-FC25 adapters.$26.00 (RRP)Add To Cart
