Abbey DUB Bottom Bracket Drift 1/2 inch
Description

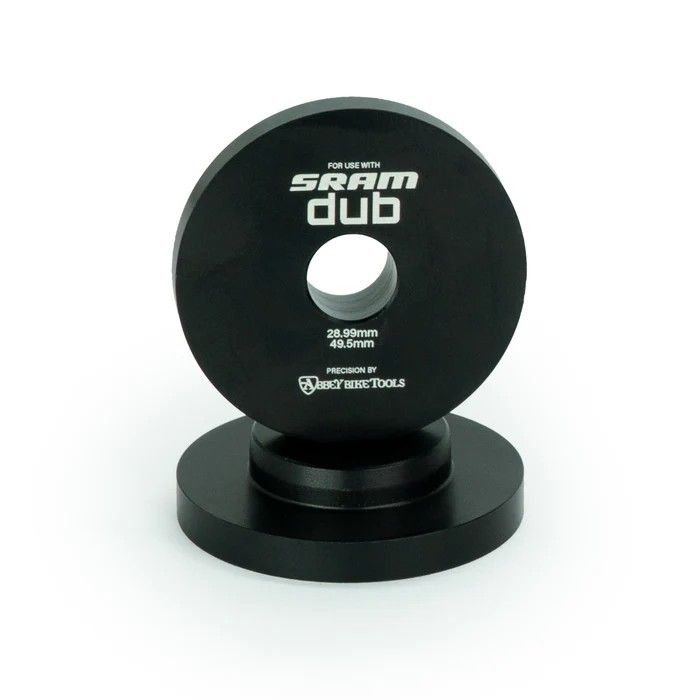

Bearing drift designed for the SRAM DUB crank platform and use with the Abbey Bike Tools Modular bearing press.
SRAM recently launched a new crank platform called DUB to improve bearing durability and compatibility that modern frames have dictated. This 28.99mm spindle and it's press fit bottom bracket requires some special drifts to install correctly. We worked with the crew at SRAM to develop tools for this and came up with some simple and important tweaks from a standard bearing drift.
These Abbey Bike Tools drifts have a tapered boss that forces the small O ring into it's gland. A normal drift with a square boss can easily tear that fragile O ring that helps with bearing durability. So this basic modification keeps makes sure your bottom bracket sees the durability it was designed to have.
Comes as a pair of drifts.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-BBTOOL-48-44
Double-sided socket tool for installing and removing both 48.5mm and 44mm 16-notch bottom bracket cups. Compatible with all Wheels Manufacturing bottom brackets. Socket is machined for 1/2" drive, but a 3/8" to 1/2" adapter is included so you can use it with 3/8" drive torque wrenches.
48.5mm, 16-notch pattern matches up with Wheels Mfg bottom brackets, along with some FSA MegaEVO bottom brackets. The 44mm, 16-notch side matches up with Wheels Manufacturing bottom brackets, along with many other outboard bearing bottom brackets including Shimano, FSA MegaEXO and SRAM/Truvativ.Stock Level:In StockStock Level:In Stock$102.00 (RRP)Add To Cart
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punchStock Level:In StockStock Level:2Stock Level:In StockStock Level:2Stock Level:In StockStock Level:2Stock Level:2Stock Level:2Stock Level:2Stock Level:In StockStock Level:2Stock Level:2Stock Level:2Stock Level:2Stock Level:1Stock Level:2Stock Level:1Stock Level:In StockStock Level:Out of StockStock Level:1Stock Level:2Stock Level:1Stock Level:In StockStock Level:2$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0021
Thin Flange Bottom Bracket Sockets Designed to create a tight grip on thin flange bottom brackets to avoid slipping while torquing cups into bike frames. These single-sided sockets are used for installing and removing 48.5mm, 16-notch, 54mm 16-notch and 54mm 12-notch bottom bracket cups.
The sockets have a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red
Kit includes:
(1) 1/2" UNC Threaded Rod
(1) 1/2" Adjustable Press Stop
(1) 6806/29 Bearing Drift
(1) 6806 Bearing Drift
(1) 24x37 Bearing Drift
(1) Wheels MFG Thin Flange Bottom Bracket Socket for 48.5mm, 16-notch pattern.
(1) SRAM Thin Flange T47 Bottom Bracket Socket for 54mm 16-notch pattern.
(1) Praxis Thin Flange T47 Bottom Bracket Socket for 54mm 12-notch pattern.Stock Level:1Stock Level:1$345.00 (RRP)Add To Cart
-
Stock Code:WMTL-BP0013
DESIGNED TO PRESS IN ALL CURRENT WHEELS MFG BOTTOM BRACKETS!
Our universal bottom bracket drift is designed to press all current Wheels Mfg bottom bracket cups in to your frame. The adapter is machined with multiple steps to fit common bottom bracket shell and bearing diameters listed in the Compatibility tab below. Each step is laser etched with the diameter size.
Drift can also can be used as a frame bottom bracket shell sizing guide!
Recommended for use with Wheels Mfg Universal BB Press, but can be used with PRESS-1 or PRESS-4 handles.
-Inner hole sized to fit 1/2" threaded rod
-Compatible with any other press with a 1/2" diameter rod
-Recommended for use with Wheels Mfg BP0006, BP0007
-Machined aluminum
We do not recommend it for use with press with a rod diameter less than 1/2". When used with a smaller rod, it is almost impossible to prevent the cups or bearings from pressing in straight.
* Sold individually (2 drifts required for some installations) *
Drifts fit the following BB shell sizes:
BB30 (42mm)
PF30 (46mm)
BB86, BB92 (41mm)
BBRight (46mm)
BB386EVO (46mm)
Cannondale BB30A (42mm)
Cannondale PF30A (46mm)
Specialized Carbon OSBB (46mm)
Specialized Alloy OSBB (42mm)
TREK BB90, BB95 (37mm)
PF24 (41mm)Stock Level:1Stock Level:1$40.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-HOPE
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of our socket range, these sockets won't chew up your shiny new bottom bracket.
Compatible with:
Hope BSA30 and T47 bottom brackets.
Made in Bend OregonStock Level:2Stock Level:2$76.00 (RRP)Add To Cart
