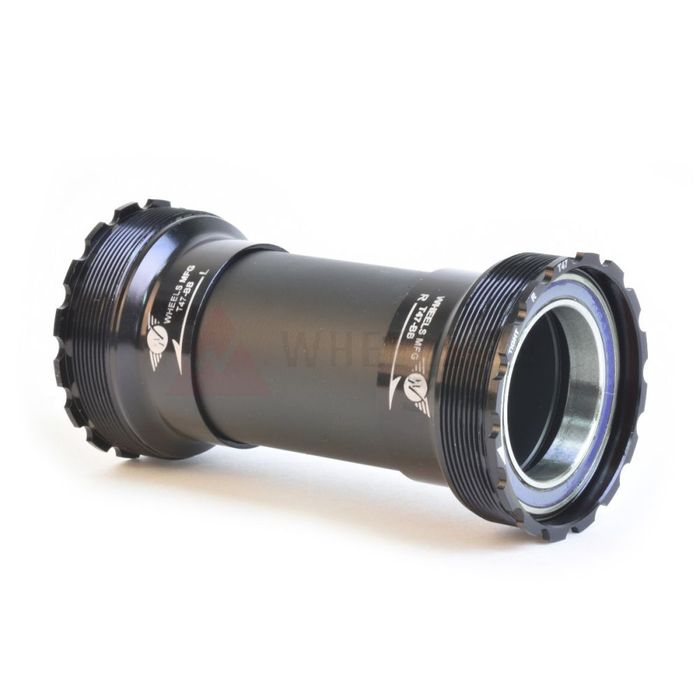

Wheels MFG T47 BB 30mm Black
Description
T47 threaded BB cups for T47 frames and 30mm diameter spindle cranks. Cups have internal bearings, and can be used in BB shells with widths from 68mm to 132mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-T47-OUT-29MM
T47 threaded BB cups for T47 frames and 29mm spindle diameter SRAM DUB compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
Bearings: Enduro ABEC-3
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16-notch$240.00 (RRP)Add To Cart
-
Stock Code:CKBB-PBB008B
For DUB mountain cranks there are a few extra fitments notes to be aware of.
If you have a 68mm BB shell and a THREADFIT30, BSA bottom bracket you will need two of these 2.5mm Cup Spacers.$24.50 (RRP)Add To Cart
-
Stock Code:WMBB-BB86-OUT-BBStock Code:WMBB-BB86-OUT-BB-1Stock Code:WMBB-BB86-OUT-BB-3Stock Code:WMBB-BB86-OUT-BB-6Stock Code:WMBB-BB86-OUT-BB-5Stock Code:WMBB-BB86-OUT-BB-7

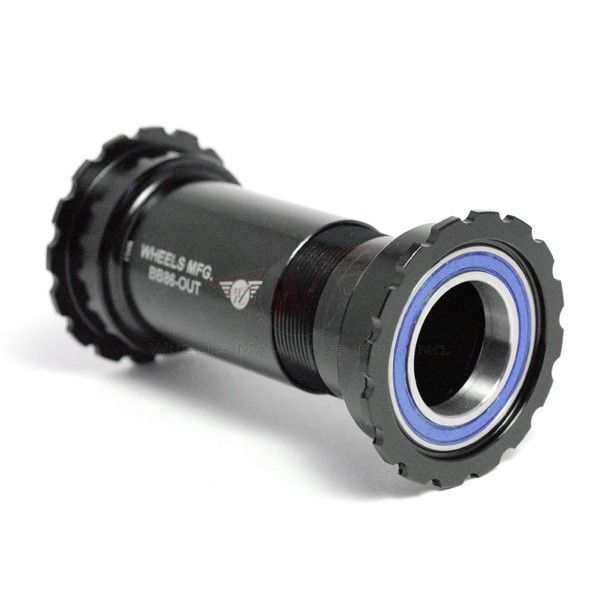

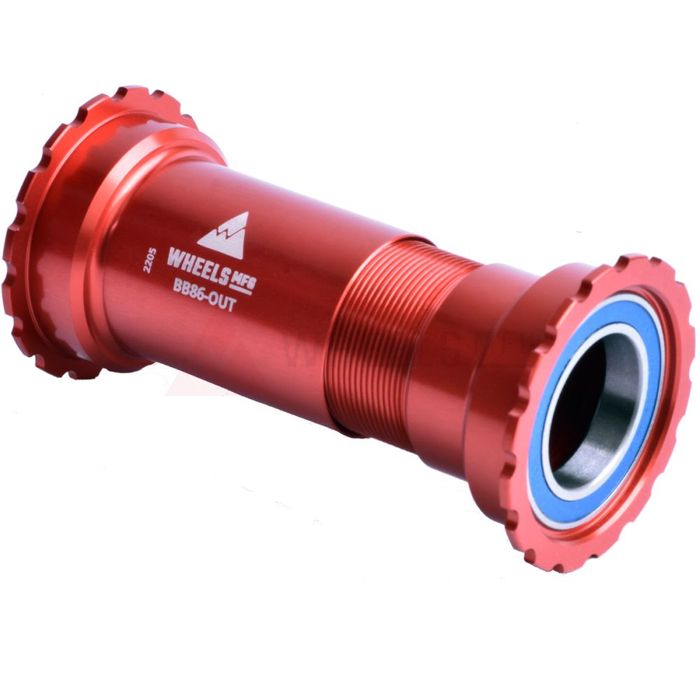

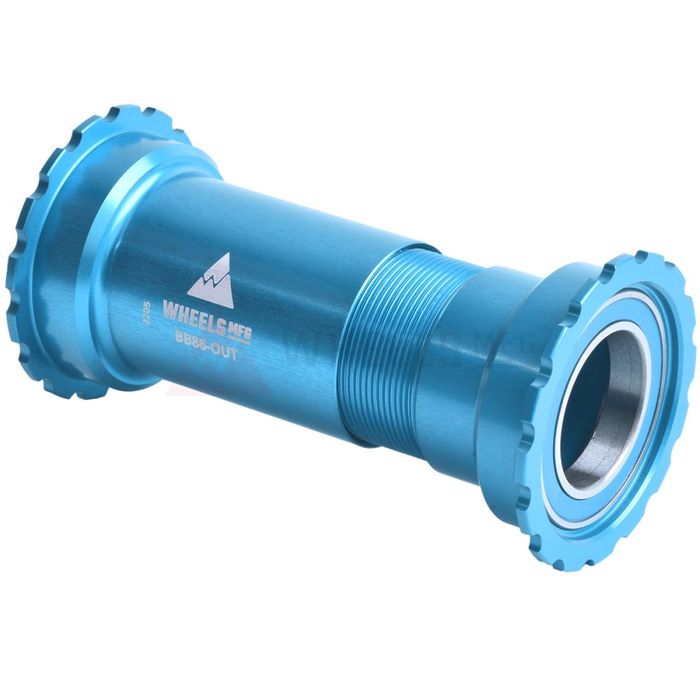

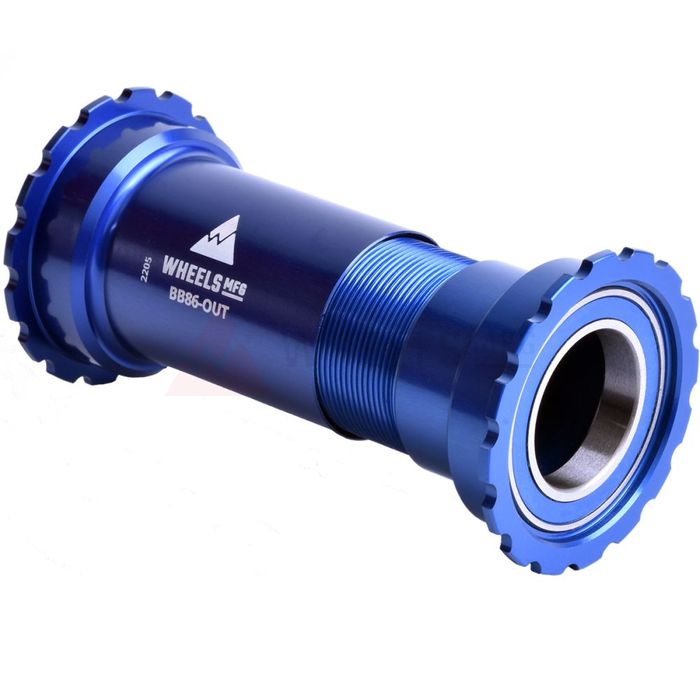

Our new BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mmExpected Date:19 March 2026$225.00 (RRP)$225.00 (RRP)$225.00 (RRP)$225.00 (RRP)$225.00 (RRP)$225.00 (RRP) -
Stock Code:BBBB-ADAPTER-P$17.73 (RRP)
Add To Cart
-
Stock Code:WTBB-T47I-24-BLKStock Code:WTBB-T47I-24-ORGStock Code:WTBB-T47I-24-PRUStock Code:WTBB-T47I-24-RSILStock Code:WTBB-T47I-29-BLKStock Code:WTBB-T47I-29-ORGStock Code:WTBB-T47I-29-PRUStock Code:WTBB-T47I-29-RSILStock Code:WTBB-T47I-29-BLUStock Code:WTBB-T47I-29-ESPStock Code:WTBB-T47I-29-GLDStock Code:WTBB-T47I-29-OLVStock Code:WTBB-T47I-29-REDStock Code:WTBB-T47I-30-BLKStock Code:WTBB-T47I-30-ORGStock Code:WTBB-T47I-30-PRUStock Code:WTBB-T47I-30-RSIL
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
