WHEELS MFG BB/CASSETTE SPACER

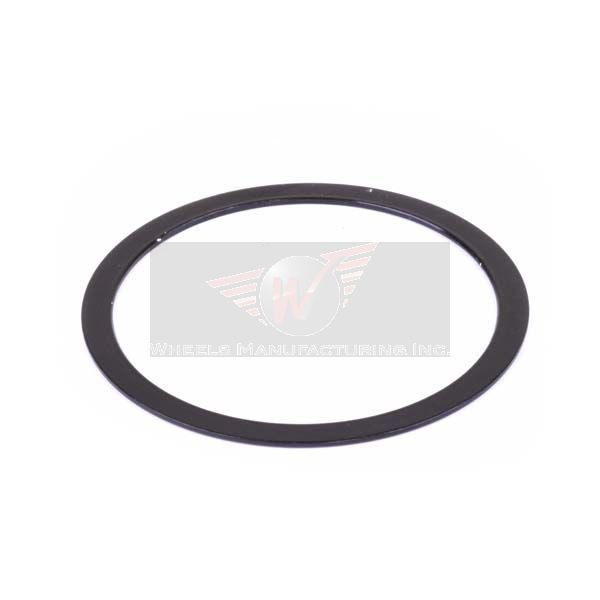

Aluminum spacer for ISO/English or BSA threaded bottom brackets. Spacers fit between bottom bracket cup and frame. Great for fine tuning bottom bracket shells or improving chainline.
Outer Diameter: 40.7mm
Inner Diameter: 34.9mm
Thickness: 1.8mm
Machined aluminum
Anodized Black
Sold 1 spacer per bag
Aluminum spacer for ISO/English or BSA threaded bottom brackets. Spacers fit between bottom bracket cup and frame. Great for fine tuning bottom bracket shells or improving chainline.
Outer Diameter: 40.7mm
Inner Diameter: 34.9mm
Thickness: 2.5mm
Machined aluminum
Anodized Black
Sold 1 spacer per bag
Webshops and Bike shops
Related Products
-
Description
Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
*For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).
*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29). -
Description
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately. **
- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notch -
Description
Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
** Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).**
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g
*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters -
Description
T47 threaded BB cups for T47 frames and 22/24mm spindle diameter SRAM GXP cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 24mm ID wave washer
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 132mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 22/24mm
Over Bearing Width: 91.7mm in 86.5mm wide shell*
Tool Pattern: 48.5mm x 16-notch -
Description
Run 29mm spindle SRAM DUB compatible cranks in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806/29 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
