Chris King FitKit#5 for T47 30X 30i
Description

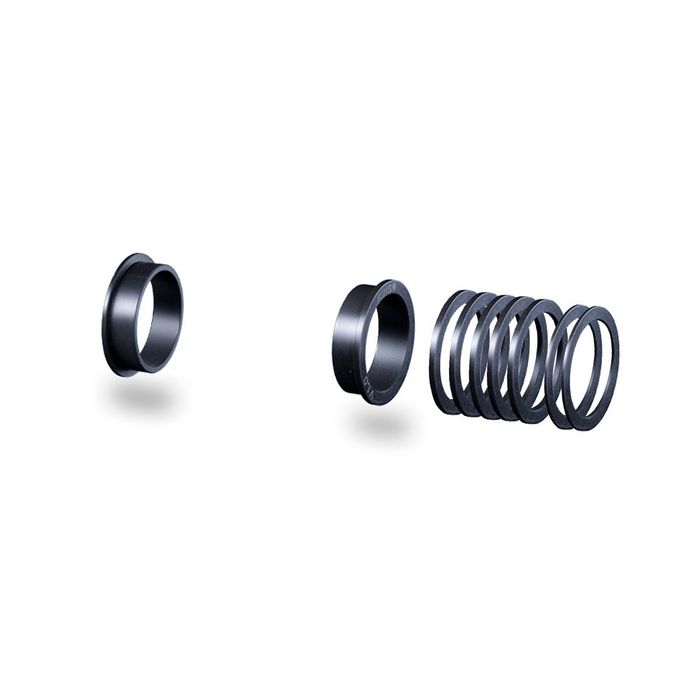

Chris King bottom brackets utilize Fit Kits to ensure that cranks mate perfectly with our precision bearings, extend product life, and reduce the potential for noise. Fit Kits will also allow you to use one bottom bracket with a wide array of cranks, if you happen to change you cranks in the future.
Fit Kit #5 (PBB085) for ThreadFit™ T47 30x and T47 30i with 30mm spindle cranksets.
For use with ThreadFit™ T47 30x and T47 30i
68mm, 73mm BB shells.
Common Cranks: White Industries, SRAM, Race Face
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB86-OUT-SRAMAC
BB86/92 THREAD TOGETHER ANGULAR CONTACT BB FOR 24/22MM (SRAM) CRANKS - BLACK
Directly replaces all OEM BB86 products. Use with 24/22mm (SRAM, Truvativ, Etc.) cranks. Enduro ABEC 5 Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum is superior in function and durability to plastic. Fully serviceable.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Weight: 98g
Made in the USA
Machined, anodized black aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Fits bottom bracket shell widths from 86mm to 92mm
Use with 24/22mm (SRAM, Truvativ, Etc.) cranks$235.00 (RRP)Add To Cart
-
Stock Code:WMBB-BBRIGHT-OUT-30
Thread together bottom bracket for frames using the BBRight™ bottom bracket standard and BB386 30mm spindle diameter cranks. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be equivalent to a BB386 length*
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BBRight™ Press Fit
Bottom Bracket Shell Width: 79mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Over Bearing Width: 91.5mm in 79mm wide shell*Expected Date:07 May 2026$235.00 (RRP) -
Stock Code:WMBB-T47-OUT-30MM-BB
T47 threaded BB cups for T47 frames and 30mm spindle diameter cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 30mm
Over Bearing Width: 90.8mm in 68mm wide shell*
Tool Pattern: 48.5mm x 16-notch$245.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB30-EBB-BLKStock Code:WMBB-BB30-EBB-GXP-BKStock Code:WMBB-PF30-EBB-BLACKStock Code:WMBB-PF30-EBB-GXPStock Code:WMBB-PF30-EBB-GXP-BL
New Eccentric bottom bracket for use in BB30 frames. Convert your BB30 frame to a single-speed setup with our simple to use bottom bracket.
Compatible with 24mm (Shimano, FSA, Etc.) cranks. Enduro Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum is superior in function and durability to plastic. Fully serviceable.
- Enduro ABEC-5 Angular Contact sealed bearings
- Fits BB30 bottom bracket shell widths from 68mm to 73mm
- Use with 24mm (Shimano, FSA, Etc.) cranks
** IMPORTANT NOTE: Our Eccentric bottom brackets for BB30 frames will not work with frames that do not have removable c-clips in the shell. If your frame has a shell with a molded step that the bearings press up against, our EBB will not completely fit in to the shell.$279.00 (RRP)$279.00 (RRP)$279.00 (RRP)$279.00 (RRP)$279.00 (RRP) -
Stock Code:WMBB-BB-MTB-7Stock Code:WMBB-BB-MTB-9Stock Code:WMBB-BB-MTB-1Stock Code:WMBB-BB-MTB-3Stock Code:WMBB-BB-MTB-1-1Stock Code:WMBB-BB-MTB-1-3Stock Code:WMBB-BB-MTB-1-6Stock Code:WMBB-BB-MTB-1-7Stock Code:WMBB-BB-MTB-1-5Stock Code:WMBB-BB-BSA29-BBStock Code:WMBB-BB-BSA29-BB-1Stock Code:WMBB-BB-BSA29-BB-3Stock Code:WMBB-BB-BSA29-BB-4Stock Code:WMBB-BB-BSA29-BB-5Stock Code:WMBB-BB-BSA29-BB-6Stock Code:WMBB-BB-BSA29-BB-7Stock Code:WMBB-BB-BSA29-BB-9Stock Code:WMBB-BB-BSA30-ACStock Code:WMBB-BB-BSA30-BBStock Code:WMBB-BB-BSA30-CERStock Code:WMBB-BB-BSA30-BB-12
Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
*For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).
*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).$199.00 (RRP)$240.00 (RRP)$199.00 (RRP)$240.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$199.00 (RRP)$472.00 (RRP)$199.00 (RRP)
