Derailleur Hangers

Attaches to frame with (1) M8 Chainring Bolt
Fasteners included

DH25 BIANCHI, BLUE, FUJI, HARO, IRON HORSE, K2, KHS, KONA, MARIN, MONGOOSE, SCHWINN, UNIVEGA

Attaches to frame with (2) M4x8 flat head screws
Fasteners included
Replaces:

Fuji Part # D002
Kona Hanger Type OO (CMPHOO)


Fuji
Addy 2.0 - 2012
Addy 27.5 - 2015
Addy Comp - 2013
Addy Race 1.3 - 2013
Nevada - 2013
Nevada 27.5 - 2015
Tahoe 27.5 - 2015
Tahoe 29 1.0 - 2012-2013
Tahoe 29 1.1 - 2013

Haibike
Big Curve RX 29 - 2014
Big Curve RX Pro 29 - 2014
Edition RX 27.5 - 2014
Edition RX Pro 27.5 - 2014
Life RX Pro 27.5 - 2014

Kona
Blast - 2012-2013
Caldera - 2012
Cinder Cone - 2012-2013
Kahuna - 2012
Mina - 2012

Orange
Diva - 2014
Diva Pro - 2014

Attaches to frame with (2) M4x8 Flat Head Screws
Fasteners not Included

Colnago
C60 - 2014-2016

Attaches to frame with (2) M5-12 Button Head Screws
Fasteners Included
Replaces Kona #CMPHTT

Kona
Operator - 2014-2015
Precept 200 - 2015
Precept DL - 2014-2015
Process 111, 111 DL - 2014-2015
Process 134, 134 DL - 2014-2015
Process 153, 153 DL - 2014-2015
Process 167 - 2015
Supreme Operator - 2014-2015

Attaches to frame with:

(1) M3x14 flat head screw
(1) M4x14 Flat head screw

Fasteners Included
Giant CONVERSION REAR END142x12 TA ver.2
For use with 12x142 thru axle hub

Giant
Anthem 27.5 - 2014-16
Anthem Advanced 27.5 - 2014-16
Intrigue 27.5 - 2014-16
Lust 27.5 - 2014-16
Lust Advanced 27.5 - 2014-16
Obsess Advanced 27.5 - 2014-16
Trance 27.5 - 2014-16
Trance Advanced 27.5 - 2014-16
Trance SX 27.5 - 2014-16
XTC 27.5 - 2014-16
XTC Advanced 27.5 - 2014-16

Attaches to frame with:

(1) M3x14 flat head screw
(1) M4x14 Flat head screw

Fasteners Included
Replaces Giant CONVERSION REAR END 135x5 QR ver.2
For use with QR Skewer / axle hub

Giant
Anthem 27.5 - 9x135 - 2014-16
Anthem Advanced 27.5 - 9x135 - 2014-16
Intrigue 27.5 - 9x135 - 2014-16
Lust 27.5 - 9x135 - 2014-16
Lust Advanced 27.5 - 9x135 - 2014-16
Obsess Advanced 27.5 - 9x135 - 2014-16
Trance 27.5 - 9x135 - 2014-16
Trance Advanced 27.5 - 9x135 - 2014-16
Trance SX 27.5 - 9x135 - 2014-16
XTC 27.5 - 9x135 - 2014-16
XTC Advanced 27.5 - 9x135 - 2014-16

Attaches to frame with (1) M4x16 socket head screw
Fastener not Included

Focus
Mares CX, AX - 2015-16

Thru Axle Thread Pitch: M12x1.75
Attaches to frame with (1) M8 Chainring bolt
Fastener Included
Replaces:
Jamis #65-0001

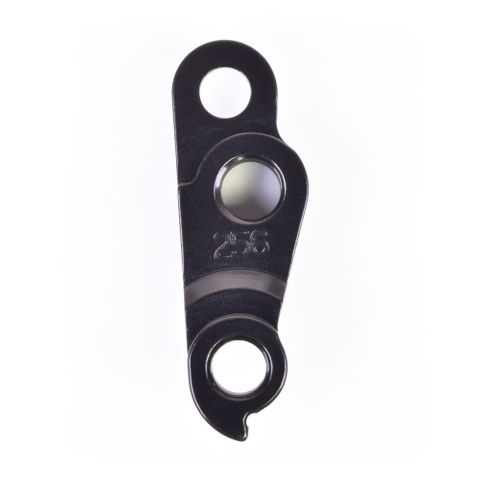

Note: DROPOUT-256 is for M12x1.75 thru axles. If using a M12x1.5 thru axle, use DROPOUT-343.


Airborne

Goblin Evo - ---

iZip

Dash w/M12x1.75 TA - 2016-2018
Peak w/M12x1.75 TA - 2016
Protour w/M12x1.75 TA - 2016-2017
Urban+ w/M12x1.75 TA - 2017-2018

Jamis

Dakar XCR Sport - 2013
Dakar XCT 650 Comp with 12x142 rear axle - 2014
Dakota D29 Pro - 2017
Dakota D29 Race - 2017
Dakota D29 Team - 2017
Defcon 1/2/3 - 2017
Halo XCT Comp - 2017
Halo XCT Pro - 2017
Nemesis Pro - 2017
Nemesis Race - 2017
Nemesis Team - 2017

Raleigh

Route w/M12x1.5 TA - 2016
Sprint w/M12x1.5 TA - 2016-2017

Rocky Mountain

Blizzard -50, -30 - 2015-2016

Whyte

529 w/12x1.75 TA - 2019
629 w/12x1.75 TA - 2019
901 w/12x1.75 TA - 2019
901 w/12x1.75 TA - 2017-2018
905 w/12x1.75 TA - 2019
905 w/12x1.75 TA - 2017-2018
909 w/12x1.75 TA - 2019
909 w/12x1.75 TA - 2017-2018
FRISTON w/12x1.75 TA - 2017-2019
GISBURN w/12x1.75 TA - 2017-2019
GLENCOE w/12x1.75 TA - 2018
GLENCOE w/12x1.75 TA - 2019
WESSEX Di2 w/12x1.75 TA - 2018-2019
WESSEX ONE w/12x1.75 TA - 2017-2019
WESSEX SE w/12x1.75 TA - 2017-2019
WESSEX w/12x1.75 TA - 2017-2019

Attaches to frame with (1) M8 Chainring bolt
Fastener Included
Replaces Jamis #65-0003

Note: For 12x142mm Thru Axle hub/dropouts.

Jamis

Dakar XCT 650 Team, Pro, Race with 12x142 rear axle - 2014
Supernova Elite - 2017
Supernova Team - 2017

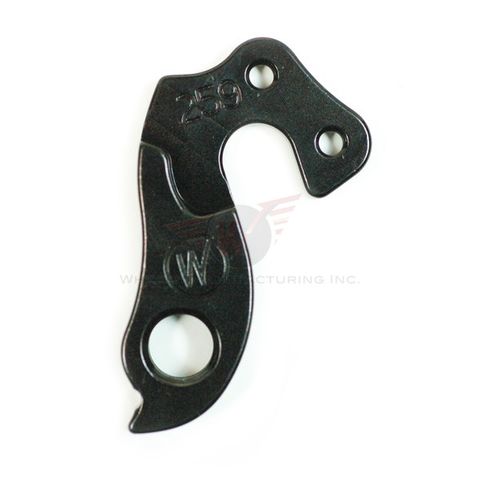

Attaches to frame with (2) M4x8 Flat Head Screws
Fasteners not Included
Replaces:
Ghost #EZ1954

Note: DROPOUT-259 is very similar to Ghost hanger EZ1822, but is not an exact fit. This includes some 2015 Kato FS and FS E:I models.

Ghost
Cross - 2012-14
HTX 29 - 2015
Kato - 2015-16
Lanao - 2015-16
Lector 29 - 2015
Panamao 5/6/7 - 2015-16
Panamao X 5/6/7 - 2015-16
SE - 2015
SE 29 - 2015
Tacana - 2015-16
The Hood - 2015-16

Attaches to frame with (2) M4x10 Flat head screws
Fasteners included
Replaces Ghost #EZ2011

Ghost

Nivolet LC (4, 5, 6, 7, 8) - 2015
Nivolet Tour Disc LC - 2016
Race Lector - 2014
Race Lector 7000 - 2013
Race Lector Pro - 2013

Lapierre

SENSIUM - 2015-2016
SENSIUM 100 - 2013-2014
SENSIUM 200 - 2013-2014
SENSIUM 200L - 2015
SENSIUM 300 - 2013-2014
SENSIUM 400 - 2013-2014
SENSIUM 500 - 2013-2014
SENSIUM ERASER - 2013
SENSIUM W - 2016
SHAPER 500 - 2016
SHAPER 600 - 2016
SHAPER 700 - 2014-2015
SHAPER 900 - 2013-2015

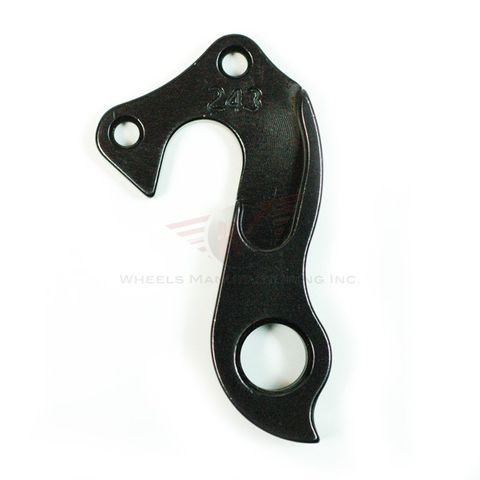

Attaches to frame with (2) M4x8 Flat head screws
Fasteners not included
Replaces:
Jamis #65-0007
Novara #Q28-4139

Note:

This dropout is very similar to DROPOUT-243. Look carefully at the machined cutout on this hanger and DROPOUT-243 to determine which hanger fits your frame.

Novara
Big Buzz - 2015-2016
Buzz X - 2015-2016
Carema 2A -
Carema 3D -
Carema 5d - 2015-2016
Cortona - 2016
Cortona Donna - 2016
Strada 3D - 2016
Strada 5D - 2015-2016

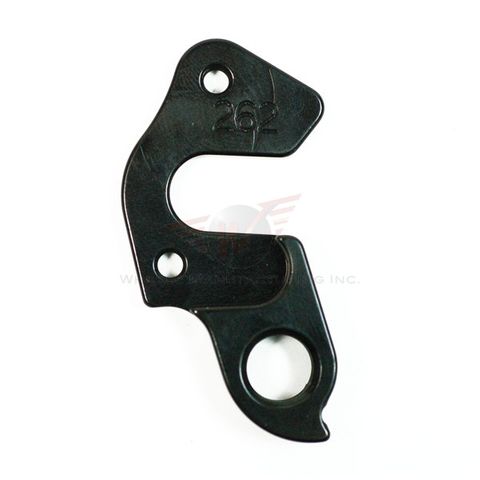

Attaches to frame with (2) M4x8 Flat head screws included.

Blue
Triad SP, EX, SL - 2011-2016

Attaches to frame with (2) M4x14 Flat head screws
Fasteners not included
Replaces Giant REIGN CONVERSION REAR END 142x12 TA ver.2 (RE215B)

Giant
Reign - 2015-2016
Reign Advanced - 2015-2016

Attaches to frame with (2) M3x8 Flat head screws
Fasteners included
GT Hanger #ATIDH0233 or K33047



Note: This is not a Shimano direct mount hanger. If using a Shimano direct mount derailleur, use DROPOUT-350.

GT
Helion Alloy QR - 2016
Sensor Alloy QR - 2016
Zaskar LE - 2016
Avalanche Comp- 2018

Attaches to frame with (3) M3x8 Flat head screws
Fasteners included

Novara
Barrow - 2016
Buzz - 2016
Mazama - 2015-16 Mazama
Safari - 2015-16

Distance between mounting holes: 28mm
Attaches to frame with (2) M3x8 flat head screws
Fasteners included
Replaces Cannondale Hanger #KP284

Important Note:

Cannondale made a running change in their KIDS TRAIL 24 bike production with early runs using a unique hanger (Cannondale part # KP316), which has different hole spacing than our DROPOUT-269. Measure the distance between the the hanger mounting holes. DROPOUT-269 mounting holes are 28mm apart center-to-center. Cannondale KP316 is 24mm. Later runs of KIDS TRAIL 24 frames will use DROPOUT-269.


Cannondale

Adventure Series - 2017-2018
Althea Series - 2016-2018
Bad Boy 2/3/4 - 2016-2018
Catalyst - 2016-2018
Contro 3/4 - 2015-2016
Cujo - 2017-2018
Foray - 2017-2018
Kids Cujo 20 & 24 - 2018
Kids Quicks - 2018
Kids Race 24 - 2014-2017
Kids Street 24 - 2014-2017
Kids Trail 20 - 2018
Kids Trail 24 - 2013-2018
Law Enforcement - 2016-2017
Mavaro Neo 1/3 - 2018
Quick - 2016-2018
Quick CX - 2015-2018
Quick Neo - 2018
Rush 29 - 2014
Scarlet - 2018
Tango - 2016-2018
Tesoro Neo - 2018
Trail 29 - 2014
Trail Series - 2015-2018

Attaches to frame with (1) M8 Chainring Bolt
Fastener Included

DH27 BLUE, DIAMONDBACK, FUJI, IRON HORSE, KHS, MARIN, SCHWINN, TREK

Attaches to frame with (2) M4x10 flat head screws
Fasteners included
Replaces Kona Hanger Type KK

Kona
Blast - 2015
Blast Scandium - 2016
Cinder Cone - 2014-2016
Kahuna Deluxe - 2012-2015
Kahuna DL - 2016
Kula - 2012-2013, 2015
Kula Watt - 2012-2013
Mohala - 2016

Attaches to frame with (2) M4x12 Flat head screws
Fastener not Included
Replaces Focus part # KD325914001

Focus
CX3 - 2015
Izalco Max - 2014-15

Ghost
Riot 5, 7, 9 - 2015
Riot LT 6, 8, 10 - 2015

Attaches to frame with (1) M8 Chainring bolt
Fastener Included
Replaces Marin part #37-718515


Marin

Argenta (Elite) - 2017
Bayview SE + DISC - 2016
Bayview Trail Disc - 2015-2019
Bobcat Trail (Hardtail / Race) - 2015-2019
Bobcat Trail 27.5" - 2015-2019
Bobcat Trail 29er - 2015-2019
Bolinas Ridge V-brakes - 2015
Fairfax SC (DISC) - 2015-2018
Fairfax SC (NON-DISC) - 2015-2018
Fairfax SC2 IG - 2017-2018
Fairfax SC6 - 2017-2018
Gestalt 1, 2. X10, X11 - 2016-2018
Gestalt 1-2 - 2016
Gestalt Base - 2016-2018
Juniper Trail (Hardtail / Race) - 2015
Juniper Trail 27.5" - 2015
Lombard - 2016-2017
Nail Trail - 2015-2016
Nail Trail 27.5" - 2015-2016
Nail Trail 29er - 2015-2016
Ravenna - 2017
Rock Springs - 2017
San Anselmo (DISC) - 2015-2019
San Anselmo (NON-DISC) - 2015-2018
San Quentin 1 - 2019
San Rafael DS (DISC) - 2015-2019
San Rafael DS (NON-DISC) - 2015-2018
San Rafael DS E-Bike - 2018-2019
Terra Linda - 2015-2018
Terra Linda 2 - 2019
Wildcat Trail - 2015-2016
Wildcat Trail 3 27.5" - 2017-2019
Wildcat Trail 5 27.5" - 2017-2019

Attaches to frame with (1) M3x8 flat head screw
Fastener Included
Replaces Norco part #959375-15-2

Note: This hanger is not the same as our DROPOUT-337, which uses an M4 flat head screw.

Norco
OPTIC C7 SERIES - 2016
OPTIC C9 SERIES - 2016
RANGE A7 SERIES - 2016
RANGE ALLOY - 2015
REVOLVER 7 SERIES - 2016
REVOLVER 9 SERIES - 2016
SIGHT ALLOY - 2015

Norco part #959375-16
(1) M8-DROP192BOLT included


NOTES:

For use with direct mount Shimano XTR, XT or SLX rear derailleur.
If using direct mount Shimano Saint derailleur, use DROPOUT-276.
If using any non-direct mount rear derailleur use DROPOUT-202
