Derailleur Hangers

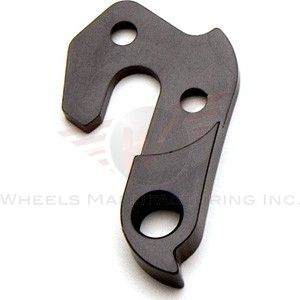

Attaches to frame with (1) M4x14 Flat head screw
Fastener not Included
Replaces Pinarello part #PI-DROP-OUT-TA-RIGHT-IN

Pinarello

Andromeda - 2019
Dogma F10 Disc - 2018-2019
Dogma K10S Disc - 2018-2019
Dogma XC 7.7 - 2017-2019
Dogma XC 9.9 - 2017-2019
Dogma XM 9.9 - 2014-2018
F8 Disc - 2017
Gan Disk - 2018-2019
Gan GR Disk - 2017-2019
Gan GRS Disk - 2017-2019
Gan K Disk - 2017-2019
K8-S Disc - 2017
Nytro - 2018-2019
Prince Disk - 2019
Rokh XC 9.9 - 2015-2019

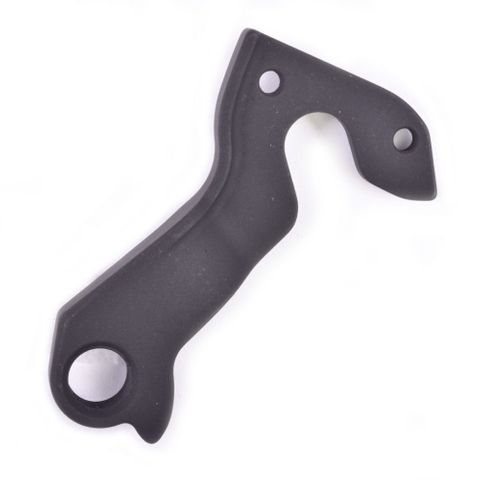

Attaches to frame with (2) M3x10 Flat head screw
Fasteners not Included
For Shimano Direct Mount derailleurs
Replaces GT part #K33027

Note: This hanger is for Shimano direct mount rear derailleurs. If using a Shimano or other brand standard mount derailleur, use DROPOUT-266.

GT

Backwoods (Shimano Direct Mount) - 2017
ePantera (Shimano Direct Mount) - 2018
Pantera (Shimano Direct Mount) - 2017-2018
Zaskar (Shimano Direct Mount) - 2017-2018

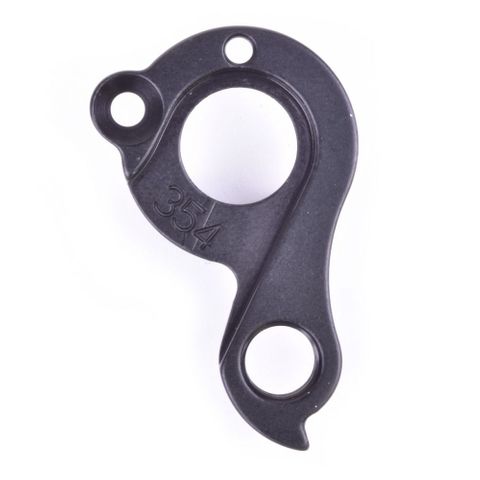

Attaches to frame with (1) M4x16 Flat head screw and (1) M4-16 socket head screw
Fasteners not Included
For Shimano Direct Mount derailleurs
Replaces GT part #KG0007N02

GT

Force (Shimano Direct Mount) - 2017-2018
Force Carbon (Shimano Direct Mount) - 2014
Helion (Shimano Direct Mount) - 2016-2018
Sanction (Shimano Direct Mount) - 2016-2018
Sensor (Shimano Direct Mount) - 2014-2018
Zaskar Carbon (Shimano Direct Mount) - 2016-2018

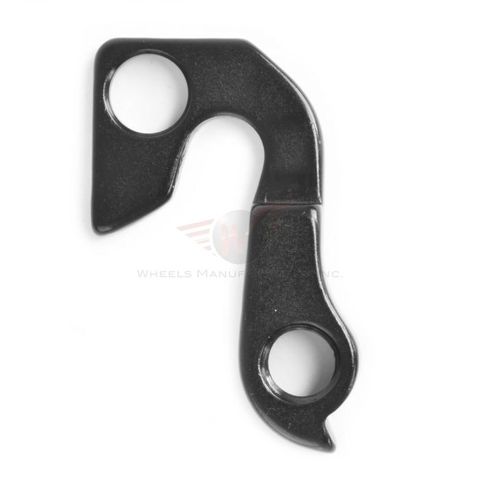

Attaches to frame with (1) M8 CHAINBOLT
Fastener not Included
Replaces GT part #K33177

Note: This hanger does not have a threaded hole for the fastener. If your hanger has a threaded hole, look at DROPOUT-94.

GT

Nomad - 2016-2018
Passage - 2017
Roundabout - 2017
Talera - 2017
Traffic Series - 2016-2018
Transeo - 2016-2018

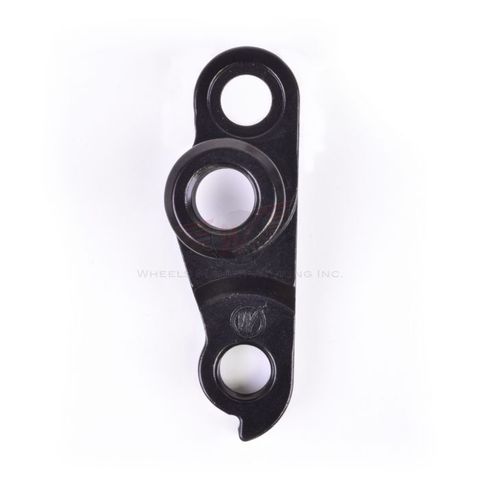

- Attaches to frame with (2) M4-16 socket head screws
- Fasteners not Included
- Replaces Fuji part #D027

FUJI

Outland - 2018
Outland 1.1 - 2013-2015
Outland 29 1.1 - 2013-2015
Reveal - 2013
Reveal - 2015
Reveal - 2018
Reveal 1.1 & 1.3 - 2014
Reveal 29 - 2013-2015
Reveal 29 1.1 - 2016
Reveal 29 1.3 - 2016
Reveal 29 1.5 - 2016
SLM 26 2.2 LE - 2016
SLM 26 2.4 LE - 2016
SLM 27.5 - 2015
SLM 27.5 1.1 - 2016
SLM 27.5 1.3 - 2016
SLM 27.5 1.5 - 2016
SLM 27.5 2.1 - 2016
SLM 27.5 2.2 LE - 2016
SLM 27.5 2.3 - 2016
SLM 27.5 2.4 LE - 2016
SLM 27.5 2.5 - 2016
SLM 27.5 2.7 - 2016
SLM 27.5 Frameset - 2016
SLM 29 - 2014-2015
SLM 29 1.1 - 2016
SLM 29 1.3 - 2016
SLM 29 1.5 - 2016
SLM 29 2.1 - 2016
SLM 29 2.2 LE - 2016
SLM 29 2.3 - 2016
SLM 29 2.4 LE - 2016
SLM 29 2.5 - 2016
SLM 29 2.7 - 2016

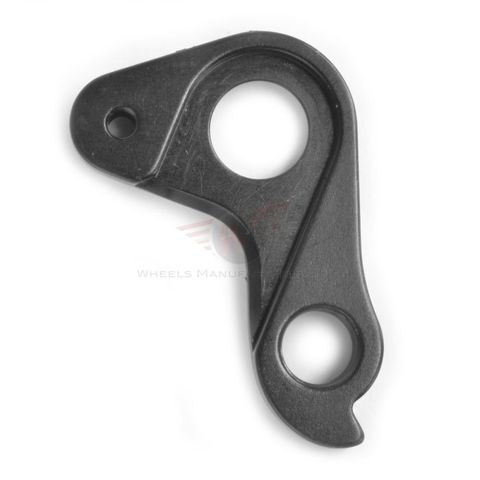

Attaches to frame with (1) M4x8 Flat head screw
Fastener not Included
Replaces Fuji part #D034

Fuji

Cross - 2017-2018
Gran Fondo 1.1D - 2016-2019
Gran Fondo 1.3D - 2016-2019
Gran Fondo 1.5D - 2019
Gran Fondo 2.1D - 2016-2018
Gran Fondo 2.3D - 2016-2018
Gran Fondo 2.5D - 2016-2017
Jari - 2017-2018

Salsa : Carbon Beargrease - All

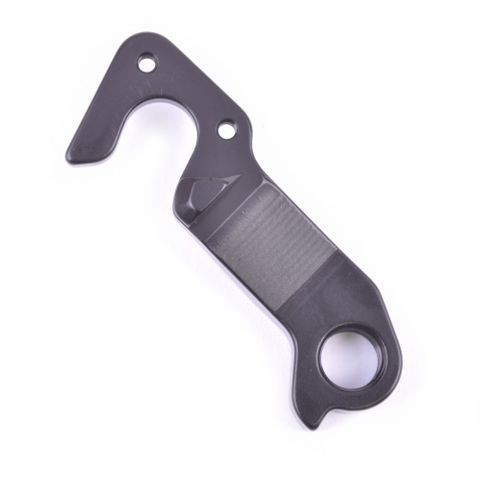

Attaches to frame with (1) M4x16 Socket head screw
Fastener not Included
Replaces Salsa part #F82323

- Attaches to frame with (1) M3x8 Flat head screws
- Fastener not Included
- Replaces Norco Part #959371-8-7


NORCO

Search C - 2015-2016
Search Carbon - 2017
Tactic Carbon Disc - 2017
Tactic SL Disc - 2016
Threshold C - 2015
Threshold C 105/Rival/SL Force/SL ULT - 2016
Threshold Carbon - 2017

Attaches to frame with (1) M8 Chainring Bolt
Fastener included
Replaces:

Jamis Part #12-0779


Jamis
Aragon - 2006
Citizen 2.0 - 2007-2008
Explorer 2.0 - 2006-2007
Explorer 3.0 - 2006
Tangier - 2006

K2
Zed 1.0 - 2002
Zed 2.0 - 2001
Zed 2.0 - 2002

Replaces Norco Part #913015-001-2
For use with M12x1.75 MAXLE Thru Axles
Mounting hardware not included

Note: DROPOUT-361 is the same hanger, but with threads for M12x1.0 Thru Axle.

Norco

Revolver Carbon FS - 2019
Search XR Alloy - 2019
Search XR Steel - 2018
Section Alloy - 2019
Section Carbon - 2019

Replaces Norco Part #913015-001-1
For use with M12x1.0 Thru Axles
Mounting hardware not included.

Note: DROPOUT-360 is the same hanger, but with threads for M12x1.75 MAXLE Thru Axle.

Norco

Aurum Alloy - 2015-2018
Aurum Carbon - 2015-2018
Aurum HSP - 2019
Range Alloy - 2017-2019
Range Carbon - 2017-2019

Attaches to frame with (2) M4x8 flat head screws
Fasteners not included
Replaces Pinarello Part #PI-DROP-OUT-RD-DM
For use Shimano Direct Mount Derailleur


Note: DROPOUT-138 is the same hanger, but for use with standard mount derailleur.


Eddy Merckx

EMX3 (Shimano DM) - 2010 and earlier
EMX5 (Shimano DM) - 2010 and earlier

Pinarello

Angrilu (Shimano DM) - 2018-2019
Dogma 2 (Shimano DM) - 2015
Dogma 65.1 (Shimano DM) - 2013-2015
Dogma 65.1 Hydro (Shimano DM) - 2013-2015
Dogma 65.1 Paul Smith (Shimano DM) - 2014
Dogma 65.1 World Champion (Shimano DM) - 2014
Dogma Carbon (Shimano DM) - 2010-2013
Dogma F10 (Shimano DM) - 2017-2019
Dogma F10 King of Spain 2017 (Shimano DM) - 2018
Dogma F10 TDF 2017 (Shimano DM) - 2018
Dogma F10 Team Sky (Shimano DM) - 2018-2019
Dogma F10 X-Light (Shimano DM) - 2018-2019
Dogma F100 - Giro D'Italia 2017 (Shimano DM) - 2017-2018
Dogma F101 - Giro D'Italia 2018 (Shimano DM) - 2018-2019
Dogma F12 (Shimano DM) - 2019
Dogma F8 (Shimano DM) - 2015-2018
Dogma F8 - TDF 2016 (Shimano DM) - 2017
Dogma F8 - TDF2015! (Shimano DM) - 2016
Dogma F8 Disk (Shimano DM) - 2016
Dogma F8 Xlight - TDF 2016 (Shimano DM) - 2017
Dogma F8W (Shimano DM) - 2016
Dogma K10S (Shimano DM) - 2018
Dogma K8 (Shimano DM) - 2017
Dogma K8-S (Shimano DM) - 2015
Dogma K8-S (Shimano DM) - 2016-2017
FCX (Shimano DM) - 2018
FCX Hydro (Shimano DM) - 2014-2017
FP Due (Shimano DM) - 2012
FP Quatro (Shimano DM) - 2011-2012
FP2 (Shimano DM) - 2011
FP3 (Shimano DM) - 2011
FP7 (Shimano DM) - 2010
FPTEAM (Shimano DM) - 2014
Gan (Shimano DM) - 2016-2019
Gan Disk (Shimano DM) - 2016-2017
Gan RS (Shimano DM) - 2016-2018
Gan S (Shimano DM) - 2016-2018
Marvel (Shimano DM) - 2014-2015
Mercurio Disk (Shimano DM) - 2018-2019
Mercurio T2 Hydro (Shimano DM) - 2015-2017
Neor (Shimano DM) - 2014-2019
Paris (Shimano DM) - 2014
Paris (Shimano DM) - 2011-2013
Prima (Shimano DM) - 2018-2019
Prince (Shimano DM) - 2015
Prince (Shimano DM) - 2019
Prince (Shimano DM) - 2008-2010
Prince 60.3 (Shimano DM) - 2016
Prince FX (Shimano DM) - 2019
Razha (Shimano DM) - 2014-2019
Treviso Carbon Disk (Shimano DM) - 2016
Treviso Carbon Hydro (Shimano DM) - 2015
Treviso Disk (Shimano DM) - 2017-2019

- Attaches to frame with (2) M4x8 Flat head screws
- Fasteners not Included

Haro

Flightline Monster Energy Edition - 2012

Masi

Campus - 2016

- Fastener not Included
- For Shimano Direct Mount derailleurs
- M12x1.0 Thru Axle
- Replaces Scott Part #254093-222


Scott

Aspect eRide 10, 20, 30, 40 (Shimano DM) - 2019
Axis eRide 10 Men (Shimano DM) - 2019
Axis eRide 20 Lady (Shimano DM) - 2019
Axis eRide 20 Men (Shimano DM) - 2019
Axis eRide EVO (Shimano DM) - 2019
Contessa Aspect eRide 10, 20 (Shimano DM) - 2019
Contessa Genius 710, 720, 730 (Shimano DM) - 2018-2019
Contessa Genius eRide 710, 720 (Shimano DM) - 2019
Contessa Spark 700 (Shimano DM) - 2017
Contessa Spark 710 (Shimano DM) - 2017-2018
Contessa Spark 710 Plus (Shimano DM) - 2017
Contessa Spark 720 (Shimano DM) - 2017
Contessa Spark 720 Plus (Shimano DM) - 2017
Contessa Spark 910 (Shimano DM) - 2018-2019
Contessa Spark 920 (Shimano DM) - 2018-2019
Contessa Spark 930 (Shimano DM) - 2018-2019
Contessa Spark eRide 710 (Shimano DM) - 2019
Contessa Strike eRide 710, 720 (Shimano DM) - 2019
E-Contessa Genius 720 (Shimano DM) - 2018
E-Contessa Spark 710 (Shimano DM) - 2018
E-Genius 700 Tuned (Shimano DM) - 2018
E-Genius 710, 720 (Shimano DM) - 2018
E-Genius 920 (Shimano DM) - 2018
E-Spark 700 Tuned (Shimano DM) - 2018
E-Spark 710 (Shimano DM) - 2018
E-Spark 720, 730 (Shimano DM) - 2018
Genius 710, 720, 730, 740, 750 (Shimano DM) - 2018-2019
Genius 760 (Shimano DM) - 2019
Genius 910, 950, 960 (Simano DM) - 2019
Genius 920, 930, 940 (Shimano DM) - 2018-2019
Genius eRide 710, 720 (Shimano DM) - 2019
Genius eRide 900 TUNED (Shimano DM) - 2019
Genius eRide 910, 920 (Shimano DM) - 2019
Scale 940 - 2018
Scale 940 (Shimano DM) - 2018
Scale 950 (Shimano DM) - 2018-2019
Spark 600, 700, Pro 700 (Shimano DM) - 2019
Spark 700 (Shimano DM) - 2017
Spark 710 Plus (Shimano DM) - 2017
Spark 710, 720 (Shimano DM) - 2017-2018
Spark 720 Plus (Shimano DM) - 2017
Spark 730 (Shimano DM) - 2017-2018
Spark 730 Plus (Shimano DM) - 2017
Spark 740 (Shimano DM) - 2017-2018
Spark 745, 750 (Shimano DM) - 2017
Spark 900 (Shimano DM) - 2017-2018
Spark 910, 920 (Shimano DM) - 2017-2018
Spark 920, 960, 970 (Shimano DM) - 2019
Spark 930, 940, 950 (Shimano DM) - 2017-2019
Spark 945 (Shimano DM) - 2017
Spark eRide 910, 920, 930 (Shimano DM) - 2019
Spark RC 900 Comp (Shimano DM) - 2018-2019
Strike eRide 710, 720, 730 (Shimano DM) - 2019
Strike eRide 910, 920, 930 (Shimano DM) - 2019

- Attaches to frame with (1) special M4 socket head screw
- Fastener not Included
- For standard mount derailleurs
- Replaces Scott Part #254090-222


Scott

Contessa Scale 900 - 2018-2019
Contessa Scale RC 700 - 2017
Contessa Scale RC 900 - 2018-2019
Contessa Spark RC 700 - 2017
Contessa Spark RC 900 - 2018-2019
Genius 700 Tuned - 2018
Genius 700 Ultimate - 2018
Genius 900 Tuned - 2018-2019
Genius 900 Ultimate - 2019
Scale 700 - 2017
Scale 710, 720 - 2017
Scale 900 - 2013
Scale 910 - 2017-2019
Scale 915, 925, 935 - 2018
Scale 920 - 2017-2019
Scale 930 - 2018-2019
Scale 940 - 2019
Scale Pro 700 - 2019
Scale RC 700 Pro - 2017
Scale RC 700 SL - 2017
Scale RC 700 Ultimate - 2017
Scale RC 700 World Cup - 2017
Scale RC 900 Pro - 2017-2019
Scale RC 900 SL - 2017-2019
Scale RC 900 Team - 2019
Scale RC 900 Ultimate - 2017
Scale RC 900 World Cup - 2017-2019
Spark 700 Plus Tuned - 2017
Spark 700 Premium - 2017
Spark 700 Tuned - 2018
Spark 700 Ultimate - 2017-2018
Spark 900 Premium - 2017-2019
Spark 900 Ultimate - 2017-2019
Spark 910 - 2019
Spark RC 700 Pro - 2017
Spark RC 700 SL - 2017
Spark RC 700 Ultimate - 2017
Spark RC 700 World Cup - 2017
Spark RC 900 LTD, RC - 2019
Spark RC 900 Pro - 2017-2019
Spark RC 900 SL - 2017-2019
Spark RC 900 Team - 2018-2019
Spark RC 900 Ultimate - 2017
Spark RC 900 World Cup - 2017-2019

- Replaces Santa Cruz Part #23-18684
- Fits Santa Cruz frames with 12x148 thru axle only

Santa Cruz

5010 al3 - 2018+
5010 c3 - 2018+
Blur c3 - 2018+
Bronson al3 - 2018+
Bronson c3 - 2018+
Highball c3 - 2018+

Transition

Models manufactured on or after 2015 (Excludes the TR500, Triple, Rapture, PBJ and BLT). - 2015+

For M12x1.0 Thru Axles
Replaces Transition part #01.18.93.0001

For all Transition models manufactured on or after 2015 (Excludes the TR500, Triple, Rapture, PBJ and BLT).

Jamis
Dakar - 1996
Dakar Sport - 1996-1997
Dakar Team - 1996-1997

- Attaches to frame with (1) M8 Chainring Bolt
- Fastener Not Included
- For M12x1.75 Thru Axles
- Replaces Turner part # DHR-Hang11


Turner

5 Spot - 2012+
Burner - 2013+
Cyclosys - 2015+
Czar - 2013+
DHR - 2010+
Flux - 2012+
Flux 275 - 2013+
Sultan - 2012+

- Attaches to frame with (1) special M4 socket head screw
- Fastener not Included
- For Shimano Direct Mount derailleurs
- Replaces Scott Part ##254091-222


Scott

Contessa Scale 900 (Shimano DM) - 2018-2019
Contessa Scale RC 700 (Shimano DM) - 2017
Contessa Scale RC 900 (Shimano DM) - 2018-2019
Contessa Spark RC 700 (Shimano DM) - 2017
Contessa Spark RC 900 (Shimano DM) - 2018-2019
Genius 700 Tuned (Shimano DM) - 2018
Genius 700 Ultimate (Shimano DM) - 2018
Genius 900 Tuned (Shimano DM) - 2018-2019
Genius 900 Ultimate (Shimano DM) - 2019
Ransom 700 Tuned (Shimano DM) - 2019
Ransom 720 (Shimano DM) - 2019
Ransom 900 Tuned (Shimano DM) - 2019
Ransom 910, 920, 930 (Shimano DM) - 2019
Scale 700 (Shimano DM) - 2017
Scale 710, 720 (Shimano DM) - 2017
Scale 900 (Shimano DM) - 2013
Scale 910 (Shimano DM) - 2017-2019
Scale 915, 925, 935 (Shimano DM) - 2018
Scale 920 (Shimano DM) - 2017-2019
Scale 930 (Shimano DM) - 2018-2019
Scale 940 (Shimano DM) - 2019
Scale Pro 700 (Shimano DM) - 2019
Scale RC 700 Pro (Shimano DM) - 2017
Scale RC 700 SL (Shimano DM) - 2017
Scale RC 700 Ultimate (Shimano DM) - 2017
Scale RC 700 World Cup (Shimano DM) - 2017
Scale RC 900 Pro (Shimano DM) - 2017-2019
Scale RC 900 SL (Shimano DM) - 2017-2019
Scale RC 900 Team (Shimano DM) - 2019
Scale RC 900 Ultimate (Shimano DM) - 2017
Scale RC 900 World Cup (Shimano DM) - 2017-2019
Spark 700 Plus Tuned (Shimano DM) - 2017
Spark 700 Premium (Shimano DM) - 2017
Spark 700 Tuned (Shimano DM) - 2018
Spark 700 Ultimate (Shimano DM) - 2017-2018
Spark 900 Premium (Shimano DM) - 2017-2018
Spark 900 Ultimate (Shimano DM) - 2017-2018
Spark 910 (Shimano DM) - 2019
Spark RC 700 Pro (Shimano DM) - 2017
Spark RC 700 SL (Shimano DM) - 2017
Spark RC 700 Ultimate (Shimano DM) - 2017
Spark RC 700 World Cup (Shimano DM) - 2017
Spark RC 900 LTD, RC (Shimano DM) - 2019
Spark RC 900 Pro (Shimano DM) - 2017-2019
Spark RC 900 SL (Shimano DM) - 2017-2019
Spark RC 900 Team (Shimano DM) - 2018-2019
Spark RC 900 Ultimate (Shimano DM) - 2017
Spark RC 900 World Cup (Shimano DM) - 2017-2019

- Attaches to frame with (1) special M5 flat head screw
- Fastener not Included
- For standard mount derailleurs
- For M12x1.0 Thru Axle
- Replaces Scott Part ##254092-222


Scott

Aspect eRide 10, 20, 30, 40 - 2019
Axis eRide 10 Men - 2019
Axis eRide 20 Lady - 2019
Axis eRide 20 Men - 2019
Axis eRide EVO - 2019
Contessa Aspect eRide 10, 20 - 2019
Contessa Genius 710, 720, 730 - 2018-2019
Contessa Genius eRide 710, 720 - 2019
Contessa Spark 700 - 2017
Contessa Spark 710 - 2017-2018
Contessa Spark 710 Plus - 2017
Contessa Spark 720 - 2017
Contessa Spark 720 Plus - 2017
Contessa Spark 910 - 2018-2019
Contessa Spark 920 - 2018-2019
Contessa Spark 930 - 2018-2019
Contessa Spark eRide 710 - 2019
Contessa Strike eRide 710, 720 - 2019
E-Contessa Genius 720 - 2018
E-Contessa Spark 710 - 2018
E-Genius 700 Tuned - 2018
E-Genius 710, 720 - 2018
E-Genius 920 - 2018
E-Spark 700 Tuned - 2018
E-Spark 710 - 2018
E-Spark 720, 730 - 2018
Genius 710, 720, 730, 740, 750 - 2018-2019
Genius 760 - 2019
Genius 910, 950, 960 - 2019
Genius 920, 930, 940 - 2018-2019
Genius eRide 710, 720 - 2019
Genius eRide 900 TUNED - 2019
Genius eRide 910, 920 - 2019
Scale 950 - 2018-2019
Spark 600, 700, Pro 700 - 2019
Spark 700 - 2017
Spark 710 Plus - 2017
Spark 710, 720 - 2017-2018
Spark 720 Plus - 2017
Spark 730 - 2017-2018
Spark 730 Plus - 2017
Spark 740 - 2017-2018
Spark 745, 750 - 2017
Spark 900 - 2017-2018
Spark 910, 920 - 2017-2018
Spark 920, 960, 970 - 2019
Spark 930, 940, 950 - 2017-2019
Spark 945 - 2017
Spark eRide 910, 920, 930 - 2019
Spark RC 900 Comp - 2018-2019
Strike eRide 710, 720, 730 - 2019
Strike eRide 910, 920, 930 - 2019

Attaches to frame with (1) M5x10 Socket Head Screw
Fastener not Included
Same as Specialized Part # S162600004

Note: This hanger is not the same as our DROPOUT-284, which is for use with SCS 142x12 wheels.


Specialized

Allez Sprint Disc (with non-SCS 135x12 wheel) - 2019
CruX Elite X1 (with non-SCS 135x12 wheel) - 2017-2018
CruX Expert X1 (with non-SCS 135x12 wheel) - 2017-2018
CruX PRO FRMSET (with non-SCS 135x12 wheel) - 2017-2018
CruX SW (with non-SCS 135x12 wheel) - 2017-2018
CruX Thru Axle (with non-SCS 135x12 wheel) - 2016
Diverge Thru Axle (with non-SCS 135x12 wheel) - 2015-2019
Roubaix Disc Thru Axle (with non-SCS 135x12 wheel) - 2016-2019
Ruby Disc Brake (with non-SCS 135x12 wheel) - 2017-2019
Tarmac Disc Brake Thru Axle (with non-SCS 135x12 wheel) - 2018-2019
Venge Disc Thru Axle (with non-SCS 135x12 wheel) - 2017-2019

Specialized

Tarmac SL6 Disc w/Shimano Direct Mount - 2018-2019
Venge Disc w/Shimano Direct Mount - 2019

Attaches to frame with (1) M5x10 Socket Head Screw
Fastener not Included
For use with Shimano Direct Mount rear derailleurs
Replaces Specialized Part # S182600003

Note: For use on 2018-2019 Tarmac SL6 and 2019 Venge Disc frames only. Not a suitable replacement for older Specialized road disc thru axle frames.

Attaches to frame with (2) M3x10 socket head screws
For use with M12x1.5 Thru Axle
Fasteners included
Replaces Giant part #380000016

Giant

ANYROAD ADV - 2018-2019
AVAIL ADV - 2017-2019
AVAIL ADV PRO - 2017-2019
DEFY ADV - 2017-2019
DEFY ADV PRO - 2017-2019
DEFY ADV SL - 2017-2019
LANGMA ADV PRO Disc - 2018-2019
PROPEL ADV Pro Disc - 2018-2019
PROPEL ADV SL Disc - 2018-2019
TCR ADV PRO Disc - 2017-2019
TCR ADV SL Disc - 2017-2019
