Headsets

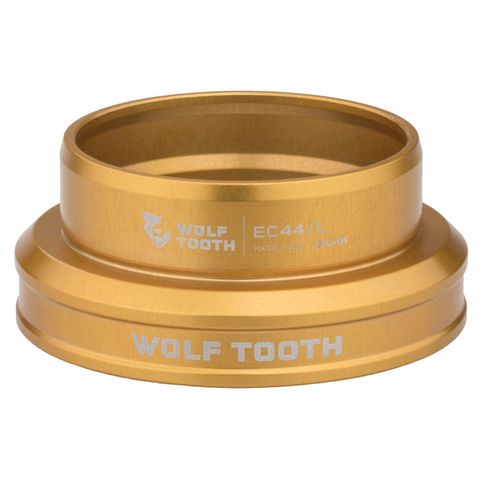

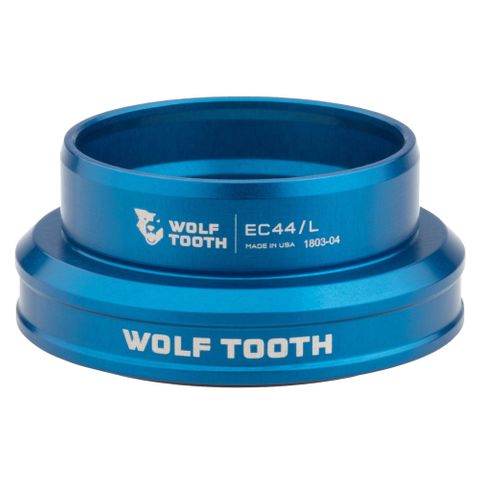

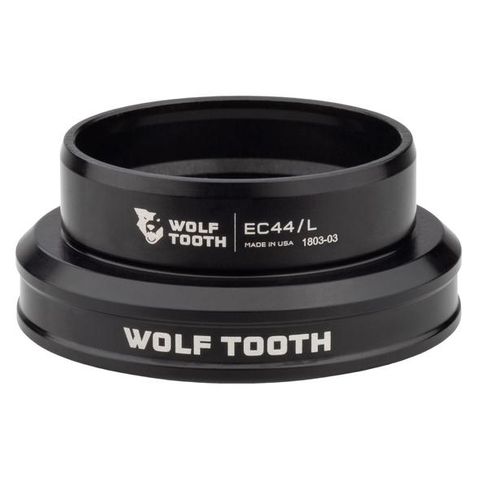

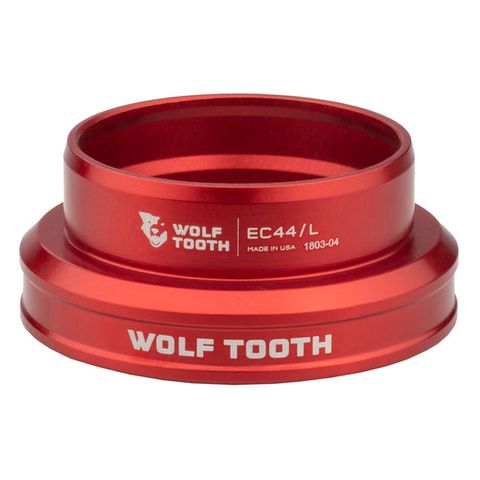

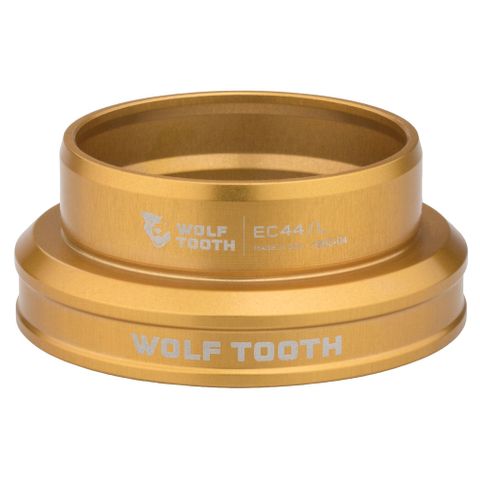

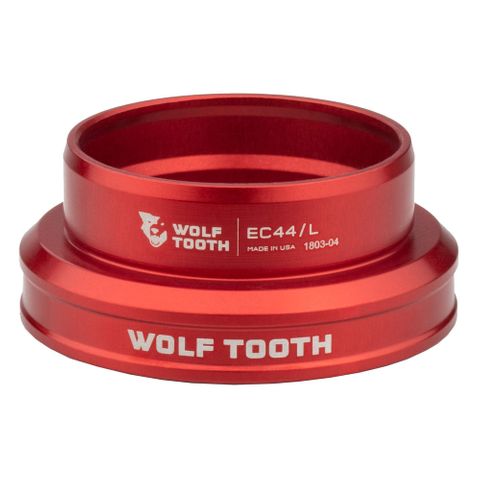

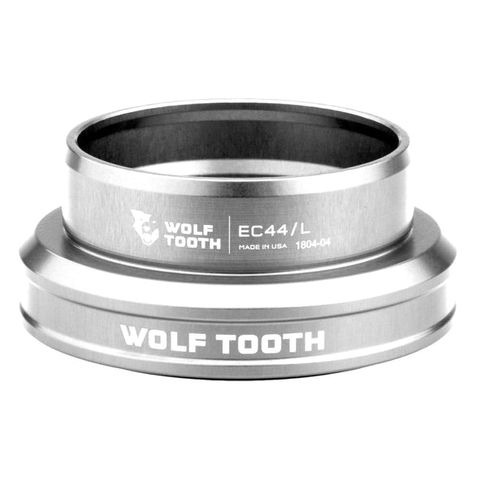

EC44/28.6 UPPER - EC44/40 LOWER Headtube Length: LONG 115-140mm

Adjust the geometry of your bike by changing the head tube angle by 1º with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1º to make for a slacker geometry for added stability on fast descents, or by +1º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Note: the EC44 Upper/EC44 Lower is the new design of the ZS44 Upper/EC44 Lower and can be used in its stead. This new design was implemented because the constraints of a head tube with 44mm upper and lower require the upper bearing to be housed above the head tube (as opposed to inside the head tube as it was with the ZS44 upper design) for optimal performance.

Compatibility:

- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

EC44/28.6 UPPER - EC44/40 LOWER Headtube Length: SHORT 90 -114mm

Adjust the geometry of your bike by changing the head tube angle by 1º with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1º to make for a slacker geometry for added stability on fast descents, or by +1º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Note: the EC44 Upper/EC44 Lower is the new design of the ZS44 Upper/EC44 Lower and can be used in its stead. This new design was implemented because the constraints of a head tube with 44mm upper and lower require the upper bearing to be housed above the head tube (as opposed to inside the head tube as it was with the ZS44 upper design) for optimal performance.

Compatibility:

- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

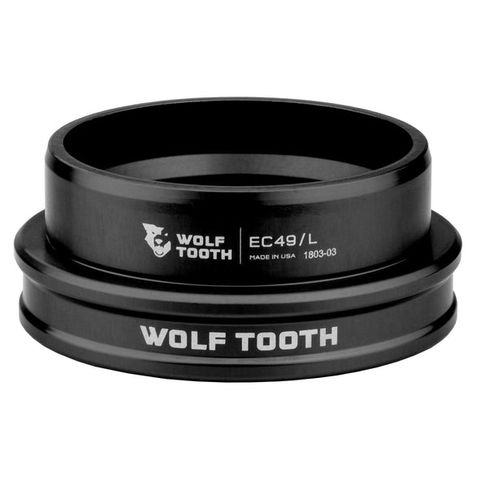

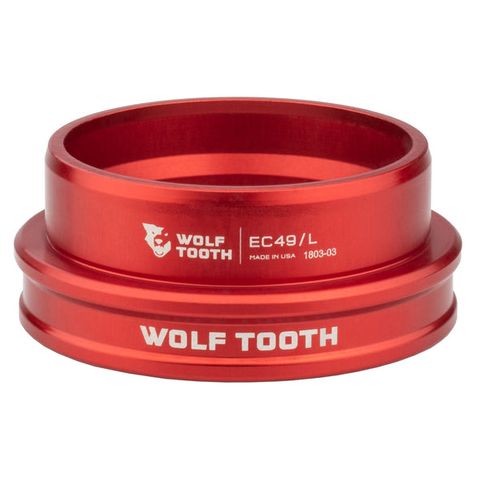

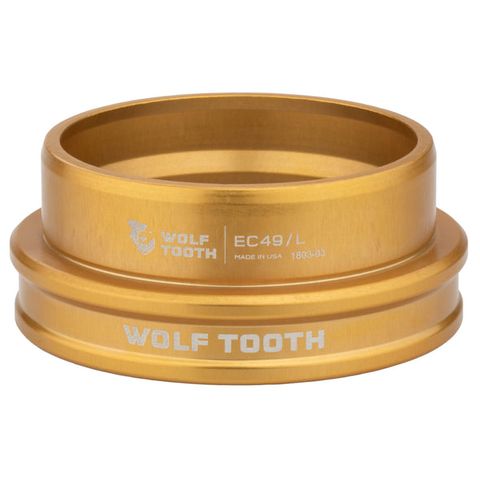

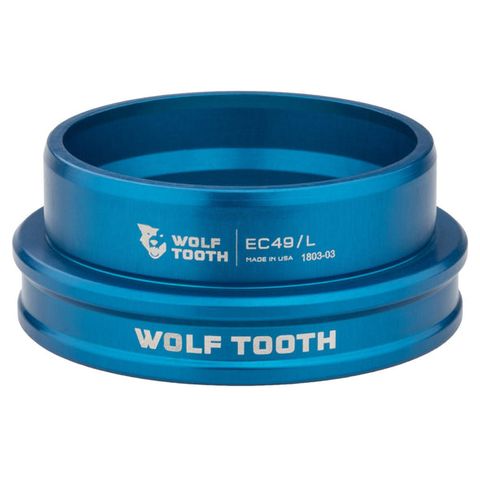

ZS44/28.6 UPPER - EC49/40 LOWER Headtube Length: LONG 115-140mm

Adjust the geometry of your bike by changing the head tube angle by 1º with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1º to make for a slacker geometry for added stability on fast descents, or by +1º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Compatibility:

- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

ZS44/28.6 UPPER - EC49/40 LOWER Headtube Length: SHORT 90 -114mm


Adjust the geometry of your bike by changing the head tube angle by 1º with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1º to make for a slacker geometry for added stability on fast descents, or by +1º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Compatibility:

- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

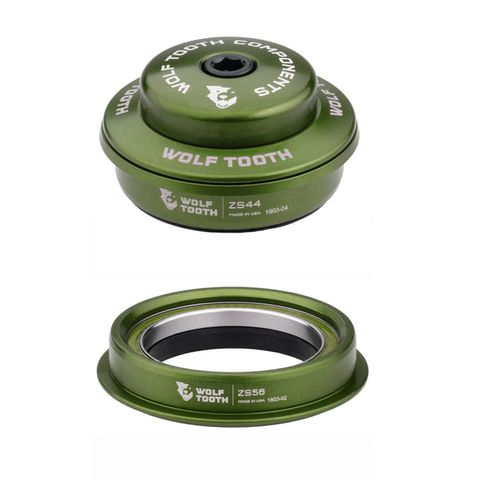

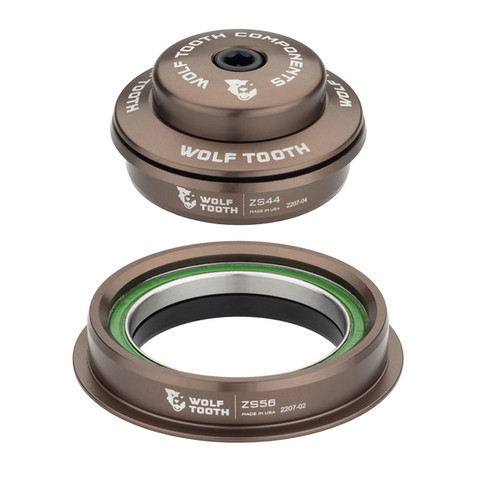

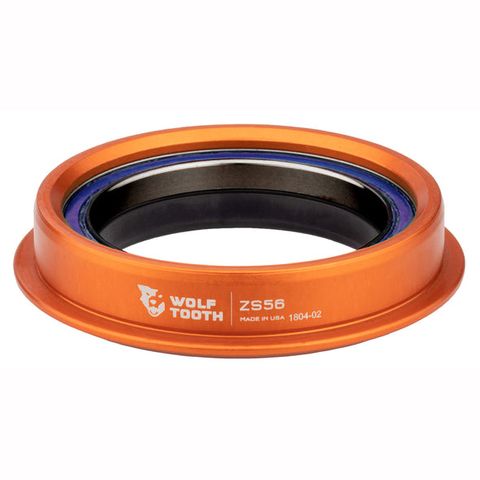

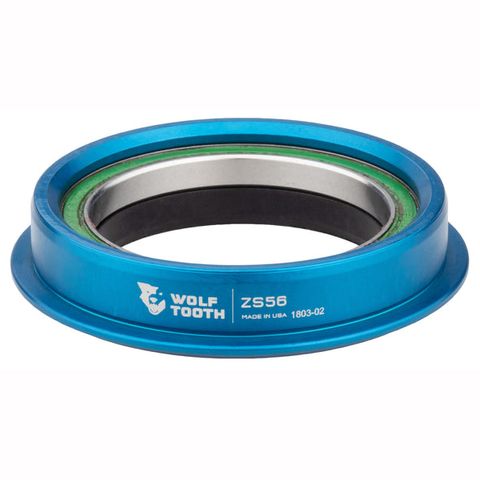

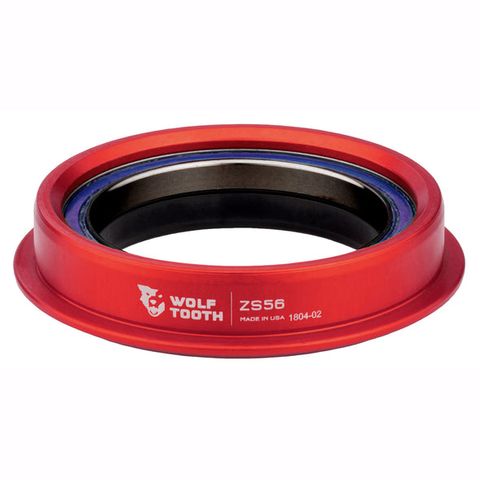

ZS44/28.6 UPPER - ZS56/40 LOWER Headtube Length: LONG 115-140mm

Adjust the geometry of your bike by changing the head tube angle by 1º with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1º to make for a slacker geometry for added stability on fast descents, or by +1º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Compatibility:

- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

EC44/28.6 Upper, EC44/40 Lower 2 Degree Geoshift Short 90-114 mm Head Tube Length

Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.

EC44/28.6 Upper, EC49/40 Lower 2 Degree Geoshift Long 115-140 mm Head Tube Length

Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.

EC44/28.6 Upper, EC49/40 Lower 2 Degree Geoshift Short 90-114 mm Head Tube Length

Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.

EC44/28.6 Upper, ZS56/40 Lower 2 Degree Geoshift Long 115-140 mm Head Tube Length.

Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.

EC44/28.6 Upper, ZS56/40 Lower 2 Degree Geoshift Short 90-114 mm Head Tube Length.

Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.

ZS44/28.6 UPPER - ZS56/40 LOWER Headtube Length: SHORT 90-114mm

Adjust the geometry of your bike by changing the head tube angle by 1º with the GeoShift Performance Angle Headset. It allows you to change the head tube angle by -1º to make for a slacker geometry for added stability on fast descents, or by +1º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.

The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. The design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.
Wolf Tooth headsets are machined in the USA with lightweight, strong, durable 6061 aluminum. Our Performance Headset is built to include an Enduro black oxide coated chromium steel bearing, a one-year warranty, and three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset.

Compatibility:

- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately; never use a star nut on a carbon steerer tube)

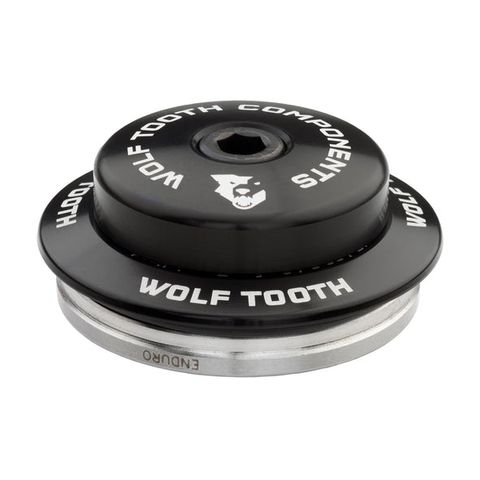

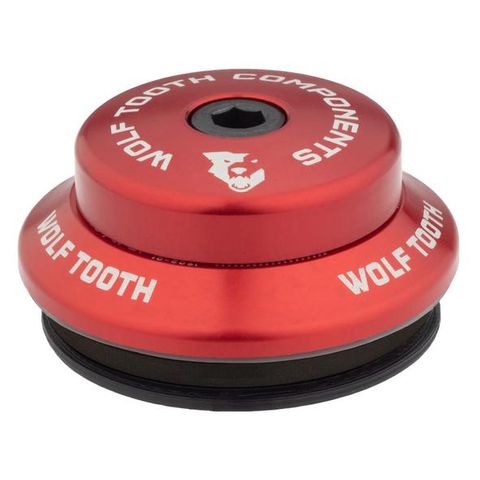

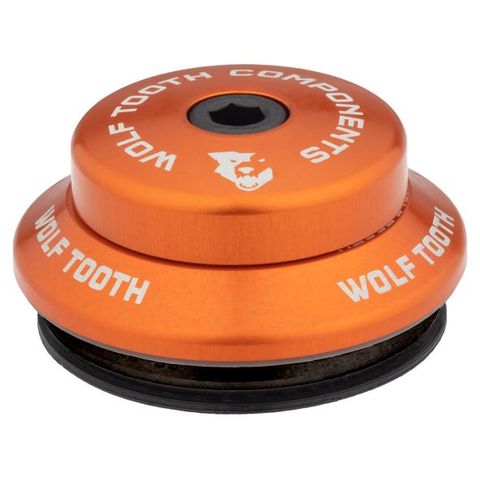

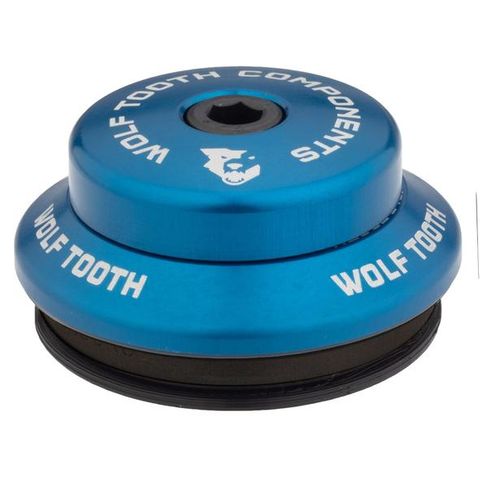

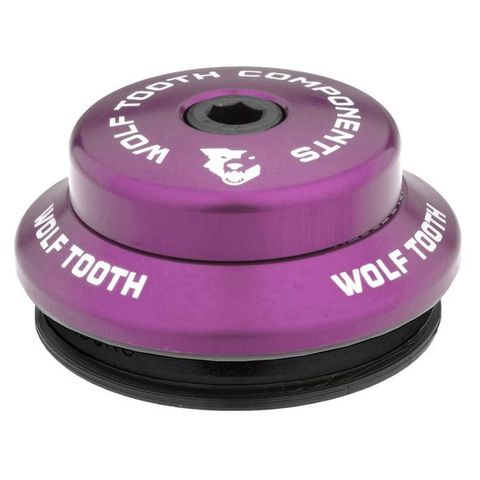

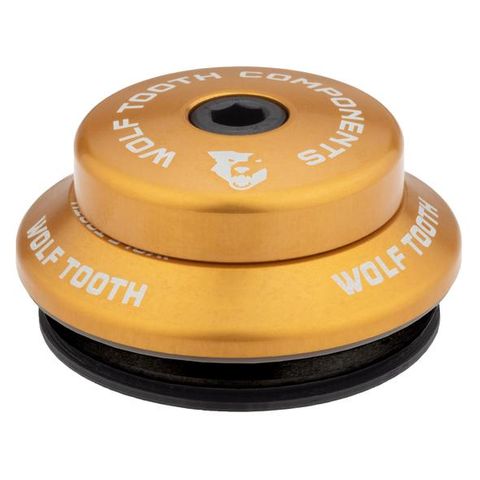

IS headsets are for frames with molded-in internal bearing cups.

Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable.

Compatibility

- Any frame that uses IS (Integrated Standard) headsets with 41mm upper and 52mm lower outer bearing diameter
- Uppers and Lowers sold separately

Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061-T6 aluminum. They are designed to be lightweight, strong, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. This has a stack height of 3mm and is available in a variety of colors to match other Wolf Tooth anodized color options. These IS headsets are made exclusively for Specialized frames with molded-in internal bearing cups. Like all Wolf Tooth Premium Headsets with Enduro stainless steel bearings, the Premium IS Headset for Specialized has a lifetime warranty.

Compatibility

- Any Specialized bike that uses an IS (Integrated Standard) headset with 42mm upper bearing diameter.
- Uppers and lowers sold separately.
- Enduro stainless steel sealed bearings included on both the upper and lower.
- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).
- Some bikes, like the Stumpjumper EVO, have an adjustable headset that resembles a ZS headset where an upper cup is pressed into the frame. Our bearing will fit into that cup and our top cap will fit neatly on top.

Known Compatible Specialized Bike Models:

Aluminum Mountain Bikes (except pre-2017 Chisel HT aluminum)
Camber Carbon  | 2014
Chisel Alloy HT (Smartweld HT)  |  2017-2021
Enduro 29 Carbon  |  2014
Enduro Carbon  |  2017, 2020
Epic Carbon  |  2014
Epic FSR  |  2021
Epic FSR Carbon  |  2018
Epic HT  |  2017, 2020
Fatboy Carbon  |  2015
Fuse Carbon  |  2017
Stumpjumper  |  2021
Stumpjumper Carbon  |  2019
Stumpjumper EVO  |  2021
Stumpjumper FSR Carbon  |  2016
Turbo Levo



Lower assembly features:

- IS lower headset consists of a bearing and crown race only. The crown race is black anodized and not visible when installed.

- Custom over-molded dual lip seal on the crown race to protect lower bearing in the toughest conditions.

- Performance Headsets with Enduro Black Oxide bearings have a 1 year warranty.
