  • DH158 TREK
    Stock Code:
    WMDH-158

    Attaches to frame with (2) M4x4 Socket Head Screws
    Replaces:
    Trek part #W303978
    Trek part #W295979

    Notes:

    This hanger has 4mm threaded fastener holes in it. DROPOUT-164 is the same hanger, but with 3mm threaded holes.
    Trek part #W295979 is thicker where the fastener holes are, but DROPOUT-158 will work.


    Gary Fisher
    Cronus CX Pro - 2012
    Cronus CX Ultimate - 2012
    Cronus CX Ultimate Frameset - 2012
    Ion CX - 2012
    Ion CX Pro - 2012
    Ion CX Pro Frameset - 2012

    Trek
    5-series Madone - 2011
    Cronus (Road) - 2010-2011
    Fisher Cronus - 2010-2012
    Fisher Ion - 2010-2012
    Ion (Road) - 2010-2011
    Madone 5 series - 2011
    Madone 6 Series - 2010-2011
    Speed Concept - 2010-2011
    Speed Concept 2 Series - 2011
    Speed Concept 7 Series - 2011
    Speed Concept 9 Series - 2011

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $52.00 (RRP)

    Add To Cart

  • DH159 CANNONDALE
    Stock Code:
    WMDH-159

    Attaches to frame with (2) M3x10 Socket Head Screws
    Fasteners Included
    Replaces Cannondale Part # KP121

    Note: NOT interchangeable with DROPOUT-162. Note the dimensions shown for distance between the plates and center to center of the two fasteners.

    Cannondale

    F-Si 29er Carbon / Alloy - 2016-2017
    F-Si Aluminum - 2015-2018
    F-Si Carbon - 2015-2018
    F-Si HM - 2015-2018
    F26 Carbon - 2013
    F29 Alloy - 2013-2014
    F29 Carbon - 2013-2014
    F29 Carbon 1 & 2 & 3 and Ultimate - 2013-2015
    Flash 29er Alloy - 2012
    Flash 29er Carbon - 2011-2012
    Flash Alloy - 2012
    Flash Alloy 29er - 2012-2013
    Flash Carbon - 2010-2012
    Flash Carbon 29er - 2012-2013
    Scalpel - 2011
    Scalpel 26 Carbon Series - 2011-2013
    Trigger 26 Carbon - 2013-2014

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $69.00 (RRP)

    Add To Cart

  • DH16 CANNONDALE MTB 91-CURRENT
    Stock Code:
    WMDH-016

    Attaches to frame with (2) M3x10 Socket Head Cap Screws
    Fasteners not included
    Cannondale Part #A239X/EBO

    Note: DROPOUT-16 has 14.33 mm between the two holes (center to center) and 6.51mm between the two vertical plates.

    Cannondale
    - 1991-2006 Mountain
    Adventure 600 - 2007
    29'er 1 - 2009
    29'er 4 - 2009
    A239X/ EBO - 2007
    Adventure 1000 - 2007
    Adventure 1000 Feminine - 2007
    Adventure 400 - 2007
    Adventure 400 Feminine - 2007
    Adventure 600 Feminine - 2007
    CAAD2 - 2007
    CAAD3 - 2007
    CAAD4 - 2007
    CAAD5 - 2007
    Comfort - 2007
    Comfort 4 - 2008
    Comfort 5 - 2008
    Comfort Feminine - 2007
    Comfort Series - 2009
    Cross XR4 - 2008
    Cross XR6 - 2008
    Cyclocross 2 - 2009
    Cyclocross 3 - 2010
    Cyclocross 5 - 2009
    Cyclocross 6 - 2009
    Day Tripper Seven - 2007
    Daytripper MTB/ ROAD - 2007
    Hybrid - 2007
    Jekyll to '04 - 2007
    Optimo - 2007
    Raven - 2007
    Red - 2010
    Road Warrior 1 - 2008
    Road Warrior 2 - 2008
    Street - 2007
    Street Feminine - 2007
    Street Premium - 2007
    Super-V - 2007
    Touring - 2007
    Touring 1 - 2009-2010
    Touring 2 - 2009-2010

    Stock Level:
    1
    Stock Level:
    1
    $52.00 (RRP)

    Add To Cart

  • DH160 WILIER, EDDY MERCKX
    Stock Code:
    WMDH-160

    Attaches to frame with (2) M3x8 Flat Head Screws
    Fastener not Included
    Replaces Wilier part #HGACCE59.4

    Eddy Merckx
    EMX5 - 2011-2013
    EMX7 -

    Wilier
    Cento 1 - 2012
    Cento 1 SL - 2012
    Gran Turismo - 2012-2013
    Imperiale - 2012
    Zero 7 - 2012-2013
    Zero 9 - 2013

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $58.00 (RRP)

    Add To Cart

  • DH161 NOVARA
    Stock Code:
    WMDH-161

    Attaches to frame with (1) M8 Chainring Bolt
    Fastener included

    Notes:

    The Novara Rivet was produced with two different versions of hangers. The correct hanger must be confirmed visually. Some 2005-2008 Rivet bicycles use DROPOUT-153


    Fuji

    Team Base, Pro - 2005

    Novara

    Novara, including Rivet - 2005-2008

    Origin8

    some Cross Frames -

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $89.00 (RRP)

    Add To Cart

  • DH162 CANNONDALE
    Stock Code:
    WMDH-162

    Attaches to frame with (2) M3x10 Socket Head Screws
    Fasteners Included
    Replaces: Cannondale Part # KP158

    Note: NOT interchangeable with DROPOUT-159. Note the dimensions shown for distance between the plates and center to center of the two fasteners.

    Cannondale
    CAAD10 2 Force Racing - 2013
    CAAD10 3 Ultegra - 2013
    CAAD10 4 Rival - 2013
    CAAD10 5 105 - 2013
    CAAD10 Black Inc. - 2013
    CAAD10 Series - 2012-2015
    CAAD10 Women's 3 Ultegra - 2013
    CAAD10 Women's 5 105 - 2013
    CAAD10 Women's 6 Tiagra - 2013
    CAAD10 Women's Di2 Ultegra - 2013
    CAAD8 5 105 - 2013
    CAAD8 6 Tiagra - 2013
    CAAD8 7 Sora - 2013
    CX 1 -
    Evo - 2015
    Quick - 2013-2014
    Quick Carbon - 2014
    Quick SL and CX - 2013-2014
    Super X - 2015
    Super X Series - 2012-2014
    SuperSix EVO Black INC. - 2013
    SuperSix EVO HI-MOD Dura Ace - 2013
    SuperSix EVO HI-MOD Dura Ace Di2 - 2013
    SuperSix EVO HI-MOD Team - 2013
    SuperSix EVO Red - 2013
    SuperSix EVO Red Racing - 2013
    Supersix Evo Series - 2012-2014
    SuperSix EVO Ultegra DI2 - 2013
    SuperSix EVO Women's HI-MOD Dura Ace - 2013
    SuperSix EVO Women's HI-MOD Red - 2013
    SuperSix EVO Women's HI-MOD Ultegra Di2 - 2013
    SuperX Carbon Rival - 2013
    SuperX Carbon Ultegra - 2013
    SuperX HI-MOD Disc - 2013
    SuperX HI-MOD Ultegra Di2 - 2013
    Synapse Carbon - 2015
    Synapse Carbon 3 Ultegra - 2013
    Synapse Carbon 4 Rival - 2013
    Synapse Carbon 5 105 - 2013
    Synapse Carbon 6 Tiagra - 2013
    Synapse Carbon HI-MOD 1 Black Inc. - 2013
    Synapse Carbon HI-MOD 2 SRAM Red - 2013
    Synapse Carbon HI-MOD3 Ultegra - 2013
    Synapse Carbon Women's 3 Ultegra - 2013
    Synapse Carbon Women's 4 Rival - 2013
    Synapse Carbon Women's 5 105 - 2013
    Synapse Carbon Women's 6 Tiagra - 2013
    Synapse HI-MOD/Carbon - 2014

    Stock Level:
    Out Of Stock
    Stock Level:
    Out of Stock
    Expected Date:
    13 November 2024
    $62.00 (RRP)
  • DH163 CERVELO
    Stock Code:
    WMDH-163

    Attaches to frame with (2) M3x8 flat head screws
    Fasteners included
    Cervelo part # DHR-R-2012

    Cervelo
    R2 - 2015
    R3 - 2012-2015
    R3 Team - 2012-2013
    R5 - 2012-15
    R5 CA - 2012-14
    R5 VWD - 2012-2013
    RCA - 2015
    S2 - 2015
    S3 - 2013-15
    S5 * - 2012-2015
    S5 Team - 2012-2013
    S5 VWD - 2012-2013

    Stock Level:
    Out Of Stock
    Stock Level:
    Out of Stock
    Expected Date:
    13 November 2024
    $62.00 (RRP)
  • DH164 TREK
    Stock Code:
    WMDH-164

    Attaches to frame with (2) M3x8 Flat Head Screws
    Fasteners included
    Replaces:
    Trek Part #W311263
    Trek Part #W311356

    Notes:

    This hanger has 3mm threaded fastener holes in it. DROPOUT-158 is the same hanger, but with 4mm threaded holes.
    Trek part #W311356 is thicker where the fastener holes are, but DROPOUT-164 will work.


    Trek
    6-series Madone - 2010-2011
    Cronus CX Pro - 2012-2013
    Cronus CX Ultimate - 2012-2013
    Cronus CX Ultimate Frameset - 2012-2013
    Custom Madone 6 Series - 2012
    Custom Madone 6 Series SSL - 2012
    Custom Madone 6 Series SSL WSD - 2012
    Custom Madone 6 Series WSD - 2012
    Custom Speed Concept 9 Series - 2012
    Custom Speed Concept 9 Series WSD - 2012
    Fisher Cronus CX - 2011-2013
    Madone 4.5 - 2012-2013
    Madone 4.5 WSD - 2012-2013
    Madone 4.6 - 2012-2013
    Madone 4.6 WSD - 2012-2013
    Madone 4.7 - 2012-2013
    Madone 5.2 - 2012
    Madone 5.2 WSD - 2012
    Madone 5.5 - 2012
    Madone 5.9 - 2012
    Madone 5.9 Frameset - 2012
    Madone 6.2 - 2012
    Madone 6.2 WSD - 2012
    Madone 6.5 - 2012
    Madone 6.5 Frameset - 2012
    Madone 6.5 WSD - 2012
    Madone 6.7 SSL - 2012
    Madone 6.7 SSL WSD - 2012
    Madone 6.9 SSL - 2012
    Madone 6.9 SSL Frameset - 2012
    Madone 6.9 SSL RADIOSHACK NISSAN TREK Edition - 2012
    Madone 6.9 SSL Spartacus Edition - 2012
    Speed Concept 2.5 - 2012-2013
    Speed Concept 2.5 WSD - 2012-2013
    Speed Concept 7.0 - 2012-2013
    Speed Concept 7.0 WSD - 2012-2013
    Speed Concept 7.2 - 2012-2013
    Speed Concept 7.5 - 2012-2013
    Speed Concept 7.5 Frameset - 2012-2013
    Speed Concept 7.8 - 2012-2013
    Speed Concept 7.8 WSD - 2012-2013
    Speed Concept 9.5 - 2012-2013
    Speed Concept 9.5 WSD - 2012-2013
    Speed Concept 9.8 - 2012-2013
    Speed Concept 9.8 WSD - 2012-2013
    Speed Concept 9.9 - 2012-2013
    Speed Concept 9.9 Frameset - 2012-2013
    Speed Concept 9.9 RADIOSHACK NISSAN TREK Edition - 2012-2013
    Speed Concept 9.9 Spartacus Edition - 2012-2013

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $52.00 (RRP)

    Add To Cart

  • DH165 VIPER
    Stock Code:
    WMDH-165

    Attaches to frame with (2) M4x10 Flat Head Screws
    Fasteners included

    Viper
    - 2012
    Carbon Pro FS - 2012-1203

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $89.00 (RRP)

    Add To Cart

  • DH166 COLMAR POLYGON
    Stock Code:
    WMDH-166

    Attaches to frame with (2) M4x8 Flat Head Screws
    Fasteners Included

    Colmar

    - 2012-2013

    Louis Garneau

    CEN/CEN W - 2010
    CR22/CR23/CR23W - 2010
    CX2 - 2010
    MER - 2010
    RHC/RHC W - 2010
    RSR-2 - 2016

    Polygon

    Helios A9X - 2014
    Helios C2.0, C3.0, C4.0, C6.0, C7.0, A9.0 - 2013-2014
    Helios C2.0, C3.0, C4.0, C6.0, C8.0, C8X, A5.0, A8.0, A8X, A9.0, A9X - 2015-2016
    Helios Flat bar F1.0, F3.0, F5.0 - 2013-2015
    Helios Flat bar F3.0, F5.0 - 2016
    Strattos S2.0, S3.0, S4.0, S5.0 - 2017

    Stock Level:
    Out Of Stock
    Stock Level:
    Out of Stock
    Expected Date:
    13 November 2024
    $62.00 (RRP)
  • DH167 GIANT
    Stock Code:
    WMDH-167

    Attaches to frame with (2) M3x8 Flat head screws
    Fasteners Included
    Replaces:

    Giant Part #RE171A


    Giant
    AnyRoad - 2014-2015
    Avail Advanced - 2012-2015
    Avail Advanced SL - 2012-2015
    Avail Aluminum - 2012-2015
    Avail Composite - 2013-2015
    Brava, Brava SLR - 2014-2015
    Defy Advanced - 2012-2015
    Defy Advanced SL - 2012-2015
    Defy Aluminum - 2012-2015
    Defy Composite - 2013-2015
    Envie, Envie Advanced - 2014-2015
    Escape - 2015
    Escape RX Composite - 2014-2015
    Invite - 2014-2015
    Liv - 2014
    Propel, Propel Advanced, SL - 2014-2015
    Revolt - 2014-2015
    TCR Advanced - 2012-2015
    TCR Advanced SL - 2012-2015
    TCX Advanced - 2014-2015
    TCX SLR - 2014-2015
    Thrive Composite - 2014-2015

    Stock Level:
    Out Of Stock
    Stock Level:
    Out of Stock
    $62.00 (RRP)
  • DH168 SPECIALIZED
    Stock Code:
    WMDH-168

    Attaches to frame with (1) M5x8 Flat Head Screws
    Fastener not included
    Replaces Specialized Part # 9892-4041

    Specialized
    Camber (all models) - 2013-2015
    Camber 26" (Pro/Expert) - 2012
    Camber 29" (Pro/Expert/Comp) - 2012
    Enduro - 2012-2015
    Epic 29 - 2014-2015
    Epic 29" - 2012-2013
    Rumor - 2013-2015
    S-Works Carbon HT 29 -
    S-Works Enduro - 2012-2014
    S-Works Epic 26" - 2012
    S-Works Epic 29" - 2012-2014
    S-Works SJ FSR (26"/29") - 2012-2014
    Stumpjumper 29er HT Carbon - 2014
    Stumpjumper FSR (26"/29") - 2012-2013
    Stumpjumper FSR (26"/29") - 2014-2015
    SX - 2013-2014
    Turbo S - 2013-2014

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $52.00 (RRP)

    Add To Cart

  • DH169 CANNONDALE
    Stock Code:
    WMDH-169

    Attaches to frame with (1) M4x12 Flat Head Screw and (1) M4x12 Socket Head Screw
    Fasteners included
    Replaces Cannondale Part # KP173

    Cannondale
    Claymore - 2011-2012
    Claymore 1 - 2013
    Claymore 2 - 2013
    Jekyll - 2011-2012
    Jekyll 3 - 2013
    Jekyll 4 - 2013
    Jekyll Alloy - 2011-2013
    Jekyll Alloy 27.5 - 2014-2015
    Jekyll Carbon 1 - 2013
    Jekyll Carbon 2 - 2013
    Jekyll Carbon 27.5 - 2014-2015
    Jekyll MX - 2013
    Scalpel 29er - 2011-2012
    Scalpel 29er 3 - 2013-2014
    Scalpel 29er 4 - 2013-2014
    Scalpel 29er Carbon 1 - 2013-2014
    Scalpel 29er Carbon 2 - 2013-2014
    Scalpel 29er Carbon Ultimate - 2013-2014
    Scalpel Carbon/Alloy - 2015
    Trigger Alloy 29er - 2013, 2015
    Trigger Carbon 29er - 2014

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $62.00 (RRP)

    Add To Cart

  • DH17 CANNONDALE Road 91-CURRENT
    Stock Code:
    WMDH-017

    Attaches to frame with (2) M3x10 Flat Head Screws
    Fasteners not Included
    Replaces Cannondale Part #A240C/EBO

    Note: DROPOUT-17 measures 15.49mm between the 2 mounting holes (center to center) and 4.7mm between the 2 vertical plates.

    Cannondale
    A240C/ EBO - CAAD2 - 1991-2006
    CAAD3 - 1991-2006
    CAAD4 - 1991-2006
    CAAD5 - 1991-2006
    CAAD6 - 1991-2006
    CAAD7 - 1991-2006
    Road - 1991-2006
    Six 13 ROAD - 1991-2006

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $52.00 (RRP)

    Add To Cart

  • DH170 RIDLEY
    Stock Code:
    WMDH-170

    Attaches to frame with (3) M4x8 Flat Head Screws
    Fasteners included

    Ridley
    X-Fire Disc - 2013

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $73.00 (RRP)

    Add To Cart

  • DH171 SANTA CRUZ
    Stock Code:
    WMDH-171

    Attaches to frame with (2) M4x8 Flat Head Screws
    Fasteners not included
    Replaces Santa Cruz part # 04-12344

    Santa Cruz
    Blur LT 2 Carbon - 2010
    Blur LT Carbon 2.0 - 2012
    Blur LTc - 2011
    Blur TR Carbon 1.0 - 2012
    Blur XC - 2011-2012
    Blur XC 2.0 - 2010
    Highball C 1.0 - 2012
    Nomad Carbon 1.0 - 2012
    Tallboy 1.0 - 2010
    Tallboy Carbon - 2011-2012

    Stock Level:
    2
    Stock Level:
    2
    $62.00 (RRP)

    Add To Cart

  • DH172 TREK
    Stock Code:
    WMDH-172

    Attaches to frame with (1) M6 Chainring Bolt
    Fastener included
    Trek Part #W301608

    Trek
    Allant - 2015
    Chelsea - 2015
    Crossrip - 2013-2015
    District - 2015
    Dual Sport - 2013-2015
    Fisher Fast City - 2011
    FX (All alloy frames) - 2015
    Hybrid - 2013-2014
    Neko - 2015 (All)
    PDX - 2013-2014
    Shift - 2013-2015
    Transport - 2011
    Transport - 2013-2014
    Verve Hybrid - 2013-2015

    Trek Part #W301608

    Stock Level:
    Out Of Stock
    Stock Level:
    Out of Stock
    Expected Date:
    13 November 2024
    $62.00 (RRP)
  • DH173 JAMIS
    Stock Code:
    WMDH-173

    Attaches to frame with (2) M4x10 Flat Head Screws
    Fasteners included
    Replaces Jamis Part #12-3580

    Jamis
    Dakar XAM 1.0 - 2007
    Dakar XAM 2.0 - 2007
    Dakar XLT - 2007-2008
    Dakar XLT 2.0 - 2006
    Dakar XLT 3.0 - 2006
    Diablo 1.0 - 2006-2007
    Diablo 2.0 - 2006-2007

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $88.00 (RRP)

    Add To Cart

  • DH174 FOCUS
    Stock Code:
    WMDH-174

    Attaches to frame with (2) M4x8 Flat Head Screws
    Fasteners included

    Focus
    Culebro - 2010-2012
    Donna - 2012-2013
    ErgoRide - 2012-2013
    Izalco Team, Izalco Pro - 2010-2013
    Variado - 2010-2012

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $62.00 (RRP)

    Add To Cart

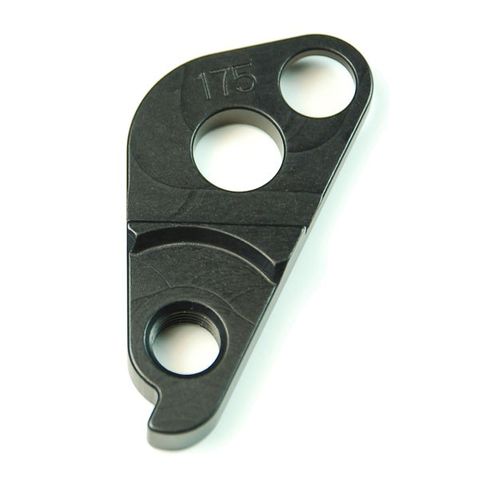

  • DH175 GIANT
    Stock Code:
    WMDH-175

    Attaches to frame with (1) M8 Chainring Bolt
    Fastener included
    Replaces Giant Part #RE130A

    DROPOUT-175 – Giant Glory DH frames

    Stock Level:
    In Stock
    Stock Level:
    In Stock
    $62.00 (RRP)

    Add To Cart

  • DH176 TREK
    Stock Code:
    WMDH-176

    Attaches to frame with (2) M3x8 Flat Head Screws
    Fasteners Included
    Trek Part #W315464

    Trek
    1-Series - 2015
    7.7 FX - 2015
    Boone - 2014
    Crockett - 2014-2015
    Domane - 2015 (All)
    Domane 2/4/5/6 Series - 2013-2014
    Domane 6 Series Team Edition - 2012-2013
    Emonda S, SL, SLR - 2015
    Lexa SLX - 2013-2014
    Lexa, Lexa S, SL, SLX - 2015
    Madone 2/5/6/7 Series - 2013-2015
    Speed Concept 7/9 - 2015
    Speed Concept series - All - 2014

    Stock Level:
    Out Of Stock
    Stock Level:
    Out of Stock
    Expected Date:
    13 November 2024
    $42.00 (RRP)

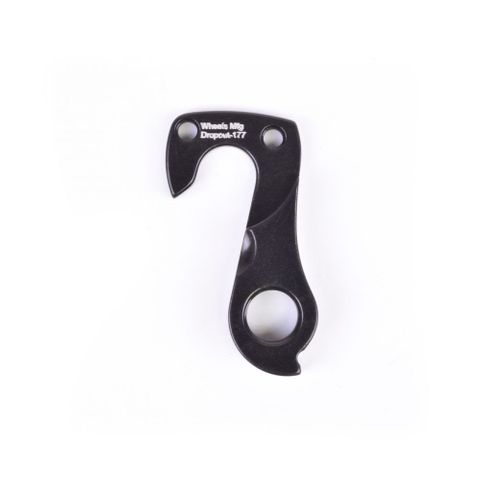

  • DH177 PARAGON
    Stock Code:
    WMDH-177

    Attaches to frame with (2) M4x8 Flat Head Screws
    Fasteners included

    Paragon
    1-1/8" round dropouts - Various

    Stock Level:
    1
    Stock Level:
    1
    $62.00 (RRP)

    Add To Cart

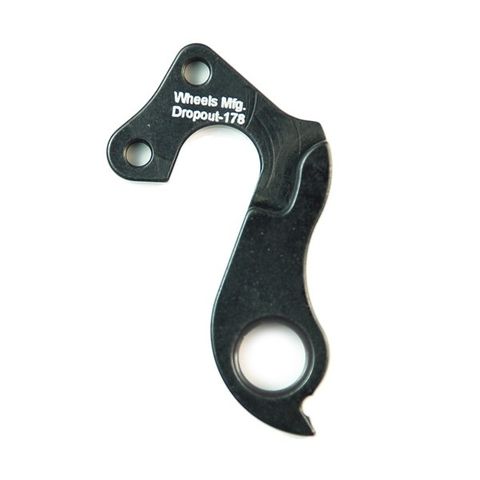

  • DH178 DEROSA PLANET X WILIER
    Stock Code:
    WMDH-178

    Attaches to frame with (2) M4x8 Flat Head Screws
    Fasteners included

    DeRosa

    R838 - 2013

    Eddy Merckx

    EMX-1 - 2013-2014
    EMX-3 - 2013-2014

    Planet X

    Nanolight -
    SAB -

    Wilier

    Cento - 2007
    Leroy -

    Stock Level:
    1
    Stock Level:
    1
    $58.00 (RRP)

    Add To Cart

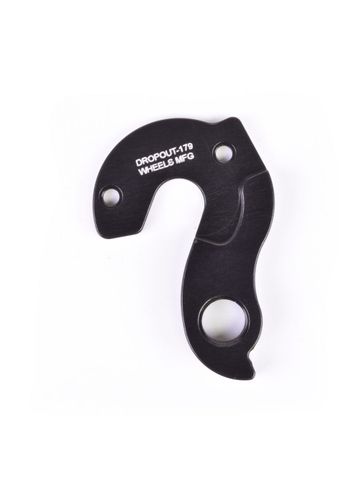

  • DH179 PLANET X
    Stock Code:
    WMDH-179

    Attaches to frame with (2) M4x8 Flat Head Screws
    Fasteners included

    Planet X
    Mamo -

    Stock Level:
    2
    Stock Level:
    2
    $89.00 (RRP)

    Add To Cart
