SALSA COMPONENTS

Replacement strut mounts for Salsa racks

Replacement derailleur hangers for Salsa frames.

Fits: Salsa Colossal Ti 2015+, Salsa Warbird 2016+, Salsa Cutthroat 2016+, Salsa Blackborrow Foundry Overland 2016, All-City Cosmic Stallion, All-City Electric Queen, All-City Gorilla Monsoon

Compatible with 12 x 1.5mm threaded axles

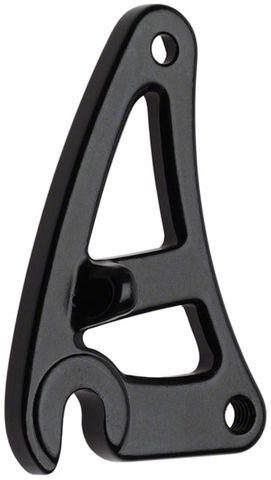

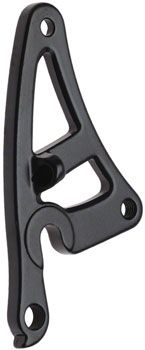

Salsa Alternator 1.0 Plate Left QR

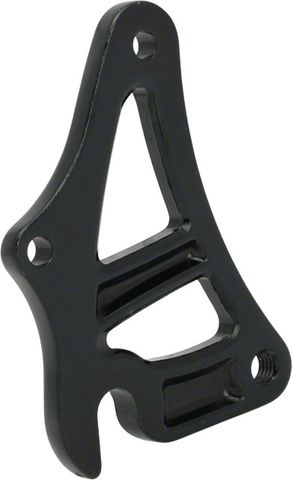

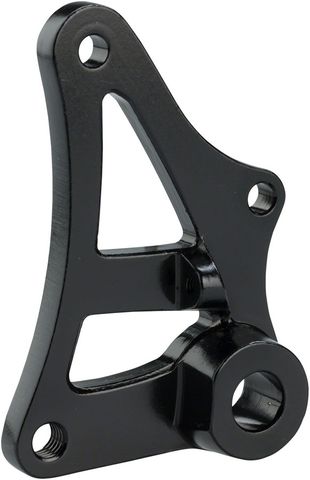

Salsa Alternator 1.0 Plate Right QR with Derailleur Hanger and Fender Mount

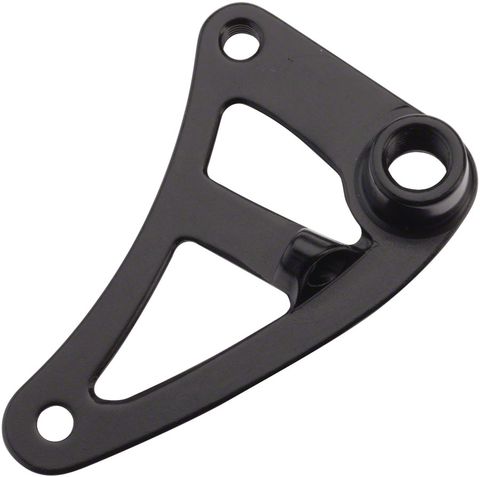

Salsa Alternator 1.0 Plate Right QR Single Speed

Salsa Alternator 1.0 Plate Right QR Single Speed with Fender Mounts

- 5mmx.8mm threaded mounts for fender stays
- Not compatible with rear racks

Replacement swing plates for Alternator 1.0 dropouts.

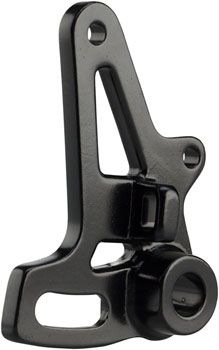

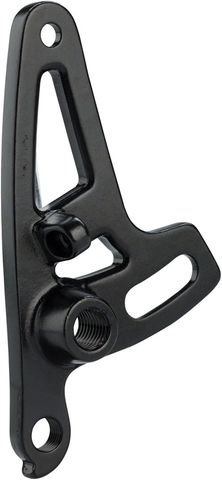

Salsa Alternator 1.0 Plate Right thru-axle M12x1.75 thread pitch, Derailleur Hanger with Fender MT

Salsa Alternator 1.0 Plate Right thru-axle M12x1.5 thread pitch Single Speed

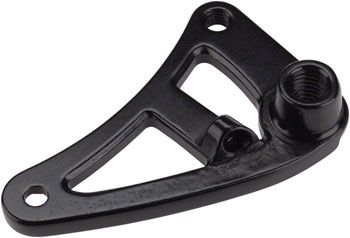

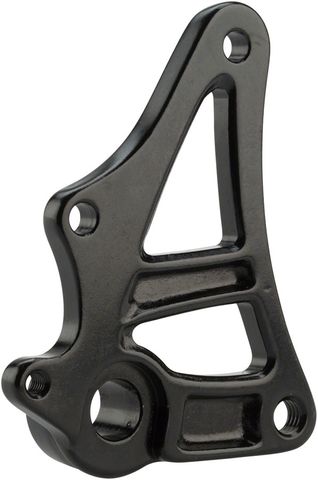

Salsa Alternator 2.0 Dropout Plate Left Adjustable Thru-Axle M12

Alternator 2.0 is the latest iteration of Salsa’s adjustable dropout system. Alternator 2.0 Dropouts are a modular system consisting of replaceable dropout plates and fixing hardware. They are specifically designed for, and only compatible with, Salsa frames using the 2.0 system.

Alternator 2.0 Dropout plates are compatible with frames featuring 142, 148, 177, or 197mm spacing

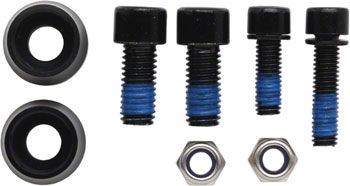

Hardware kits (sold separately) must always be paired with the style of dropout plates being installed on the frame
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle
Note: This part number only includes a single Alternator 2.0 plate

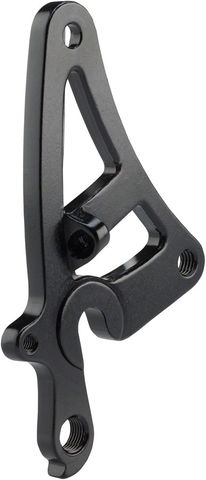

Salsa Alternator 2.0 Dropout Plate Right Adjustable Thru-Axle M12xTP1.5

Alternator 2.0 is the latest iteration of Salsa’s adjustable dropout system. Alternator 2.0 Dropouts are a modular system consisting of replaceable dropout plates and fixing hardware. They are specifically designed for, and only compatible with, Salsa frames using the 2.0 system.

Alternator 2.0 Dropout plates are compatible with frames featuring 142, 148, 177, or 197mm spacing
Hardware kits (sold separately) must always be paired with the style of dropout plates being installed on the frame
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle
Note: This part number only includes a single Alternator 2.0 plate
Thru-axle tread pitch = 1.5

Salsa Alternator Rear Racks. Mounts using the upper pivot bolt of the Salsa Alternator dropouts.

Compatible with Alternator 1.0 and 2.0 dropouts
Maximum Wheel Size (in) : 26 Fat
Requires Eyelets: Yes
Disc Brake Compatible: Yes
Color: Black
Weight Limit (lbs): 59.5 lbs
Tube Diameter: 10 mm
Platform Dimensions: 12.5 x 5.3"
Material: Aluminum

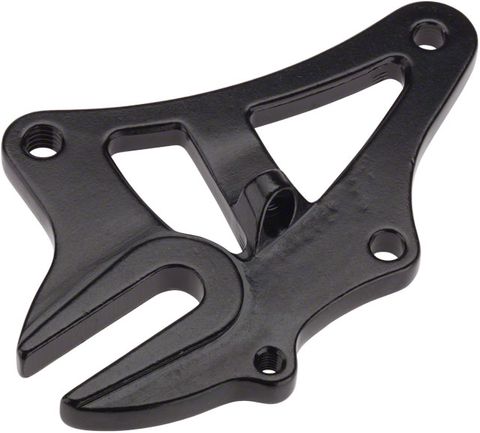

Alternator Flat Mount is an adjustable dropout system designed to offer flawless functionality with flat-mount brakes installed. The dropout plates move back and forth on the frame, controlled with a captive barrel nut and screw for a minimal appearance.

- Compatible with frames designed for the Alternator Flat Mount standard
- Allows the rear axle to be adjusted through a 15 mm range
- Thru-axle diameter = 12 mm; thread pitch = 1.5

Note: This part number only includes a single Alternator Flat Mount plate
- Uses Salsa 465 replaceable derailleur hanger (FS2322), sold separately. Also requires Salsa Axle Stud kit (FS1181)

The Alternator 135 Low Deck fits Salsa 135mm-spaced, non plus-sized tire, Alternator dropout equipped frames. It features a lower and narrower deck that fits over and around tires up to 2.4” (without fenders), as well as 700c and fender set ups.

NOTE: Deck requires a minimum of 320mm clearance from seatstay mounting points
NOTE: Salsa Rack-Lock needed for frames without upper seatstay mounts
Tubular 6061-T6 aluminum construction
135 x 345mm cupped deck
Extra-long struts for improved range of fit; straight and shaped (kinked) struts included
Black powder coat finish

Alternator Racks are the perfect solution for Salsa bicycles equipped with the Alternator dropout system. Load up your bags and gear, get off the beaten track, and start exploring!

- Designed for frames with 135 - 148mm spacing, and clearance for 29 x 3.0" / 27.5 x 3.25" tires
- Rack mounts to the upper pivot bolt of the Alternator Dropout, using included hardware mounting kit
- Compatible with Alternator 1.0 and 2.0 dropouts
- 135 x 325mm cupped deck
- Extra-long struts for improved range of fit. Straight and shaped (kinked) struts included
- Large pannier hook stops
- 765g
- 27kg maximum

The Salsa EXP Series Anything Cage HD is a unique cargo mounting system that allows you to carry lightweight gear or large bottles on forks and down tubes that have Three-Pack mounts.

- Versatile system designed for the Salsa Anything Cage Bag with EXP Series Rubber Straps (included) or nylon EXP Series Anything Cradle Straps
- Constructed with glass-filled nylon for strength and durability
- Holds gear low on fork blades or down tubes with Three-Pack mounts
- Includes Anything Cage HD with hardware and two 20" Salsa EXP Rubber Straps
- Maximum load: 6.6 lb (3 kg)
