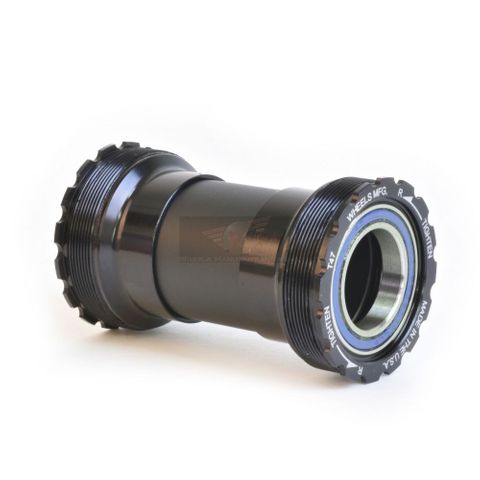

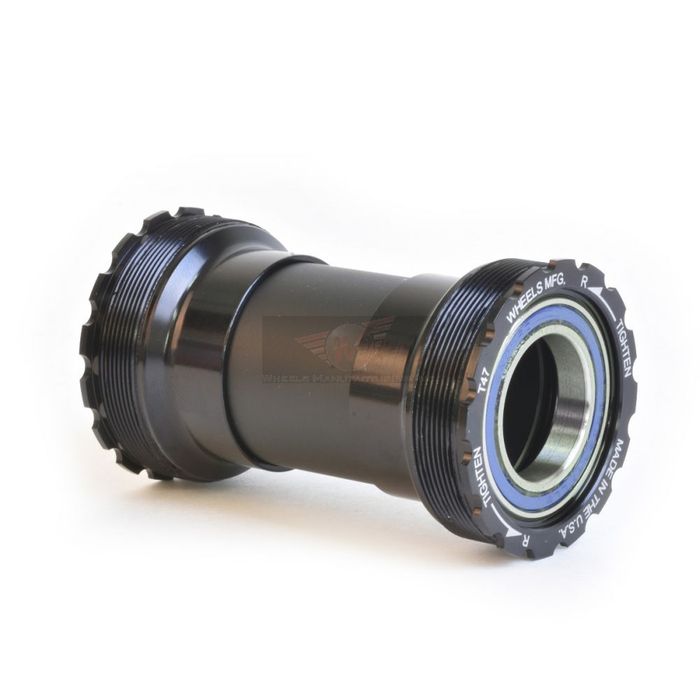

Wheels MFG T47 BB Shimano Black
Description
T47 threaded BB cups for T47 frames and 24.00mm spindle diameter cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 132mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 24.00mm
Over Bearing Width: 91.5mm in 86.5mm wide shell*
Tool Pattern: 48.5mm x 16-notch
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB-MTB-7Stock Code:WMBB-BB-MTB-9Stock Code:WMBB-BB-MTB-1Stock Code:WMBB-BB-MTB-3Stock Code:WMBB-BB-MTB-1-1Stock Code:WMBB-BB-MTB-1-3Stock Code:WMBB-BB-MTB-1-6Stock Code:WMBB-BB-MTB-1-7Stock Code:WMBB-BB-MTB-1-5Stock Code:WMBB-BB-BSA29-BBStock Code:WMBB-BB-BSA29-BB-1Stock Code:WMBB-BB-BSA29-BB-3Stock Code:WMBB-BB-BSA29-BB-4Stock Code:WMBB-BB-BSA29-BB-5Stock Code:WMBB-BB-BSA29-BB-6Stock Code:WMBB-BB-BSA29-BB-7Stock Code:WMBB-BB-BSA29-BB-9Stock Code:WMBB-BB-BSA30-ACStock Code:WMBB-BB-BSA30-BBStock Code:WMBB-BB-BSA30-CERStock Code:WMBB-BB-BSA30-BB-12
Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
*For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).
*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).Expected Date:02 November 2026$199.00 (RRP)$240.00 (RRP)$199.00 (RRP)$240.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$199.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$240.00 (RRP)$199.00 (RRP)$472.00 (RRP)$199.00 (RRP) -
Stock Code:WMBB-BB-ROAD-17Stock Code:WMBB-BB-ROAD-16Stock Code:WMBB-BB-ROAD-14
Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 5 Angular Contact sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks$240.00 (RRP)$199.00 (RRP)$240.00 (RRP) -
Stock Code:WMBB-T47-BB-SRAM-AC
T47 threaded BB cups for T47 frames and 22/24mm diameter spindle cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
** Notes:
Wheels Mfg T47 internal bearing BB for use with 24/22mm spindle cranks may not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2) when used in BB shells with widths of 86.5mm and wider. If your Quarq spider has an ID less than 49.5mm, your crank may rub on the BB cup.
Compatible with Quarq DZero powermeter spiders with GXP spindles except Eagle MTB.$269.00 (RRP)Add To Cart
-
Stock Code:WMBB-BBRIGHT-OUT-30
Thread together bottom bracket for frames using the BBRight™ bottom bracket standard and BB386 30mm spindle diameter cranks. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be equivalent to a BB386 length*
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BBRight™ Press Fit
Bottom Bracket Shell Width: 79mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Over Bearing Width: 91.5mm in 79mm wide shell*Expected Date:02 November 2026$235.00 (RRP) -
Stock Code:CKBB-ABB1Stock Code:CKBB-ABR1Stock Code:CKBB-ABS1Stock Code:CKBB-ABM2Stock Code:CKBB-ABT2Stock Code:CKBB-ABBFStock Code:CKBB-ABP1Stock Code:CKBB-ABZ2Stock Code:CKBB-ABG2Stock Code:CKBB-ABB2
** FIT KIT REQUIRED FOR USE **
ThreadFit 30 comes with a Center Sleeve for 73mm BB shell. For 68mm shell - sleeve is required(included in Fit Kit #2 for DUB Road cranks).

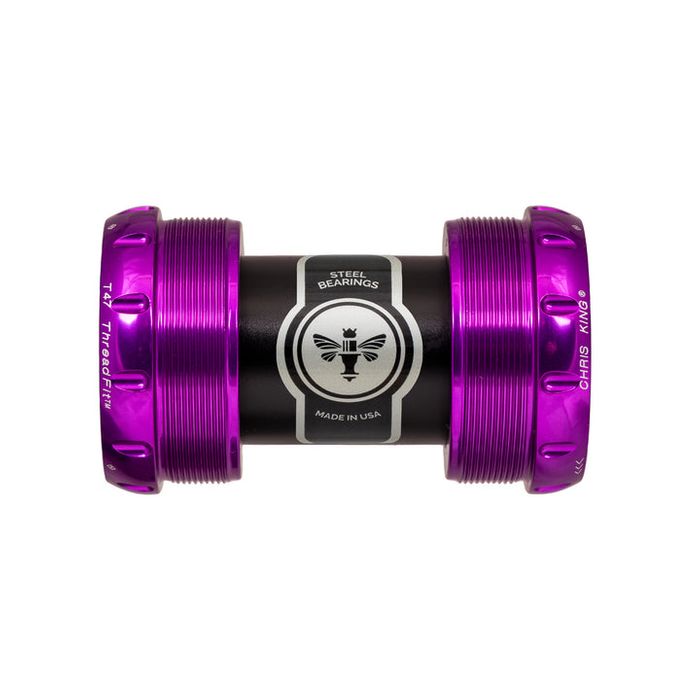

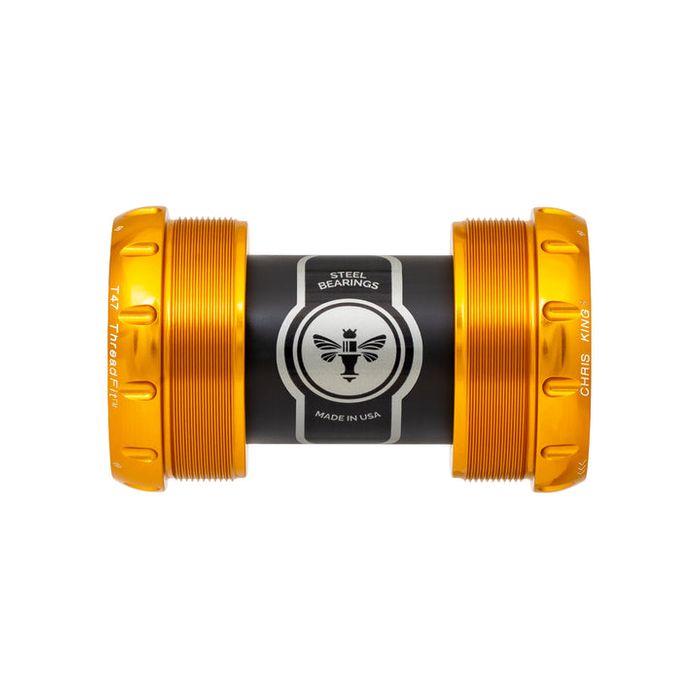

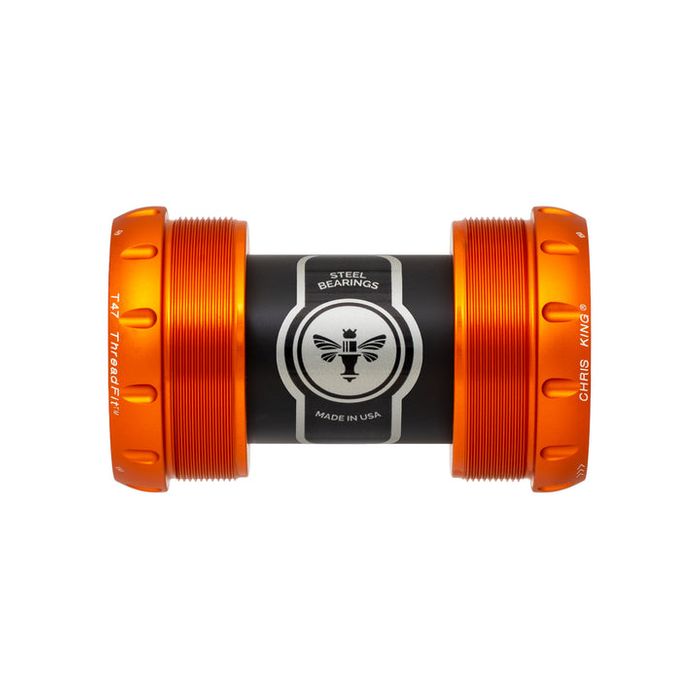

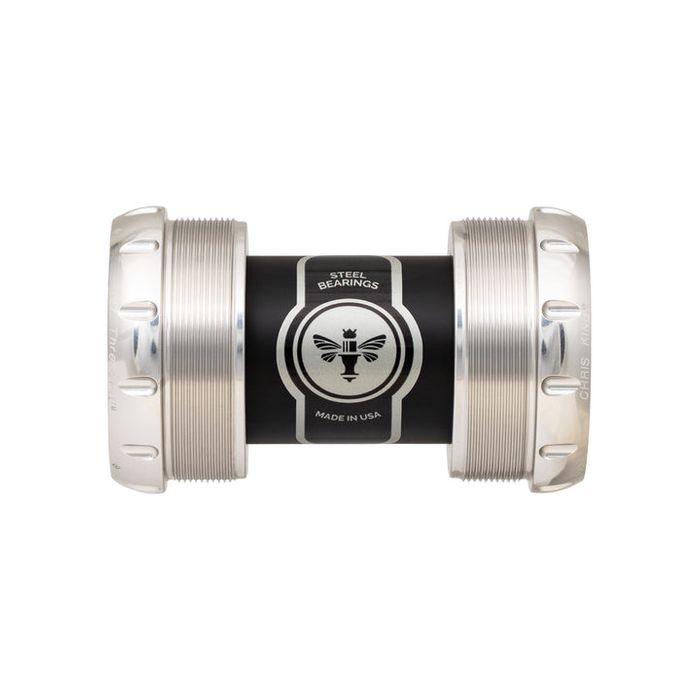

ThreadFit 30 bottom bracket is silky smooth and long-lasting thanks to legendary, angular-contact bearings. They actually get faster over time as their contact surfaces wear, because they are build to ultra-tight aerospace tolerances, using machined, Delrin-spindle sleeves to create a perfect, and precise fit between cranks and frame. That’s where the low drag and butter smooth feel come from.
