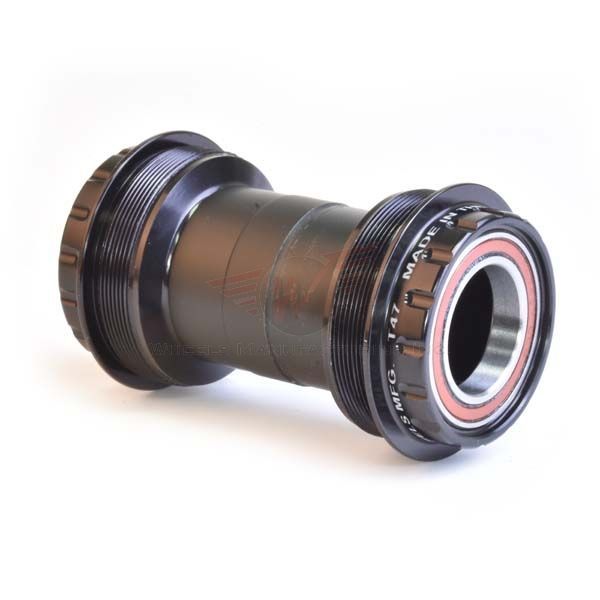

Wheels MFG T47 A/C OUT BB Shimano Black
Description
T47 threaded BB cups for T47 frames and 24mm diameter spindle cranks. Cups have outboard bearings, and are typically used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB86-FAT-SRAM7
PRESSFIT 41MM ABEC-3 FAT BIKE BB FOR 24/22MM (SRAM) CRANKS - BLACK
BB86 threaded BB for Fat Bike PF41.
Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter bottom bracket shell, with a width of 121mm or 132mm.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: SRAM / Truvativ GXP
Crank Spindle Diameter: 22/24mm$235.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB30A-OUT-SRAMStock Code:WMBB-BB30A-OUT-SHIM
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately.**
- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notchExpected Date:12 March 2026$245.00 (RRP)$235.00 (RRP) -
Stock Code:WMBB-386EVOBB-SRAMACStock Code:WMBB-386EVOBB-SRAMBBStock Code:WMBB-386EVOBB-SHIMStock Code:WMBB-386EVO-BBStock Code:WMBB-386EVO-BB-ACStock Code:WMBB-386EVO-CER-ZEROStock Code:WMBB-386EVO-BB29MMStock Code:WMBB-386EVOBB-PRXStock Code:WMBB-386EVOBB-SHIMAC
Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
** Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).**
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g
*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank AdaptersExpected Date:12 March 2026Expected Date:12 March 2026$259.00 (RRP)$235.00 (RRP)$225.00 (RRP)$235.00 (RRP)$259.00 (RRP)$445.00 (RRP)$235.00 (RRP)$235.00 (RRP)$259.00 (RRP) -
Stock Code:WMBB-BB-T47A-GXPStock Code:WMBB-BB-T47A-24MMStock Code:WMBB-BB-T47A-29MMStock Code:WMBB-BB-T47A-30MM
T47a (asymmetrical) threaded BB cups for T47a frames and 24mm diameter spindle compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility
- Cervelo T47a 79mm shell width
- Factor T47a 77.5mm shell width
- Felt T47a 77mm shell widthExpected Date:12 March 2026Expected Date:12 March 2026Expected Date:12 March 2026$240.00 (RRP)$245.00 (RRP)$245.00 (RRP)$245.00 (RRP) -
Stock Code:WTBB-BSA-24-BLKStock Code:WTBB-BSA-24-ORGStock Code:WTBB-BSA-24-PRUStock Code:WTBB-BSA-24-RSILStock Code:WTBB-BSA-24-BLUStock Code:WTBB-BSA-24-ESPStock Code:WTBB-BSA-24-GLDStock Code:WTBB-BSA-24-OLVStock Code:WTBB-BSA-24-REDStock Code:WTBB-BSA-29-BLKStock Code:WTBB-BSA-29-ORGStock Code:WTBB-BSA-29-PRUStock Code:WTBB-BSA-29-RSILStock Code:WTBB-BSA-29-BLUStock Code:WTBB-BSA-29-ESPStock Code:WTBB-BSA-29-GLDStock Code:WTBB-BSA-29-OLVStock Code:WTBB-BSA-29-REDStock Code:WTBB-BSA-30-BLKStock Code:WTBB-BSA-30-ORGStock Code:WTBB-BSA-30-PRUStock Code:WTBB-BSA-30-RSILStock Code:WTBB-BSA-30-BLUStock Code:WTBB-BSA-30-ESPStock Code:WTBB-BSA-30-GLDStock Code:WTBB-BSA-30-OLVStock Code:WTBB-BSA-30-RED
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool or BBS4416
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)
