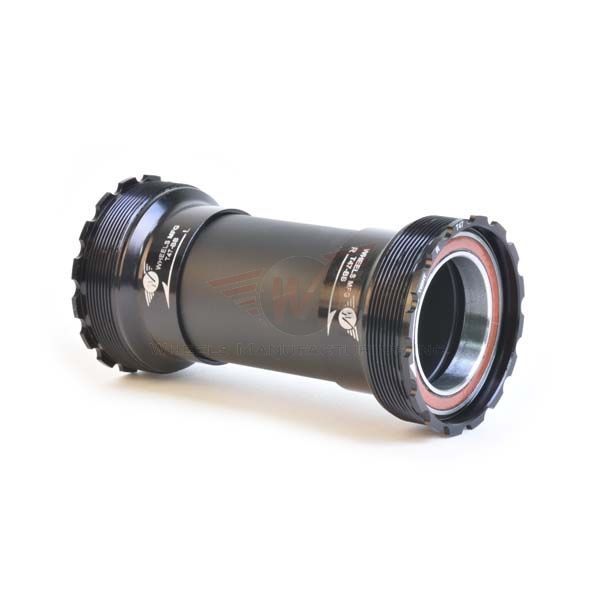

Wheels MFG T47 A/C BB 30mm Black
Description
T47 threaded BB cups for T47 frames and 30mm diameter spindle cranks. Cups have internal bearings, and can be used in BB shells with widths from 68mm to 132mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-T47-OUT-30MM-BB
T47 threaded BB cups for T47 frames and 30mm spindle diameter cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 30mm
Over Bearing Width: 90.8mm in 68mm wide shell*
Tool Pattern: 48.5mm x 16-notch$204.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB86BB-PRX
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 28/30mm spindle Praxis - Compatible cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.
Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals
(1) - 28mm spacer inse$327.00 (RRP)Add To Cart
-
Stock Code:BBBB-BB30-B3$54.08 (RRP)
Add To Cart
-
Stock Code:WTBB-T47I-24-BLKStock Code:WTBB-T47I-24-ORGStock Code:WTBB-T47I-24-PRUStock Code:WTBB-T47I-24-RSILStock Code:WTBB-T47I-29-BLKStock Code:WTBB-T47I-29-ORGStock Code:WTBB-T47I-29-PRUStock Code:WTBB-T47I-29-RSILStock Code:WTBB-T47I-30-BLKStock Code:WTBB-T47I-30-ORGStock Code:WTBB-T47I-30-PRUStock Code:WTBB-T47I-30-RSIL

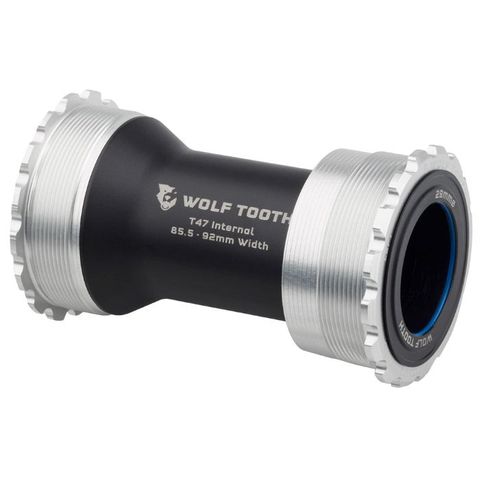

Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP) -
Stock Code:WTBB-T47E-30-BLKStock Code:WTBB-T47E-30-ORGStock Code:WTBB-T47E-30-PRUStock Code:WTBB-T47E-30-RSIL
Wolf Tooth T47 External Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm T47 bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 (24mm) and 46-12 (29mm DUB, 30mm) spline bottom bracket tools
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 30mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
