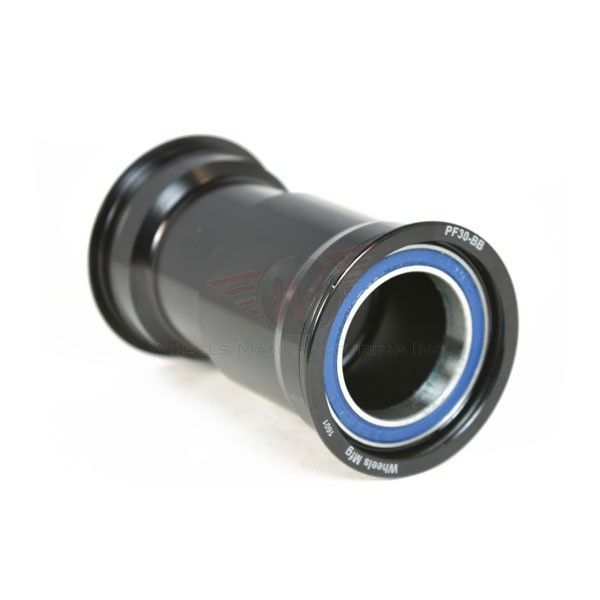

Wheels MFG Pressfit 30 Bottom Braket
Description
Wheels MFG Pressfit 30 Bottom Braket
- Economical and reliable BB to fit Pressfit 30-specific frames (46mm ID)
- Machined aluminium cups with 6806 (30mm ID) sealed bearings and exterior seal system
- Adaptable for 61mm to 86.5mm shell widths
- Will accept current 30mm spindle cranksets, as well as 24mm cranksets using Wheels Mfg. adapter shims
- Bearings: Enduro ABEC-3
- Bottom Bracket/Frame Interface: PF30, BB386EVO, Specialized Carbon OSBB, BBRight™ Press Fit
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB30A-OUT-SRAMStock Code:WMBB-BB30A-OUT-SHIM
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately.**
- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notchExpected Date:19 March 2026$245.00 (RRP)$235.00 (RRP) -
Stock Code:BBBB-GXPSTD-B3$48.01 (RRP)
Add To Cart
-
Stock Code:CKBB-ACB2Stock Code:CKBB-ACM2Stock Code:CKBB-ACS1
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 24i fits 86mm and 92mm shell widths with 24mm spindles.
All our bottom brackets come with King’s legendary, angular-contact bearings. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
The Fit Kit for our ThreadFit™ T47 24i is available here.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Threaded security with PressFit 30 shell stiffness
- Engineered, manufactured and assembled in Portland, Oregon USA
- A Fit Kit is required for use
- Uses Chris King bottom bracket cup tool for installation$349.00 (RRP)$349.00 (RRP)$349.00 (RRP) -
Stock Code:WTBB-T47I-24-BLKStock Code:WTBB-T47I-24-ORGStock Code:WTBB-T47I-24-PRUStock Code:WTBB-T47I-24-RSILStock Code:WTBB-T47I-29-BLKStock Code:WTBB-T47I-29-ORGStock Code:WTBB-T47I-29-PRUStock Code:WTBB-T47I-29-RSILStock Code:WTBB-T47I-29-BLUStock Code:WTBB-T47I-29-ESPStock Code:WTBB-T47I-29-GLDStock Code:WTBB-T47I-29-OLVStock Code:WTBB-T47I-29-REDStock Code:WTBB-T47I-30-BLKStock Code:WTBB-T47I-30-ORGStock Code:WTBB-T47I-30-PRUStock Code:WTBB-T47I-30-RSIL
Wolf Tooth T47 Internal Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 85.5mm - 92mm T47 Internal bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 52-16 spline tool or BBS5216
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP) -
Stock Code:WTBB-BSA-24-BLKStock Code:WTBB-BSA-24-ORGStock Code:WTBB-BSA-24-PRUStock Code:WTBB-BSA-24-RSILStock Code:WTBB-BSA-24-BLUStock Code:WTBB-BSA-24-ESPStock Code:WTBB-BSA-24-GLDStock Code:WTBB-BSA-24-OLVStock Code:WTBB-BSA-24-REDStock Code:WTBB-BSA-29-BLKStock Code:WTBB-BSA-29-ORGStock Code:WTBB-BSA-29-PRUStock Code:WTBB-BSA-29-RSILStock Code:WTBB-BSA-29-BLUStock Code:WTBB-BSA-29-ESPStock Code:WTBB-BSA-29-GLDStock Code:WTBB-BSA-29-OLVStock Code:WTBB-BSA-29-REDStock Code:WTBB-BSA-30-BLKStock Code:WTBB-BSA-30-ORGStock Code:WTBB-BSA-30-PRUStock Code:WTBB-BSA-30-RSILStock Code:WTBB-BSA-30-BLUStock Code:WTBB-BSA-30-ESPStock Code:WTBB-BSA-30-GLDStock Code:WTBB-BSA-30-OLVStock Code:WTBB-BSA-30-RED
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool or BBS4416
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)$259.00 (RRP)
