Soma Cr-Mo Chrome 1 230 Thread Str8 Lugd
Description

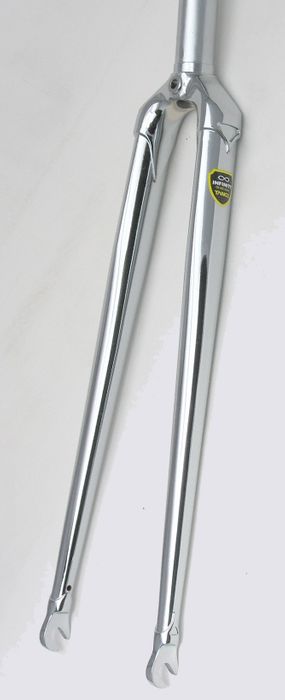

Soma Track Fork 1" Threaded Lugged Straight Blade
- Tange Infinity Tubing
- Sloping Lugged Crown
- 230mm steerer/50mm threads
- 41mm rake
- Axle to crown is 365mm.
- Accepts standard reach brakes. (Reminder: Order 1" for Rushes; 1-1/8" for Pakes)
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SLFK-FK0949
The Bridge Club fork is designed around the 27.5 wheel size with tire clearance up to 2.8", but is also capable of running 700c wheel setups with max tire clearance of 47c. It has 51mm I.S. disc caliper mounts and brake line guides as well. It only has the barnacles that matter most to the discerning bike tourist.
- Upper and lower barrel bosses
- One set of three pack mount on each leg
- Mid-blade eyelets
- Lower rack and fender mounts on the fork ends
- Max tire clearance up to 2.8”
Axle to Crown Length: 420 mm
Brake Mount (Fork): IS Disc Brake 160
Front Axle: QR x 100mm
Material: Steel
Offset: 43 mmStock Level:In StockStock Level:In StockPOA -
Stock Code:WSFK-FK9936
The Whisky No.9 CX Flat Mount fork is a lightweight, forward-compatible front-end upgrade, ideal for cyclocross, singletrack, gravel, or commuting. Redesigned, thoroughly tested, and dialed in for rough, off-road riding, it features the flat-mount disc brake standard, easy fender mounts, 12mm thru-axle dropouts, and internal brake routing for a refined, clean design. The fork provides big tire clearance, precise handling and tracking capabilities, and a comfortable ride quality that Whisky forks are known for.
- 12mm thru-axle, 100mm spacing
- Designed for flat-mount disc brakes
- 700c x 42mm or 650b x 50mm max recommended tire size
- Fender eyelets on outside of fork leg for easy mounting
- ASTM Condition 3 – For rough off-road riding and jumps less than 24
- Includes thru-axle and Whisky Parts Co. compression plug
- 45mm Offset
- Axle to Crown 395mmStock Level:In StockStock Level:In Stock$800.00 (RRP)POA -
Stock Code:WSFK-FK9902
SHORT TRAVEL FORK
For carving XC courses, going the distance on gravel roads, or roaming along bikepacking routes, the Whisky No.9 MTN Fork brings a new dimension to your mountain bike. The full unidirectional carbon construction paired with tapered steerer tube and thru-axle dropouts, delivers reliable strength and predictable steering.
- Lighter and stiffer than a suspension fork, the MTN Boost ST Fork is long enough to replace forks with 110–120mm of travel
- 485mm axle to crown
- Boost 110mm spacing with clearance for 29 x 3.0” or 27.5 x 3.0” tires
- Room for up to 180mm rotor
- Whisky No.9 Thru Bolt and compression plug includedStock Level:Out Of StockStock Level:Out of Stock$800.00 (RRP)POA -
Stock Code:BTFK-4055822521406
Built to withstand the most unforgiving conditions our BPS (=BikePackingSteel) fork is made of proven Cr-Mo steel and fiftted with all mounts needed to kit out your front-end with lights, racks and cages. Meant to replace suspension forks on world-exploring MTBs it can fit a huge variety of bikes with 120-140mm suspension forks.
MATERIAL: Cr-Mo steel
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
BRAKE: Post Mount, Max. 203 mm rotor size
MOUNTS: Triple cage / Head light / Mudguards / Lowrider rack
EXTRA INFO: Triple cage mounts, through-hole lowrider mounts, drilled crown, max. load per cage mount: 4.5Kg
INCLUDED: Through-Axle, star nut, Cable port plugs
WEIGHT: 1694 g (incl. Through-axle, 10 mounting bolts, uncut steerer)
TYRE CLEARANCE: 27.5 x 3.0 / 29 x 3.0
ASTM RIDING CONDITION: 3
THROUGH-AXLE TYPE: 15 X 110 mm
TA TOTAL LENGTH (CLOSED): 135 mm
TA THREADING DIAMETER X PITCH: M15 X 1.5
MIN. THREAD LENGTH:14 mmStock Level:In StockStock Level:In Stock$550.00 (RRP)Add To Cart
-
Stock Code:SMFK231909
A tough unicrown fork option for the Soma Wolverine and other gravel/CX frames with a 1-1/8" headtube. Version 3 model has a new fork end design and adopts the flat mount disc standard.
– Tange Infinity CrMo
– Unicrown straight blade
– 405mm axle to crown
– 50mm rake
– Fit flat mount disc (160mm rotor - with adapter)
– Fits 700x45mm tires with fenders (this has slightly less clearance than the lugged crown fork)
– Triple bosses on fork leg to fit low rider pannier rack or cage
– 15 x 100mm thru-axle included
– Weight: 3.3 lbs (with uncut 350mm steerer and thru-axle bolts)Stock Level:In StockStock Level:In Stock$390.00 (RRP)Add To Cart
