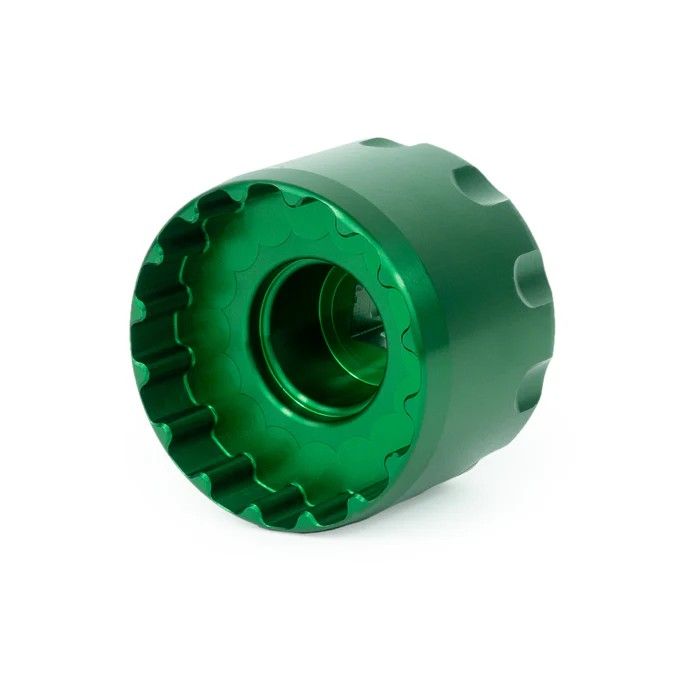

Abbey Shimano STEPS BB socket
Description
Just when we thought we were done making bottom bracket sockets we get enough requests to add a fitment for Shimano STEPS drive units. This tool is used to remove the chainring spider from the drive unit. It's low profile clears chainring mount and it's relived internally to make room for the bottom bracket axle and the integrated washer that is found on some spindles. Other than that, it's a really nice 3/8" square drive socket just like the rest of our socket range.
Made in Bend Oregon
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0019
Compatible with all Wheels Manufacturing (SRAM T47) bottom brackets that have the following spline patterns: 52mm, 16-notch 1/2 UNC threaded Press Rod.
SRAM Thin Flange T47 Bottom Bracket Socket Designed to create a tight grip on thin flange bottom bracket to avoid slipping while torquing cups into bike frames. This single-sided socket is used for installing and removing 52mm, 16-notch bottom bracket cups. The socket has a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red.$81.00 (RRP)Add To Cart
-
Stock Code:PDTL6460761
44mm, 16-notch external bearing bottom bracket cups including Shimano BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cups.
Also fits many external threaded types for Campagnolo, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, and others. Also fits disc brake rotor lockrings with 16 external notches and Shimano® TL-FC24 and TL-FC25 adapters.$26.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-COM
We all know how messy the bottom bracket situation is for modern bikes. We have you covered for almost all of your modern bottom bracket tool needs though. The BB Common was a staple of bottom bracket tools before things got complicated by oversized spindles and press fit. These start as a solid aluminum billet and get precision machined for a nice clean fit. They use a 3/8" square drive for use with your favorite ratchet or torque wrench. We even engrave the default torque spec on them so you don't have to look it up anymore. Starting in 2020 we revised these to be chamferless in an effort to make them work better with extremely thin centerlock lockrings.
Specs: A=46-46.9mm B=42.3mm
Compatibility:
Early Shimano 10spd gen outboard bearing bottom brackets
External spline centerlock lockrings(including Campagnolo)
Race Face "team" bottom brackets
Campagnolo Ultra, Power Torque and Ekar T47 68mm shell width only
SRAM GXP
Chris King Threadfit 24 bottom brackets
Ceramic Speed BSA for 24mm spindles
FSA Mega Exo bottom brackets
Kogel BSA-24 road and mountain bottom brackets
Phil Wood external bottom bracket
Wheels Mfg. BSA Threaded 24 and 24/22 spindles bottom brackets
Many other bottom brackets not listed also use this tool.
Made in Bend Oregon.$76.00 (RRP) -
Stock Code:ABTL-SOCKET-SS-12BSA30
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of the socket range, these sockets won't chew up your shiny new bottom bracket.
Compatible with:
Race Face Cinch
Sram DUB for 68/73mm shells
Zipp Vuma Quad
Rotor BSA 30
Cane Creek Hellbender (mfg 2021 and later)
If the bottom bracket has 12 notches and a 29 or 30 millimeter spindle and isn't made by Chris King, this is probably the right tool.
Made in Bend Oregon.$76.00 (RRP)Add To Cart
