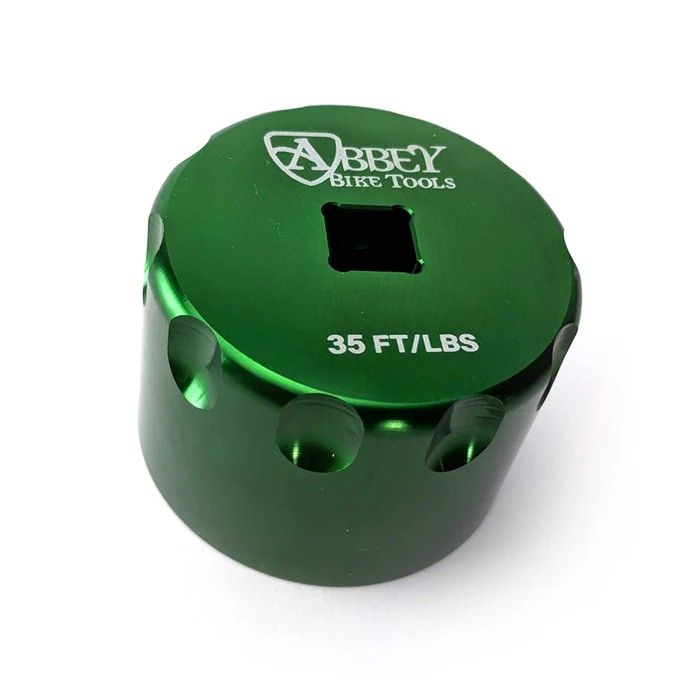

Abbey Bottom Bracket Socket - Common
Description
We all know how messy the bottom bracket situation is for modern bikes. We have you covered for almost all of your modern bottom bracket tool needs though. The BB Common was a staple of bottom bracket tools before things got complicated by oversized spindles and press fit. These start as a solid aluminum billet and get precision machined for a nice clean fit. They use a 3/8" square drive for use with your favorite ratchet or torque wrench. We even engrave the default torque spec on them so you don't have to look it up anymore. Starting in 2020 we revised these to be chamferless in an effort to make them work better with extremely thin centerlock lockrings.
Specs: A=46-46.9mm B=42.3mm
Compatibility:
Early Shimano 10spd gen outboard bearing bottom brackets
External spline centerlock lockrings(including Campagnolo)
Race Face "team" bottom brackets
Campagnolo Ultra, Power Torque and Ekar T47 68mm shell width only
SRAM GXP
Chris King Threadfit 24 bottom brackets
Ceramic Speed BSA for 24mm spindles
FSA Mega Exo bottom brackets
Kogel BSA-24 road and mountain bottom brackets
Phil Wood external bottom bracket
Wheels Mfg. BSA Threaded 24 and 24/22 spindles bottom brackets
Many other bottom brackets not listed also use this tool.
Made in Bend Oregon.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:PDTL6460242
New design features improved spline geometry and 3/8" drive pocket for use with torque wrenches.
Fits 16-notch X 44mm diameter external bearing bottom bracket cups and disc brake rotor lockrings.
Designed to stand up to the harsh conditions of professional use.
Precision laser cut design with ergonomic cushioned grip.
Pedro's flat wrenches provide professional quality, precision fit wrenches required to properly install, remove, and adjust components. Pedro's bottom bracket flat wrenches are made from 4mm thick, precision laser cut, heat-treated tool steel for the ultimate in strength and lasting performance. Pedro's designed each flat wrench to fit perfectly protecting the component and ensuring simple and safe usage for the mechanic. Each wrench also features an ergonomic single-ended design with cushioned grip to provide maximum leverage & comfort. The new Pedro's Bottom Bracket Wrench, Shimano® 16x44 features a 3/8" drive for use with torque wrenches. It fits 16-notch external bearing bottom bracket cups including Shimano® BB80, BB5700, XT® BB70, BB51, and previous external bearing threaded cups. Also fits many external Threaded types for Campagnolo®, Chris King®, FSA® MegaExo®, Hope™, SRAM®/Truvativ® GXP®, Race Face® X-type, Surly®, Wheels®, and others. Also fits disc brake rotor lockrings with 16 external notches and Shimano® TL-FC24 and TL-FC25 adapters. Backed by Pedro's lifetime warranty.$50.00 (RRP)Add To Cart
-
Stock Code:PDTL6460261
Socket Tool For 16-notch x 44mm External Bearing BB Cups and Disc Brake Lockrings
Fits all 16-notch x 44mm external bearing bottom bracket cups and updated design also fits 16-notch x 44mm disc brake lockrings and Shimano® TL-FC24 and TL-FC25 adapters.
Updated design features a square 3/8" drive. Also works with Pedro's snap-channel Pro Socket Handle, 24mm socket or wrench, or in a bench vise.
Professional quality, precision sized for the perfect fit.
Pedro's socket tools provide the professional quality, precision fit tools required to properly install, remove, and adjust modern drivetrain components. Pedro's designed each socket tool to fit perfectly protecting the component and ensuring simple and safe usage for the mechanic. The new External Bottom Bracket Socket, 16x44 is designed to work seamlessly with Pedro's snap-channel Pro Socket handle, with any 24mm socket/wrench, with any square 3/8" drive, or in a bench vise. Fits 16-notch x 44mm external bearing bottom bracket cups including Shimano® BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cups. Also fits many external Threaded types for Campagnolo®, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, and others. The new design will now also fits disc brake rotor lockrings with 16 external notches and Shimano® TL-FC24 and TL-FC25 adapters. Backed by Pedro's lifetime warranty.$32.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-HOPE
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of our socket range, these sockets won't chew up your shiny new bottom bracket.
Compatible with:
Hope BSA30 and T47 bottom brackets.
Made in Bend Oregon$76.00 (RRP)Add To Cart
