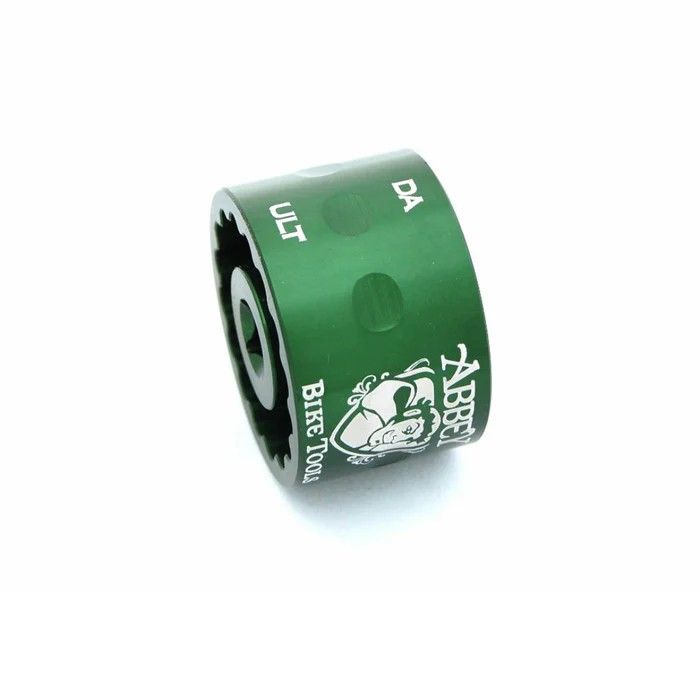

Abbey BB Socket - Shimano Dual Sided
Description
While most other manufactures cast or forge their bottom bracket tools we machine ours. Forging is indeed stronger but it lacks the precision that machining gives you. Whenever you're dealing with anodized surfaces great care needs to be taken to keep those surfaces from getting marred, gouged and striped out. That can be nearly impossible with some spanner style tools and difficult with other loose fitting sockets.
The most unique feature about this tool is the inner nub, that nub in the center of the tool is the same size as the crank spindle. What this does is give you a second point of contact that keeps the tool from camming off of the part. when trying to remove stubborn cups.
This dual sided socket is designed to work with the new Shimano DA-9000/XTR-BB93 bottom bracket as well 6800 Ultegra and 5800 105 11spd groups (BBR-60).
Not compatible with earlier 10spd. Please see BB Common.
Made in Bend Oregon
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0021
Thin Flange Bottom Bracket Sockets Designed to create a tight grip on thin flange bottom brackets to avoid slipping while torquing cups into bike frames. These single-sided sockets are used for installing and removing 48.5mm, 16-notch, 54mm 16-notch and 54mm 12-notch bottom bracket cups.
The sockets have a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red
Kit includes:
(1) 1/2" UNC Threaded Rod
(1) 1/2" Adjustable Press Stop
(1) 6806/29 Bearing Drift
(1) 6806 Bearing Drift
(1) 24x37 Bearing Drift
(1) Wheels MFG Thin Flange Bottom Bracket Socket for 48.5mm, 16-notch pattern.
(1) SRAM Thin Flange T47 Bottom Bracket Socket for 54mm 16-notch pattern.
(1) Praxis Thin Flange T47 Bottom Bracket Socket for 54mm 12-notch pattern.$345.00 (RRP)Add To Cart
-
Stock Code:WMTL-BP0019
Compatible with all Wheels Manufacturing (SRAM T47) bottom brackets that have the following spline patterns: 52mm, 16-notch 1/2 UNC threaded Press Rod.
SRAM Thin Flange T47 Bottom Bracket Socket Designed to create a tight grip on thin flange bottom bracket to avoid slipping while torquing cups into bike frames. This single-sided socket is used for installing and removing 52mm, 16-notch bottom bracket cups. The socket has a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red.$81.00 (RRP)Add To Cart
-
Stock Code:WMTL-BP0013
DESIGNED TO PRESS IN ALL CURRENT WHEELS MFG BOTTOM BRACKETS!
Our universal bottom bracket drift is designed to press all current Wheels Mfg bottom bracket cups in to your frame. The adapter is machined with multiple steps to fit common bottom bracket shell and bearing diameters listed in the Compatibility tab below. Each step is laser etched with the diameter size.
Drift can also can be used as a frame bottom bracket shell sizing guide!
Recommended for use with Wheels Mfg Universal BB Press, but can be used with PRESS-1 or PRESS-4 handles.
-Inner hole sized to fit 1/2" threaded rod
-Compatible with any other press with a 1/2" diameter rod
-Recommended for use with Wheels Mfg BP0006, BP0007
-Machined aluminum
We do not recommend it for use with press with a rod diameter less than 1/2". When used with a smaller rod, it is almost impossible to prevent the cups or bearings from pressing in straight.
* Sold individually (2 drifts required for some installations) *
Drifts fit the following BB shell sizes:
BB30 (42mm)
PF30 (46mm)
BB86, BB92 (41mm)
BBRight (46mm)
BB386EVO (46mm)
Cannondale BB30A (42mm)
Cannondale PF30A (46mm)
Specialized Carbon OSBB (46mm)
Specialized Alloy OSBB (42mm)
TREK BB90, BB95 (37mm)
PF24 (41mm)$40.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-STEPS
Just when we thought we were done making bottom bracket sockets we get enough requests to add a fitment for Shimano STEPS drive units. This tool is used to remove the chainring spider from the drive unit. It's low profile clears chainring mount and it's relived internally to make room for the bottom bracket axle and the integrated washer that is found on some spindles. Other than that, it's a really nice 3/8" square drive socket just like the rest of our socket range.
Made in Bend Oregon$85.00 (RRP)Add To Cart
