Abbey Suspension Top Cap Socket Set of 6
Description
Suspension service is a specialty within bicycle repair and it takes specialized tools to perform this work. One of the things that any factory tech will tell you is nice to have are sockets specifically made or altered for the low profile hex on the top of each fork leg. The lead in or chamfer on a standard socket will greatly decrease the contact between tool and part and can easily scratch or deform those nuts. For years shops have been grinding down their sockets to remove the chamfer. Problem is you're still often left with a loose fitting socket that is still prone to chewing up those delicate parts. That's why we started from scratch.
We made our sockets from billet aluminum to exacting tolerances to keep these parts in good shape. fully CNC'd machined with zero lead in, they make the specialty that is suspension service a little bit easier. They feature a 3/8" square drive for use with your favorite torque wrench as well as finger splines to help run the top caps into the fork legs with those oil soaked hands. We also kept them short (1" or 25mm for all sizes) to reduce the chance of them caming off of the top cap under torque.
Offered in a 7 individual sizes and a 6 socket set for most modern suspension forks on the market.

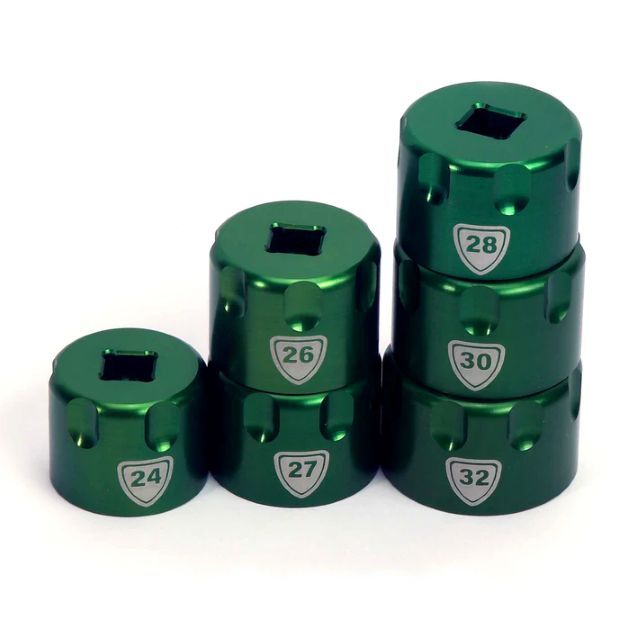

Socket Set includes: 24, 26, 27, 28, 30 and 32
Made in Bend Oregon.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:SWTL-DSD
Fox/Marzocchi Basic Damper Shaft Driver. A simple, affordable driver that threads onto the rebound shaft to safely knock the lowers off without damaging rebound or VVC internals.
What It Does:
- Threads onto the rebound shaft (damper side)
- Protects the meter rod, rebound assembly & VVC internals
- Lets you tap out the lowers without metal-on-metal impact
- Soft replaceable plastic tip (cheap + safe)
- Equivalent to Fox 398-00-682
Compatibility:
- Fox 34 / 36 / 38 / 40 – all years (damper side only)
- Marzocchi Bomber forks using Fox internals
- Not compatible with Taper-Cast forks$39.50 (RRP)Add To Cart
-
Stock Code:PDTL6460296
Pro BB Wrench, BSA30/DUB 12x46
- Precision laser cut design with ergonomic cushioned TPR grip and 3/8" drive for use with torque wrenches.
- Superior material and optimized heat treatment outlast the competition.
- Fits 12-notch x 46mm diameter external bearing bottom bracket cups.
Pedro's Pro BB flat wrenches are made from 4mm thick, precision laser cut, heat-treated tool steel for maximum strength and lasting performance.
Features an ergonomic single-ended design with cushioned TPR grip for leverage & comfort and fits 12-notch external bearing bottom bracket cups including SRAM® DUB™, Zipp® Vuma™, Race Face® Cinch™, Rotor® BSA30, Hawk Racing™ BB3086™, and others.$50.00 (RRP)Add To Cart
