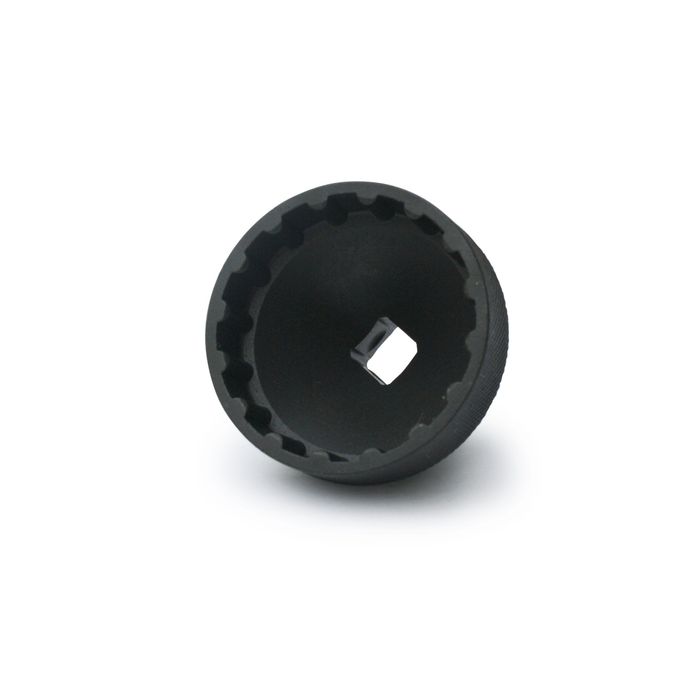

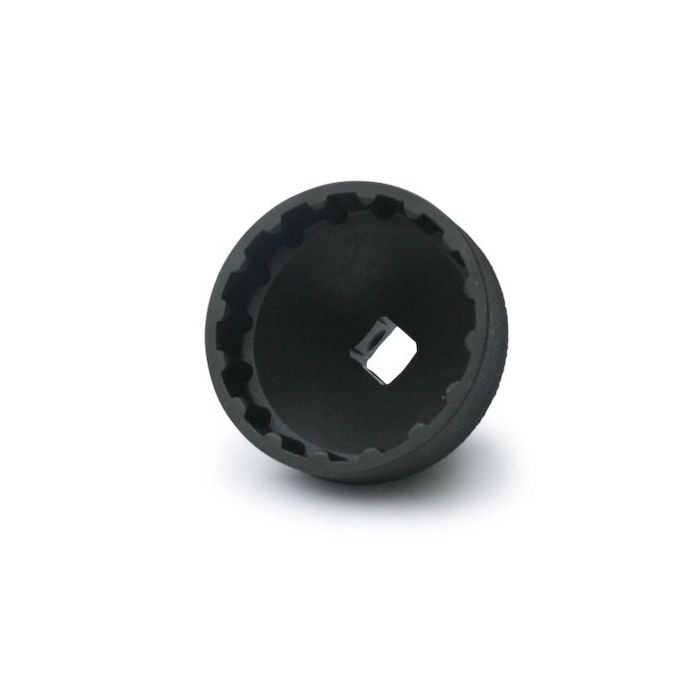

Pedros Extnl BB Socket 16notch x 44m
Description
Socket Tool For 16-notch x 44mm External Bearing BB Cups and Disc Brake Lockrings
Fits all 16-notch x 44mm external bearing bottom bracket cups and updated design also fits 16-notch x 44mm disc brake lockrings and Shimano® TL-FC24 and TL-FC25 adapters.
Updated design features a square 3/8" drive. Also works with Pedro's snap-channel Pro Socket Handle, 24mm socket or wrench, or in a bench vise.
Professional quality, precision sized for the perfect fit.
Pedro's socket tools provide the professional quality, precision fit tools required to properly install, remove, and adjust modern drivetrain components. Pedro's designed each socket tool to fit perfectly protecting the component and ensuring simple and safe usage for the mechanic. The new External Bottom Bracket Socket, 16x44 is designed to work seamlessly with Pedro's snap-channel Pro Socket handle, with any 24mm socket/wrench, with any square 3/8" drive, or in a bench vise. Fits 16-notch x 44mm external bearing bottom bracket cups including Shimano® BB80, BB5700, XT BB70, BB51, and previous external bearing threaded cups. Also fits many external Threaded types for Campagnolo®, Chris King, FSA MegaExo, Hope, SRAM/Truvativ GXP, Race Face X-type, Surly, Wheels, and others. The new design will now also fits disc brake rotor lockrings with 16 external notches and Shimano® TL-FC24 and TL-FC25 adapters. Backed by Pedro's lifetime warranty.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punchExpected Date:30 October 2026$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$80.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$226.00 (RRP)$239.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0006
Designed to press in all current Wheels Mfg bottom brackets! Our do-it-all Essential Bottom Bracket Press. Economical and easy to use, this tool is made up of two machined aluminum handles, 1/2" threaded rod and one machined aluminum frame drift.
Each drift is machined with multiple steps to fit common bottom bracket shell and bearing diameters listed in the Compatibility tab below. No more searching for the correct size drifts and parts. Just match up the drift to your frame's BB shell size and your bottom bracket's bearing size and press.
1/2" diameter threaded rod resists bending, allowing for the cups to align and press in straight. Drifts can also can be used as a frame bottom bracket shell sizing guide! Machined aluminum handles and drifts Red anodized drifts and handles Steps on drift are marked with diameter sizes Zinc-plated 1/2" diameter threaded rod Works with BB shells up to 132mm wide Includes one frame drift.
- 6802/29 OB 1/2" x 2
- 22x37 Drift 1/2" x 2
- 6806 OB 1/2" x 2
- 24x37 OB 1/2" x 2
- 1/2" Frame Drift
- 1/2-13 x 9.7" Threaded Rod UNC$202.00 (RRP)Add To Cart
-
Stock Code:PDTL6460211
Tool for Securely Holding Splined BB Socket onto BBs
Holds socket tool to BB axle to eliminate slippage during removal and installation. New spring preload allows increased flexibility and rotation during use.
New design works with square taper and splined axles with M8, M12, or M15 internal spindle thread.
Made from heat-treated tool steel for the ultimate in strength and lasting performance.
Use with Pedro's Splined Bottom Bracket Socket. Compatible with Pedro's Pro Socket Handle.
If you have even battled with an over-tightened Shimano® and ISIS Drive® splined bottom bracket cup, you know why Pedro's created the BB Socket Holder. Though these types of bottom brackets proved themselves as the standard for many years and continue to be found on many bikes, the tendency for these shallow splines to slip during removal or installation has resulted in more than a few expletives, high frustration levels, and worst of all, injuries. The Pedro's BB Socket Holder II provides a simple, shop quality tool that solves this problem. The new design works on bottom brackets spindles with M8, M12, or M15 threads and adds spring preload for increased flexibility and rotation during use. Backed by Pedro's lifetime warranty.Expected Date:30 November 2026$24.00 (RRP) -
Stock Code:ABTL-SOCKET-SS-16BSA30
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of the socket range, these sockets won't chew up your shiny new bottom bracket.
Compatible with:
FSA Mega Evo
Wheels Manufacturing bottom brackets using a "48.5mm" tool pattern
Not compatible with:
Hope BSA30 or TorqTite
Made in Bend Oregon.$76.00 (RRP)Add To Cart
-
Stock Code:ABTL-SOCKET-SS-E13
This bottom bracket socket is for use with E Thirteen's BB30 bottom brackets.
Made with the same top shelf aluminum alloy, to the same exacting fit and tolerance as the rest of our socket range, these sockets won't chew up your shiny new bottom bracket.
Made in Bend Oregon$76.00 (RRP)Add To Cart
