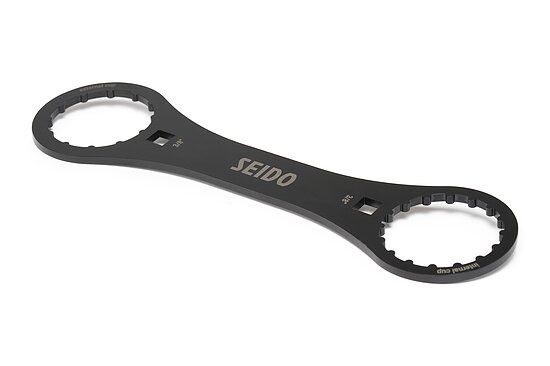

SEIDO T47 Bottom Bracket Combo Tool
Description
Fits all T47 Bombtrack BBs in complete Bombtrack bikes.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:CKTL-TBB007
The Chris King® Bottom Bracket External Cup Tool is anodized aluminum and features a 3/8" socket drive. Ahigh-quality torque wrench is recommended for installation. The spline interface on the reverse side perfectly matches the Chris King® Bottom Bracket cups to ensure a secure fit during installation while preventing damage to the finish of the bracket.
For use with Chris King Threadfit T47 30i and 24i Bottom Brackets.$68.00 (RRP)Add To Cart
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6901OB-2Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-BBGAUGE
The Bottom Bracket Gauge Tool was designed to provide all the necessary measurements to identify the proper bottom bracket for a specific bike configuration. The gauge can measure:
bottom bracket width
bottom bracket shell inner diameter
crank spindle length
crank spindle diameter
bearing inner diameter
A metric scale runs along the long edges for measuring bottom bracket shell width and crank spindle lengths. Durable red anodized aluminum with laser etching.
Overall size 7" x 3" x 0.125".$54.00 (RRP)Add To Cart
-
Stock Code:WMTL-EX0004
Bearing extractors set for pushing out 22mm, 24mm, 29, and 30mm ID sealed bearings from bottom bracket cups. Compatible with our 1/2" threaded press rod and handles (PRESS-7 and PRESS-7-PRO).
Includes
(1) 30mm ID sealed bearing extractor
(1) 29mm ID sealed bearing extractor
(1) 24mm ID sealed bearing extractor
(1) 22mm ID sealed bearing extractor
(1) 52mm receiver cup
(1) 44mm receiver cup sleeve
(1) 42mm receiver cup sleeve
(1) 39mm receiver cup sleeve
(1) bearing pusher shaft
Extractors for 25mm and 29mm ID bearings available separately:
BE-25MM-SETExpected Date:05 December 2025$276.00 (RRP) -
Stock Code:WMTL-BP0013
DESIGNED TO PRESS IN ALL CURRENT WHEELS MFG BOTTOM BRACKETS!
Our universal bottom bracket drift is designed to press all current Wheels Mfg bottom bracket cups in to your frame. The adapter is machined with multiple steps to fit common bottom bracket shell and bearing diameters listed in the Compatibility tab below. Each step is laser etched with the diameter size.
Drift can also can be used as a frame bottom bracket shell sizing guide!
Recommended for use with Wheels Mfg Universal BB Press, but can be used with PRESS-1 or PRESS-4 handles.
-Inner hole sized to fit 1/2" threaded rod
-Compatible with any other press with a 1/2" diameter rod
-Recommended for use with Wheels Mfg BP0006, BP0007
-Machined aluminum
We do not recommend it for use with press with a rod diameter less than 1/2". When used with a smaller rod, it is almost impossible to prevent the cups or bearings from pressing in straight.
* Sold individually (2 drifts required for some installations) *
Drifts fit the following BB shell sizes:
BB30 (42mm)
PF30 (46mm)
BB86, BB92 (41mm)
BBRight (46mm)
BB386EVO (46mm)
Cannondale BB30A (42mm)
Cannondale PF30A (46mm)
Specialized Carbon OSBB (46mm)
Specialized Alloy OSBB (42mm)
TREK BB90, BB95 (37mm)
PF24 (41mm)$40.00 (RRP)Add To Cart
