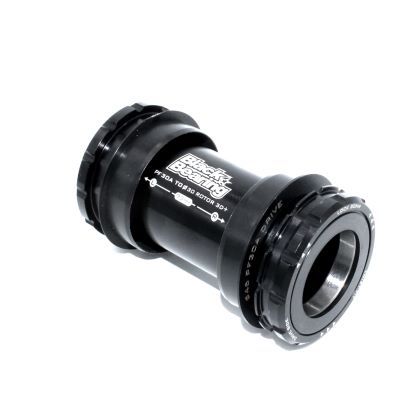

BlackBearing B5 PF30A 28mm Praxis
Description
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-WAVEWSH-24MM-10Stock Code:WMBB-WAVEWSH-30MM-10
Used to take set proper side-load in PF30, BB30 and similar bottom bracket systems when using 30mm, 24mm (Shimano, FSA, etc.) or 22/24mm (SRAM/TruVativ) spindle cranks.
- Choose from 30mm I.D. or 24mm I.D.
- Sold 10 washers per bag$45.00 (RRP)$45.00 (RRP) -
Stock Code:WMBB-BB30A-OUT-SRAMStock Code:WMBB-BB30A-OUT-SHIM
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately.**
- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notch$245.00 (RRP)$235.00 (RRP) -
Stock Code:WMBB-BB30-KIT-DUBStock Code:WMBB-BB30-KIT
Service Kit includes SB-6806 sealed bearings and 2 retaining clips.
Fits standard BB30 frames$92.00 (RRP)$85.00 (RRP) -
Stock Code:WMBB-T47-OUT-29MM
T47 threaded BB cups for T47 frames and 29mm spindle diameter SRAM DUB compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
Bearings: Enduro ABEC-3
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16-notch$240.00 (RRP) -
Stock Code:BBBB-BB90/95-24-B3Expected Date:19 March 2026$37.97 (RRP)
