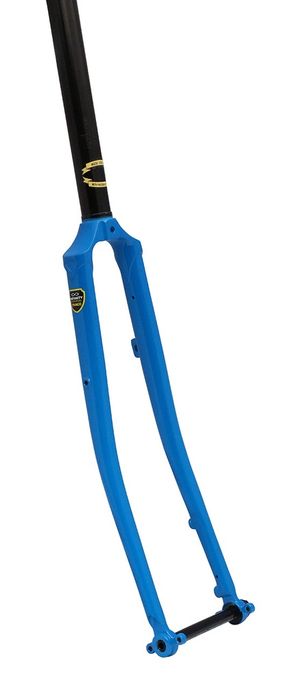

Soma Fork Fog Cutter CrMo Blue FlatMount
Description
CrMo steel lugged fork for the Soma Fog Cutter frame.
– Sloping lugged crown
– Flat disc mount
– Mini rack bosses on fork leg
– Fender eyelets
– 12 x 100 thru-axle (1.5 TP)
– 1-1/8" 350mm long CrMo steerer
– Axle to crown: 400mm
– Rake: 48mm
– Fits tyres up to 700c x 42mm
– Cerulean Blue
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SLFK-FK0652
Designed with the Midnight Special frame, this fork is built for comfort and speed on long road rides. It features a weight-saving uni-crown design, flat mount disc brakes, and a 12mm x 100mm thru-axle dropout as well as braze-ons for fenders and racks.
100% CroMoly construction, fully brazed crown
Mid-blade thru-blade eyelets
Rack and fender eyelets at the dropout
12mm x 100mm thru-axle
Clearance for 27.5” x 2.32” or 700c x 42mm tires
40mm offset
Axle-to-crown 400mmPOA -
Stock Code:SLFK-FK1478
The Disc Trucker Fork. The classic Long Haul Trucker fork is now available in a disc brake option. Fear not the loaded descent.
- 100% CroMoly steel construction, curved blades, powdercoated
- Extensive mounting options with threaded eyelets in four locations: double eyelet dropouts, mid-blade, and a pair drilled into the fork crown.
Brake Mount (Fork): Flat Mount 160
Steerer Type: Straight
Offset: 45 mm
Material: Stainless Steel
Steerer Tube Length (mm): 350 mm
Maximum Tire Clearance (Fork): 700x50
Front Axle: 12mm Thru x 100mm
Axle to Crown Length: 390 mm
Max Rotor Size (Fork): 160POA -
Stock Code:BTFK-4055822521307
- 4130 CroMo
- Thru Axle 12 mm x 100 mm, 1.5 thread pitch
- Rack / fender mounts
- Internal hub dynamo cable routing
- Fork max tyre clearance w/o fender 700C x 42C
- Axle to Crown 390mm
- Fork Offset 55mm$225.00 (RRP)Add To Cart
-
Stock Code:BTFK-4055822521390
BPC (= BikePackingCarbon) fork replaces maintenance-needy and heavier suspension forks on mountainbikes to lower weight and reduce the amount of parts that could fail. With its triple cage mounts that makes it a perfect fork for MTB-bikepacking rigs or wide-tired ultra-distance race builds.
MATERIAL: Full UD carbon fiber
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
BRAKE: Post Mount, max. 203 mm rotor size
INTERNAL ROUTING: Dynamo cable
MOUNTS: Triple Cage max. load per cage mount: 4.5Kg
INCLUDED: Through-Axle, Expander, Cable port plugs
WEIGHT: 650 g (incl. 6 mounting Bolts, uncut steerer)
TYRE CLEARANCE: 27.5 x 3.0 / 29 x 3.0
ASTM RIDING CONDITION: 2
THROUGH-AXLE TYPE: 15 X 110 mm
TA TOTAL LENGTH (CLOSED): 158 mm
TA THREADING DIAMETER X PITCH: M15 X 1.5
MIN. THREAD LENGTH: 10 mm$690.00 (RRP) -
Stock Code:BTFK-4055822521406
Built to withstand the most unforgiving conditions our BPS (=BikePackingSteel) fork is made of proven Cr-Mo steel and fiftted with all mounts needed to kit out your front-end with lights, racks and cages. Meant to replace suspension forks on world-exploring MTBs it can fit a huge variety of bikes with 120-140mm suspension forks.
MATERIAL: Cr-Mo steel
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
BRAKE: Post Mount, Max. 203 mm rotor size
MOUNTS: Triple cage / Head light / Mudguards / Lowrider rack
EXTRA INFO: Triple cage mounts, through-hole lowrider mounts, drilled crown, max. load per cage mount: 4.5Kg
INCLUDED: Through-Axle, star nut, Cable port plugs
WEIGHT: 1694 g (incl. Through-axle, 10 mounting bolts, uncut steerer)
TYRE CLEARANCE: 27.5 x 3.0 / 29 x 3.0
ASTM RIDING CONDITION: 3
THROUGH-AXLE TYPE: 15 X 110 mm
TA TOTAL LENGTH (CLOSED): 135 mm
TA THREADING DIAMETER X PITCH: M15 X 1.5
MIN. THREAD LENGTH:14 mm$550.00 (RRP)Add To Cart
