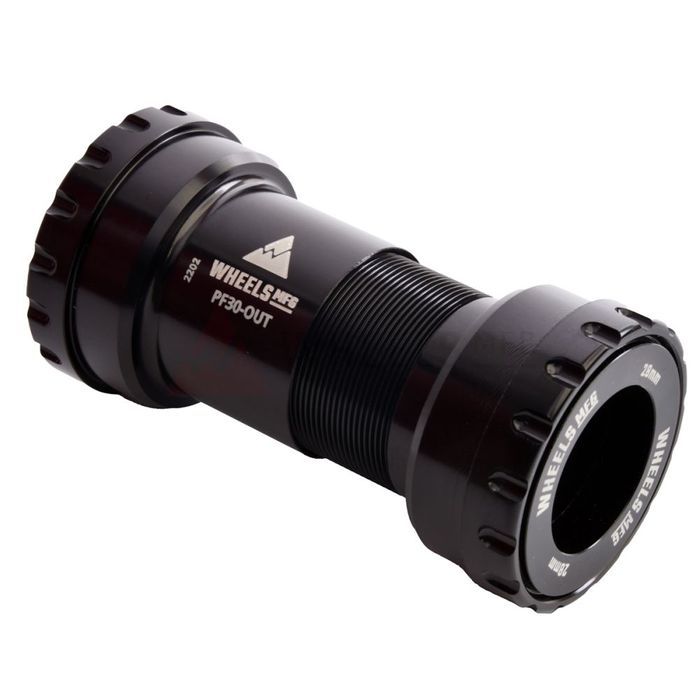

Wheels Mfg PF30-Outboard BB 28/30 Praxis
Description
PF30 bottom bracket with outboard bearings for use with M30 28/30mm spindle Praxis - comptiable cranksets. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 28/300mm
Tool Pattern: 48.5mm x 16 notch
