Wheels MFG T47A BB Shimano ABEC 3
Description
T47a (asymmetrical) threaded BB cups for T47a frames and 24mm diameter spindle compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility
- Cervelo T47a 79mm shell width
- Factor T47a 77.5mm shell width
- Felt T47a 77mm shell width
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BBRIGHT-OUT-30
Thread together bottom bracket for frames using the BBRight™ bottom bracket standard and BB386 30mm spindle diameter cranks. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be equivalent to a BB386 length*
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BBRight™ Press Fit
Bottom Bracket Shell Width: 79mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Over Bearing Width: 91.5mm in 79mm wide shell*$216.00 (RRP) -
Stock Code:WMBB-T47IN-PRX
T47 threaded BB cups for T47 frames and M30 28/30mm spindle diameter Praxis compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
1 - 28mm Insert$227.00 (RRP) -
Stock Code:WMBB-BB-BSA29-BBStock Code:WMBB-BB-BSA29-BB-6Stock Code:WMBB-BB-BSA29-BB-9Stock Code:WMBB-BB-BSA29-BB-3Stock Code:WMBB-BB-BSA29-BB-4Stock Code:WMBB-BB-BSA29-BB-7Stock Code:WMBB-BB-BSA29-BB-1Stock Code:WMBB-BB-BSA29-BB-5
Run 29mm spindle SRAM DUB compatible cranks in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806/29 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer$209.00 (RRP)$209.00 (RRP)$209.00 (RRP)$209.00 (RRP)$209.00 (RRP)$209.00 (RRP)$209.00 (RRP)$209.00 (RRP) -
Stock Code:WTBB-BSA-24-RSIL
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 spline tool
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacers$259.00 (RRP)Add To Cart
-

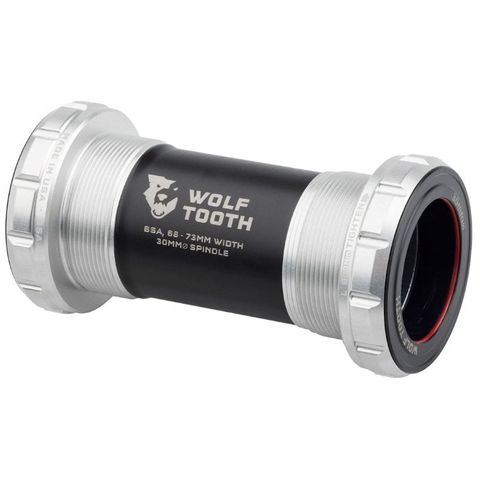

Stock Code:WTBB-BSA-30-PRU
Wolf Tooth BSA Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 30mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm BSA bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 46-12 spline tool
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 30mm spindle spacers$259.00 (RRP)Add To Cart
