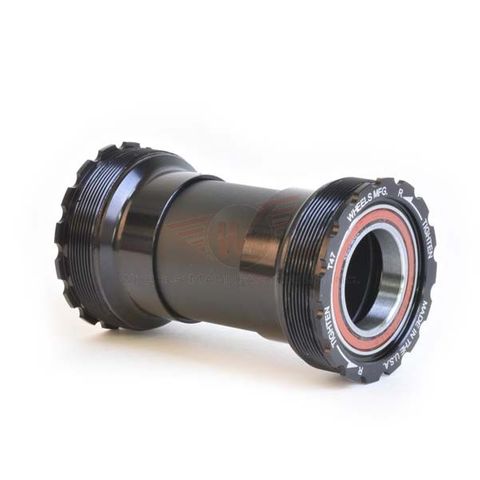

Wheels MFG T47 Inboard PraxisM30 28-30mm
Description
T47 threaded BB cups for T47 frames and M30 28/30mm spindle diameter Praxis compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
1 - 28mm Insert
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB-ROAD-17Stock Code:WMBB-BB-ROAD-16Stock Code:WMBB-BB-ROAD-14
Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 5 Angular Contact sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks$211.00 (RRP)$172.00 (RRP)$211.00 (RRP) -
Stock Code:WMBB-BB86-OUT-SRAMAC
BB86/92 THREAD TOGETHER ANGULAR CONTACT BB FOR 24/22MM (SRAM) CRANKS - BLACK
Directly replaces all OEM BB86 products. Use with 24/22mm (SRAM, Truvativ, Etc.) cranks. Enduro ABEC 5 Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum is superior in function and durability to plastic. Fully serviceable.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Weight: 98g
Made in the USA
Machined, anodized black aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Fits bottom bracket shell widths from 86mm to 92mm
Use with 24/22mm (SRAM, Truvativ, Etc.) cranks$230.00 (RRP)Add To Cart
-
Stock Code:WMBB-386EVOBB-SRAMACStock Code:WMBB-386EVOBB-SRAMBBStock Code:WMBB-386EVOBB-SHIMStock Code:WMBB-386EVO-BBStock Code:WMBB-386EVO-BB-ACStock Code:WMBB-386EVO-CER-ZEROStock Code:WMBB-386EVO-BB29MMStock Code:WMBB-386EVOBB-PRXStock Code:WMBB-386EVOBB-SHIMAC
Threaded BB for 386EVO frames. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
** Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).**
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB386EVO
Bottom Bracket Shell Width (mm): 86.5mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Weight: 126g
*Will accept 24mm and 24/22mm cranksets using Wheels Mfg. 386EVO BB / Crank Adapters$219.00 (RRP)$203.00 (RRP)$216.00 (RRP)$202.00 (RRP)$219.00 (RRP)$445.00 (RRP)$204.00 (RRP)$203.00 (RRP)$218.00 (RRP) -
Stock Code:WMBB-T47IN-PRX
T47 threaded BB cups for T47 frames and M30 28/30mm spindle diameter Praxis compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
1 - 28mm Insert$204.00 (RRP) -
Stock Code:WTBB-T47E-24-BLKStock Code:WTBB-T47E-24-ORGStock Code:WTBB-T47E-24-PRUStock Code:WTBB-T47E-24-RSIL
Wolf Tooth T47 External Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm T47 bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 (24mm) and 46-12 (29mm DUB, 30mm) spline bottom bracket tools
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 24mm spindle spacersExpected Date:01 October 2025Expected Date:01 October 2025Expected Date:01 October 2025Expected Date:01 October 2025$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
