Wheels MFG Bearing Drift Set Support Kit

Stock Code:

WMTL-BP0004

Price:

Price: $295.00 (RRP)

Description

This drift and over axle set is used to install less common-sized thru-axle and frame sealed bearings.

Compatible with the 3/8 Wheels Mfg. BP0001, BP0005, Press 1 handles and rod.

Originally Driftset-Hub1

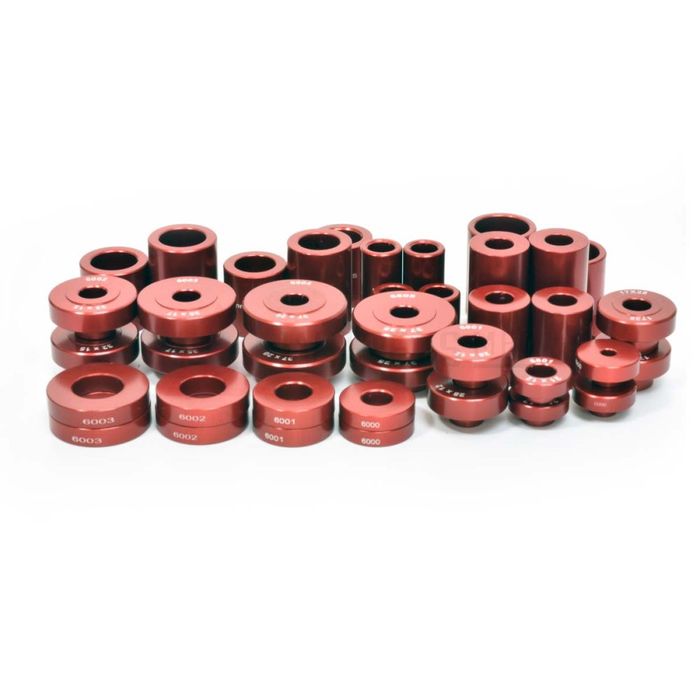

Contains the following Open Bore Drift sizes:

(2) 6000 Open Bore
(2) 6001 Open Bore
(2) 6002 Open Bore
(2) 6003 Open Bore
(2) 6801 Open Bore
(2) 6805 Open Bore
(2) 6900 Open Bore
(2) 6904 Open Bore
(2) 17x28 Open Bore

Contains the following Over Axle Drift sizes:

(2) 6000 Over Axle
(2) 6001 Over Axle,
(2) 6002 Over Axle,
(2) 6003 Over Axle
(2) 6900 Over Axle,

Contains the following speed spacers:

(2) Frame Linkage Standoff 20
(2) Frame Linkage Standoff 30
(2) Speed Spacer 30mm
(1) Speed Spacer 15x25
(1) Speed Spacer 15x35
(1) Speed Spacer 17x25
(1) Speed Spacer 17x35
(1) Speed Spacer 20x25
(1) Speed Spacer 20x35
