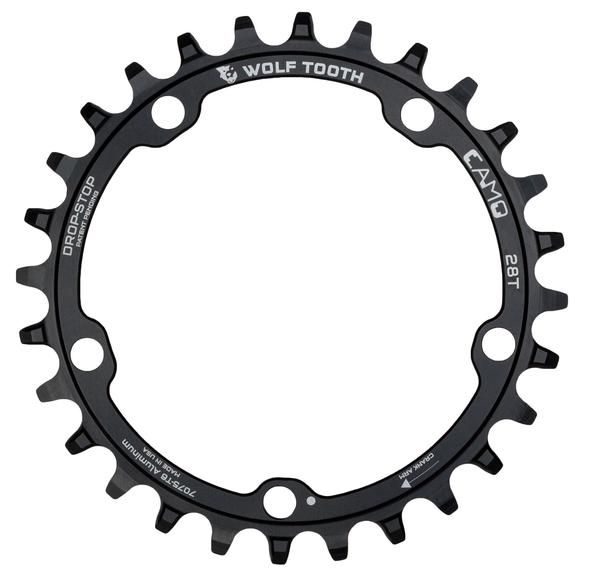

WOLF TOOTH CAMO ALUMINUM CHAINRINGS
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
For 1x9, 1x10, ,1x11 and 1x12 SRAM Eagle
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
Webshops and Bike shops
Related Products
-
Description
The perfect solution when you need something smaller than a 30t on your 104/64 BCD cranks or your 11-speed Shimano XT and SLX 96/64 BCD cranks. Also, they look great when paired with our 104 BCD bash ring on a 104/64 BCD crankset
- Fits any 104/64 BCD crankset (104 BCD is the middle/big position 64 is the smallest ring position)
- Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits any 104/64 BCD crankset (104 BCD is the middle/big position 64 is the smallest ring position)
- The Universal Model fits both 104/64 BCD cranksets and the Shimano 11 speed XT M8000 cranks and SLX M7000 cranks.
- Drivetrains: 1x9, 1x10, 1x11 and 1x12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings
If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline (approximate as BB centering and cranksets vary)
Chainline is 46 mm on a triple and 48 mm on a double crank
Chainline on a Standard M8000 or M7000 crankset is 48mm and 50mm on a boost version.
You will use the stock bolts to mount this chainring -
Description
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
Compatibility
These rings are for use with 110 BCD 5 arm cranksets.
Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
Not compatible with Campy CX10/11.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability -
Description
These chainrings are for Shimano GRX cranks. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. The newly updated tooth profile works with SRAM Flattop chain in addition to other 9, 10, 11, and 12 spd chains (except Shimano HG+ 12 speed chain).
Compatibility
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop® FT tooth profile is compatible with SRAM Flattop chain
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile provides the ultimate chain retention and mud shedding ability -
Description
High quality, forged and CNC machined Narrow-Wide Chainring, designed with the SRAM 3 bolt direct mount fitting.
- 3mm Offset -
Description
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
