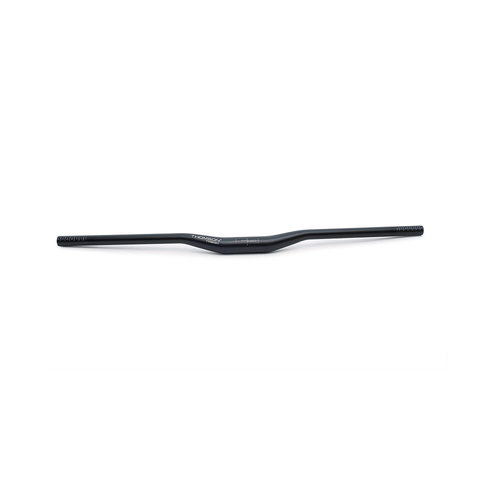

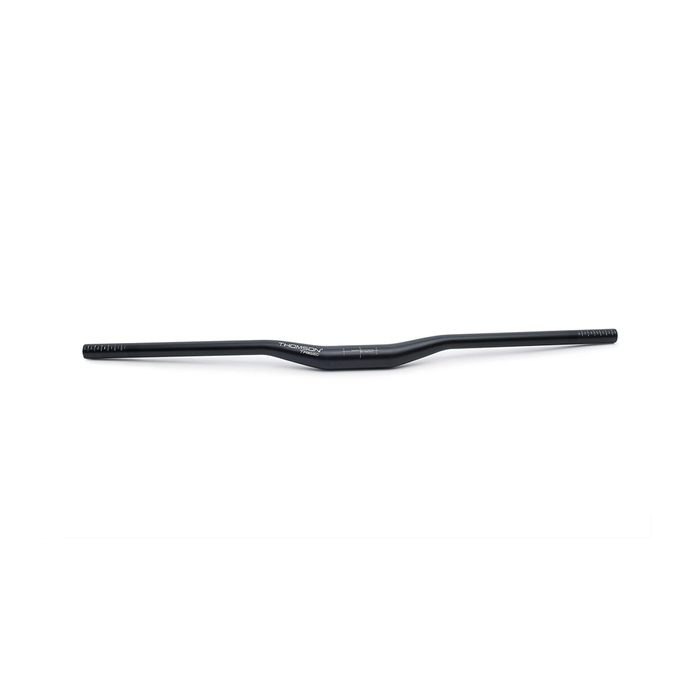

THOMSON TR35C CARBON HANDLEBARS
Our new Ø35mm x 800mm wide bar comes in 2 rise options: a center rise (8mm) and 20mm rise option. All Ø35mm bars feature a 9° backsweep, and 5° upsweep.
Our new Ø35mm x 800mm wide bar comes in 2 rise options: a center rise (8mm) and 20mm rise option. All Ø35mm bars feature a 9° backsweep, and 5° upsweep.
Webshops and Bike shops
Related Products
-
Description
The Open bar is an upright bar but not an uptight bar. It’s equally suited to cruising, commuting, and even some singletrack, though it should be noted that this is not by any means a DH bar. We left it a bit flexy to take some of the harsh out of your ride. The angle makes it comfy for your wrists. The width enables loads of control. It’s got plenty of room for grips, shifters and brake levers. Knurled clamp area. 4130 CroMoly steel.
Clamp diameter: 25.4mm
Width: 666mm
Rise: 40mm
Sweep Angle: 53 degrees
Color: E.D. coated Black.POA -
Description
A super wide cousin of the Sparrow designed for offroad use. Inspired by the sweep angle of the Jeff Jones H-Bar. The Clarence makes it easy to throw the bike around in technical situations. Plus the grip position feels really natural. The 31.8mm version is slightly wider than the 25.4mm.
- 6061-T6 aluminum
- 34° back sweep
- 19° upsweep
- 37mm rise
- 670mm width
- 31.8mm center
- 22.2mm ends -
Description
A flat bar with an off center clamp area allowing a flat riding position and reversible for an 8mm drop for 29 inch bikes. 8° of backsweep for comfort. 730mm (29?) in width for plenty of leverage.
Bars are made with three different fiber types with different tensile strength and tensile modulus, including High Strength carbon fibers. This helps to allocate stiffness and flex where needed.
Bars are molded with an EPS mandrel inside to avoid wrinkles inside the layup during molding. Most other bars are molded over inflated nylon bladders.
All carbon fiber material is produced by Toray and uses tailor made nano Epoxy Resin for very high impact resistance. Toray is the main supplier of carbon fiber to Boeing and Airbus.
1.5K woven impact ends help prevent damage to uni directional fibers from shortening the bar or impact with the ground.
Weight 185g
*NOT SUITABLE FOR BAR ENDS -
Description
Cowbell blends speed, comfort, and efficiency for high performance efforts on gravel and paved roads. Designed with gravel racing and riding in mind, Cowbell bars feature a 12-degree flare that puts your hands, wrists, and arms into a natural, comfortable position in the drops.
- Lightweight and strong 7050-T76 series alloy construction with polished finish
- Drop/Reach: 115/68mm
- 31.8mm clamp diameter with 120mm width for use with Salsa Anything Cradle and aerobars
- 12 deg flare and drop anglesPOA -
Description
- The Gravel bar featuring internal routing and 25 degree flare.
- The updated line up features satin finish, Toray lay up and Nano Epoxy Resin for very high impact resistance.
- The layup uses 3 different fiber types with different tensile strengths and tensile modulus, including High Strength carbon fiber. This helps allocate stiffness and flex where needed.
- All carbon fiber is produced by Toray and uses tailor-made Nano Epoxy Resin for very high impact resistance. Toray is the main supplier of carbon fiber for Boeing and Airbus.
- They are made in one piece, not three pieces co-molded and glued together. The bars are molded over an EPS mandrel to avoid wrinkles inside the layup during molding. Most other bars are molded over inflatable nylon bladders.
- Flared dirt drop available in 44cm, and 46cm, with 25° flare, Drop 130mm, Reach 90mm
