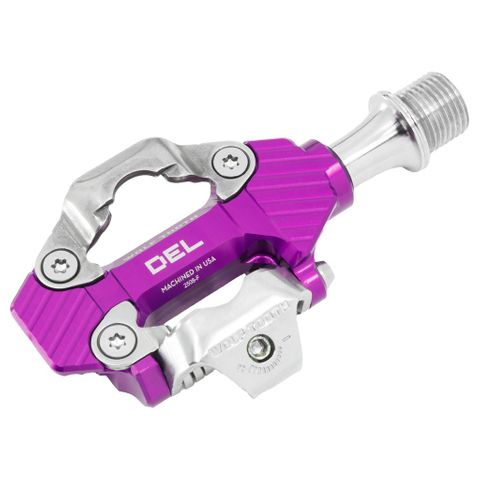

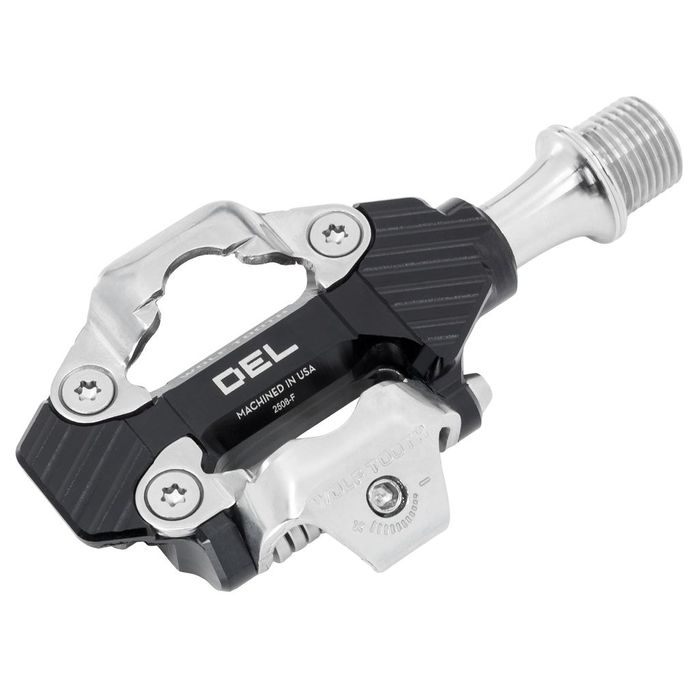

Wolf Tooth DEL Gravel Clipless Pedal
Wolf Tooth DEL Gravel Race Clipless Pedals feature a one-sided design for peak speed and consistent performance in gravel races. These SPD-compatible bike pedals are exceptionally lightweight at only 216 g, while still featuring a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one-sided design features an open center between the binding cages for mud shedding. It has all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions.
The DEL Gravel Race Clipless Pedals have an adjustable Q factor of 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacer. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
Thinner than the competition at 14.7 mm (compared to Xpedo MF8 at 17 mm, Shimano XTR 9200 at 16.5 mm, and Eggbeater 3 at 17 mm)
Lighter weight than the competition at 216 g (compared to Xpedo MF8 at 220 g, Shimano XTR 9200 at 316 g, and Eggbeater 3 at 265 g)
Larger platform area for power transfer than the competition at 559 mm² (compared to Xpedo MF8 at 46 mm², Shimano XTR 9200 at 144 mm² and Eggbeater 3 at 102 mm²)
Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately)
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Wolf Tooth DEL Gravel Race Clipless Pedals feature a one-sided design for peak speed and consistent performance in gravel races. These SPD-compatible bike pedals are exceptionally lightweight at only 216 g, while still featuring a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one-sided design features an open center between the binding cages for mud shedding. It has all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions.
The DEL Gravel Race Clipless Pedals have an adjustable Q factor of 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacer. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.
Thinner than the competition at 14.7 mm (compared to Xpedo MF8 at 17 mm, Shimano XTR 9200 at 16.5 mm, and Eggbeater 3 at 17 mm)
Lighter weight than the competition at 216 g (compared to Xpedo MF8 at 220 g, Shimano XTR 9200 at 316 g, and Eggbeater 3 at 265 g)
Larger platform area for power transfer than the competition at 559 mm² (compared to Xpedo MF8 at 46 mm², Shimano XTR 9200 at 144 mm² and Eggbeater 3 at 102 mm²)
Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately)
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA
Webshops and Bike shops
Related Products
-
Description

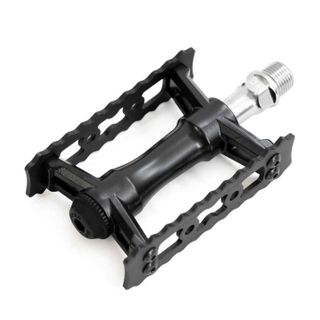

MKS BM-7 Pedals Black
