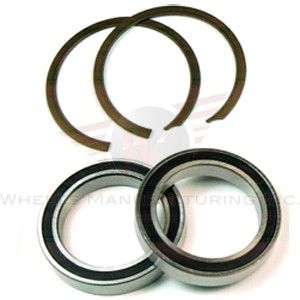

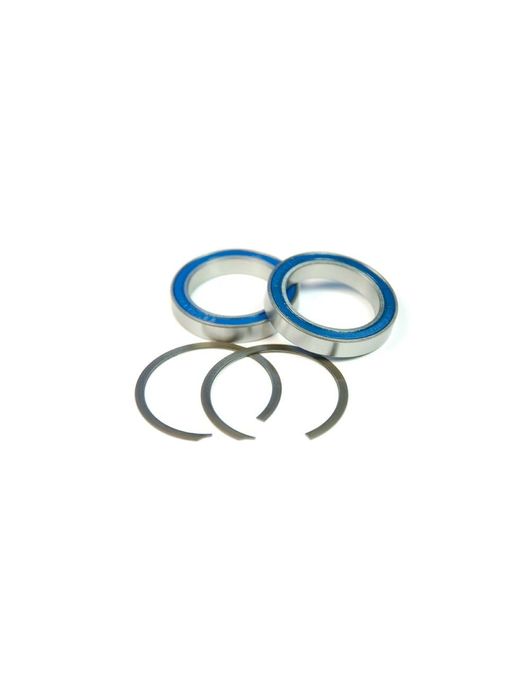

WHEELS MFG BB30 KIT
BB30 service kit for SRAM DUB cranks includes (2) Enduro 6806/29 ABEC-3 sealed bearings and 2 retaining clips.
Bearing Dimensions: OD: 42mm / ID: 29mm / Width: 7mm
Enduro ABEC-3 bearings
Use with SRAM DUB cranks
Note: SRAM DUB cranksets are not designed to work in 68mm or 73mm wide shells with inboard bearings. Use only if your frame is a direct-fit bearing system, and the BB shell width is 86.5mm or wider.
Service Kit includes SB-6806 sealed bearings and 2 retaining clips.
Fits standard BB30 frames
Webshops and Bike shops
Related Products
-
Description
Wheels Manufacturing’s new BB30 to Outboard bottom bracket is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into BB30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm -
Description
The BBMULTI-SHIM kit adapts Shimano or similar 24mm cranks to virtually any BB30/PF30/BB30a frame, including mountain bikes, 2x10 systems, narrow-shell road bikes, road triples, etc. For use only with bottom bracket shell widths from 68mm to 83mm.
This kit includes 2 adapter shims and a 14-piece assortment of left and right side spacers.
Simply tap the adapters into the 6806 bearing in the BB shell or cups, then install the cranks using the included spacers to adjust chainline, or to take up any side-to-side movement in the crank.
Machined engineering-grade Delrin. -
Description
T47 threaded BB cups for T47 frames and 22/24mm diameter spindle cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
** Notes:
Wheels Mfg T47 internal bearing BB for use with 24/22mm spindle cranks may not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2) when used in BB shells with widths of 86.5mm and wider. If your Quarq spider has an ID less than 49.5mm, your crank may rub on the BB cup.
Compatible with Quarq DZero powermeter spiders with GXP spindles except Eagle MTB. -

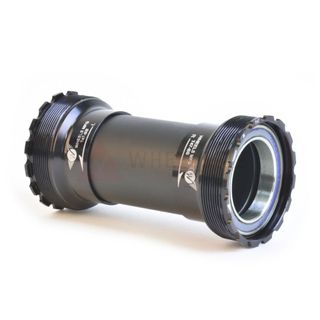

Description
T47 threaded BB cups for T47 frames and 29mm spindle diameter SRAM DUB compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
Bearings: Enduro ABEC-3
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16-notch -
Description
REQUIRES A CHRIS KING THREADFIT24 FIT KIT
ThreadFit™ 24 fits 24mm cranks in 68mm BB shells.
Our ThreadFit™ 24 bottom bracket is designed and built to be durable, serviceable, and silent. Manufactured to create the most precise interface between your frame’s bottom bracket shell and your cranks, it makes your cranks spin lightly and easily, without interference, for the lifetime of your bike (with a little regular service). King’s legendary, angular-contact bearings, both steel and ceramic, are the best in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Legendary made-in-house bearings
- A Fit Kit is required for use
