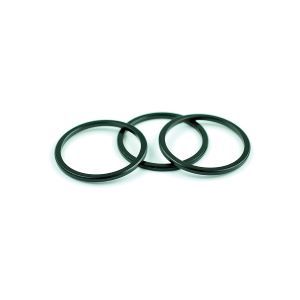

BlackBearing BB30/PF30 Spacers x 3
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB86-FAT-AC
PRESSFIT 41MM ANGULAR CONTACT FAT BIKE BB FOR 24MM (SHIMANO) CRANKS - BLACK
BB86 threaded BB for Fat Bike PF41.
Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter bottom bracket shell, with a width of 121mm or 132mm.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).$216.00 (RRP)Add To Cart
-
Stock Code:WMBB-BB30A-OUT-SRAMStock Code:WMBB-BB30A-OUT-SHIM
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately.**
- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notchExpected Date:27 November 2025$214.00 (RRP)$210.00 (RRP) -
Stock Code:WMBB-T47-BB-SHIM-BB
T47 threaded BB cups for T47 frames and 24.00mm spindle diameter cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 132mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 24.00mm
Over Bearing Width: 91.5mm in 86.5mm wide shell*
Tool Pattern: 48.5mm x 16-notchExpected Date:27 November 2025$202.00 (RRP) -
Stock Code:TGBB-TGLN3922-122
Tange-Seiki LN 3922 JIS cartridge bottom bracket features ultra-smooth sealed cartridge bearings, solid boron steel spindle and steel cups.
- 68mm English-threaded (1.370" x 24 tpi)
- JIS square taper
- steel cups & sleeve
- requires Park Tool BBT-22 for installation & removal
- crank arm bolts are not included$49.00 (RRP)Add To Cart
-
Stock Code:WTBB-T47E-30-BLKStock Code:WTBB-T47E-30-ORGStock Code:WTBB-T47E-30-PRUStock Code:WTBB-T47E-30-RSIL
Wolf Tooth T47 External Bottom Brackets are engineered to be smooth, durable, lightweight, fast, and user-serviceable. The ground-up design features custom bearings, seals, bushings, and cups, which eliminate creaking and balance best-in-class weather sealing with optimized bearing radial compression, alignment, and preload for low drag.
The bearings in Wolf Tooth Bottom Brackets feature a custom design. The balls and race are made from a hardened chrome bearing steel. This has a higher surface hardness than stainless, which improves the durability of bearing races and reduces spinning resistance and noise. An ACOSUR ZNA coating has also been applied to the race to provide corrosion resistance that is equal to or better than stainless steel after a 500-hour saltwater test. Bearing material paired with an extensive sealing system and the elimination of metal-on-metal contact means Wolf Tooth Bottom Brackets have superior performance in all conditions.
- Compatible with 24mm spindle cranksets
- Adjustable-width sleeve fits 68mm - 73mm T47 bottom bracket shells
- Best-in-class weather sealing protects bearings from water, mud, and debris
- Custom polymer spindle bushings eliminate creaking
- Installation and removal with standard 44-16 (24mm) and 46-12 (29mm DUB, 30mm) spline bottom bracket tools
- Replacement parts available
- Engineered, machined, and assembled at Wolf Tooth HQ in Minnesota, USA
- Lifetime warranty on the bearings
Bottom brackets ship with the following shell and spindle spacers:
- 2x 2.5mm shell spacers
- 2x 0.5mm, 2x 1mm, 2mm, 3mm, 5mm 30mm spindle spacers$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)$270.00 (RRP)
