Pedals

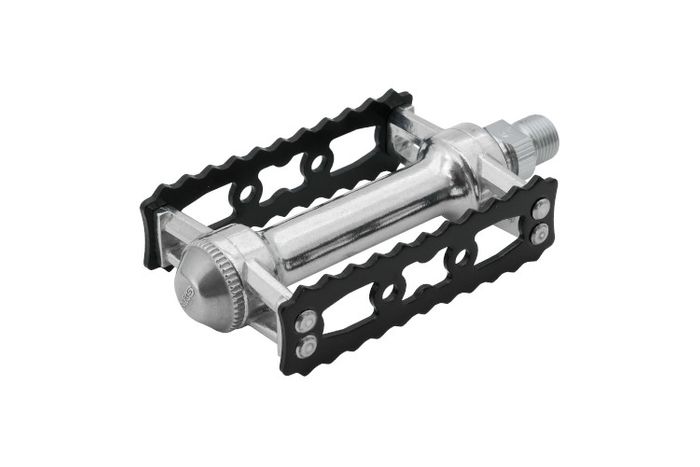

The Gordito is the latest addition to our Sylvan family of pedals. The name Gordito comes from a South American Spanish language “term of endearment” that translates to chubby , but is used like the word darling. The Gordito pedal is large and lovable.
Maintaining the same width of the Sylvan touring, we have increased the length of the pedal body allowing for a large comfortable platform for the rider to firmly rest their feet. This pedal is ideal for those looking for a comfortable ride, as well as those with large legs or shoes. Like the Sylvan touring, the cage plate tooth profile is grippy, but not particularly aggressive.

- The largest platform in the Sylvan series, 94 mm x 85 mm.
- Built around our proven and user serviceable Cup & Cone bearing system.
- The step plates are attached with screws, which can be replaced by the user if damaged.

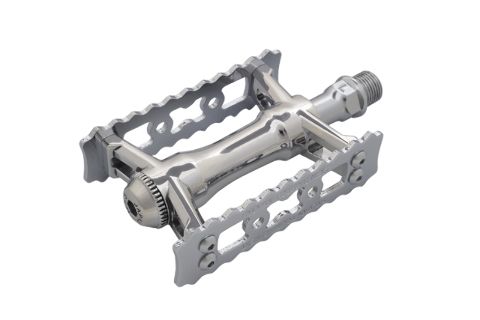

One of the most popular pedal of MKS, SYLVAN pedals from its first release in 1979, received a renovation to [ NEXT ] stage.
High-spec version of SYLVAN, -NEXT-.
In place of traditional cup & cone bearing system, we adopt triple sealed bearings which produces smooth rotation and maintenance free pedaling.

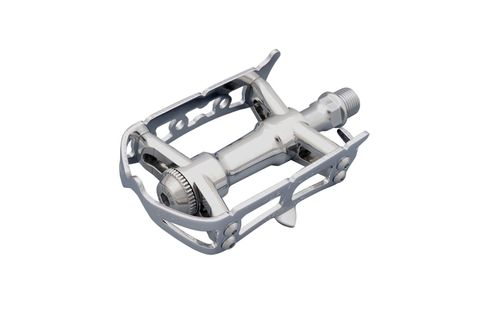

Highest grade quill pedal.
Quill type cage plate allows pedaling with wide shoes when clips attached.
Weight reduction compare with current SYLVAN pedal, and lower stack height make power transfer efficiently.
To keep pedaling feeling and sophisticated style, we succeeded size & form of current SYLVAN ROAD cage plate
Mirror finished body and Chrome-plated cage plates provide dignity and quality.
Bolt fixed step plates are replaceable when damaged.

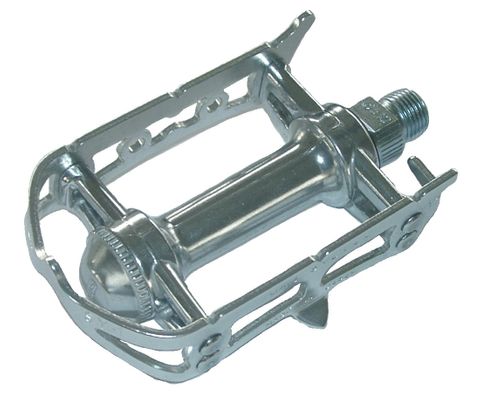

Traditional 'quill' Campag "copy" type pedal for use with toe clips (not included), pronounced quill on outer end of pedal helps to keep feet located within the pedal cage perimeter.

- Cro Mo axle, all alloy body construction.
- Length: 62mm
- Width: 100mm
- Weight: 174g each

One of the most popular pedals of MKS, SYLVAN TOURING from its first release in 1979, received a renovation to the NEXT stage.

- Super smooth triple sealed bearings
- 338g (50g lighter than standard Sylvan Touring)
- Aluminum body material
- Dimensions W94 x L63

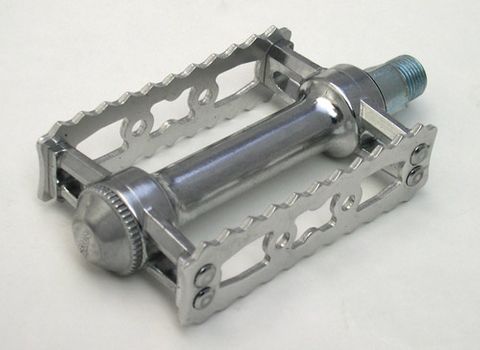

These are longish "rat trap" type pedals. Aluminum body, CrMo spindle. A good choice for riders with wide feet.
Bearings can be serviced/adjusted in the traditional manner.

Width from arm = 115 mm Weight = 385 grams/pair

MKS Sylvan Track Silver Pedal

Replica design of the classic Campagnolo track pedal. Aluminum body, CrMo spindle. These are very nice, with excellent road clearance. (Track pedals are a minimalist variation on traditional clip-and-strap type pedals, with a cutaway outer portion for better clearance.)
Bearings can be serviced/adjusted in the traditional manner.

The classic. Good for all kinds of riding, especially urban fixed, because of its clearance. Cheap and strong.

Width from arm = 89 mm Weight = 340 grams/pair.

Wolf Tooth ALT XC Clipless Pedals are designed for commanding performance on trails and gravel roads. These pedals are simultaneously lighter and thinner than their Shimano, Hope, and HT counterparts, with an exceptionally low stack height, while also having more platform area for control and power transfer. This body design also features a more open center for better mud clearance than other clipless bike pedals. The SPD-compatible clip-in/out experience is quick and precise, with Wolf Tooth cleats included.

The ALT XC Clipless Pedals have an adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

Thinner than the competition at 15 mm (compared to Shimano XTR 9200 at 16.5 mm, Hope RC at 18 mm, and HT M2 at 17.6 mm)
Lighter than the competition at 294 g (compared to Shimano XTR 9200 at 316 g, Hope RC at 322 g, and HT M2 at 306 g)
Larger platform area than the competition at 345 mm² (compared to Shimano XTR 9200 at 144 mm², Hope RC at 420 mm², and HT M2 at 357 mm²)
Adjustable Q factor options of 51, 55, and 59 mm
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA

Wolf Tooth CTRL Trail Clipless Pedals are designed for unparalleled control and support for all-mountain riding with flawless clip-in/out performance. No other SPD-compatible trail pedal has a large platform (941 mm²) that contacts the shoe and locks in the shoe like this. CTRL Trail Clipless Pedals are simultaneously lighter (326 g) and thinner (15 mm) than all other trail mountain bike pedals with an exceptionally low stack height. The thin profile means better cornering clearance, while the open center between the binding cages increases mud shedding ability.

The CTRL Trail Clipless Pedals have adjustable Q factor in 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacers. Spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

Thinner than the competition at 15 mm (compared to the Shimano XTR 9220 at 18.2 mm and the Hope TC at 18.2 mm)
Lighter than the competition at 326 g (compared to Shimano XTR 9220 at 439 g and Hope Trail at 438 g)
Bigger platform area than the competition at 941 mm² (compared to Shimano XTR 9220 at 883 mm² and Hope Trail at 645 mm²)
Adjustable Q factor range of 51, 55, and 59 mm (additional 53 and 57 mm options available as 2 mm spacers sold separately with spacer kit)
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA

Wolf Tooth DEL Gravel Race Clipless Pedals feature a one-sided design for peak speed and consistent performance in gravel races. These SPD-compatible bike pedals are exceptionally lightweight at only 216 g, while still featuring a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one-sided design features an open center between the binding cages for mud shedding. It has all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions.

The DEL Gravel Race Clipless Pedals have an adjustable Q factor of 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacer. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

Thinner than the competition at 14.7 mm (compared to Xpedo MF8 at 17 mm, Shimano XTR 9200 at 16.5 mm, and Eggbeater 3 at 17 mm)
Lighter weight than the competition at 216 g (compared to Xpedo MF8 at 220 g, Shimano XTR 9200 at 316 g, and Eggbeater 3 at 265 g)
Larger platform area for power transfer than the competition at 559 mm² (compared to Xpedo MF8 at 46 mm², Shimano XTR 9200 at 144 mm² and Eggbeater 3 at 102 mm²)
Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately)
5 degrees float | 12 degrees release
SPD compatible
Proven axle and bearing design from Waveform Aluminum Pedals
Designed, tested, and machined at Wolf Tooth in Minnesota, USA

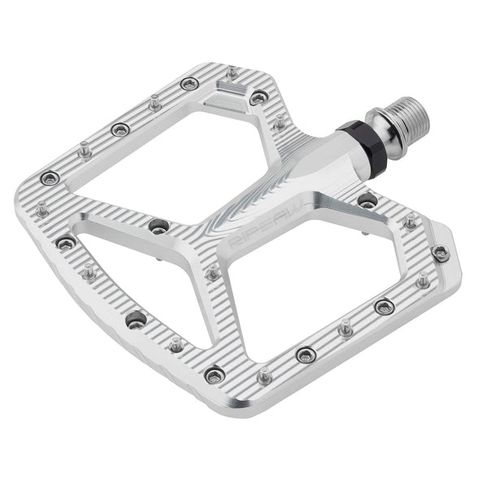

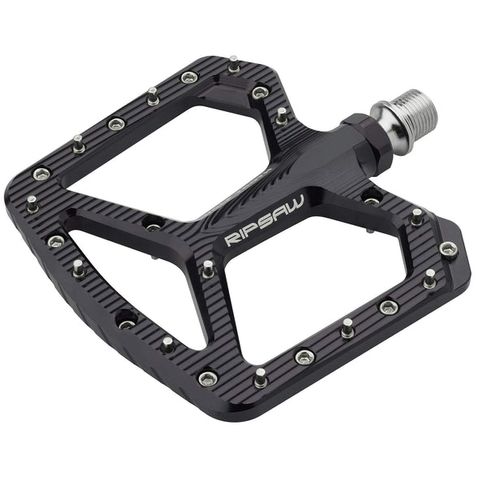

The new Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric aluminum platform provides strong foot support for all-mountain riding, while the minimal convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.

- One size: 118mm long x 102mm wide
- Twelve stainless steel, rear-loading grip pins on each side
- Six extra 4.5mm grip pins included
- Replacement parts and service guides available via Wolf Tooth Right to Repair
- Five-year warranty
- Exceeds all ISO safety standards
- Machined and assembled at Wolf Tooth in Minnesota, USA

Recommended

- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes 6 extra grip pins.

Compatibility

- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.

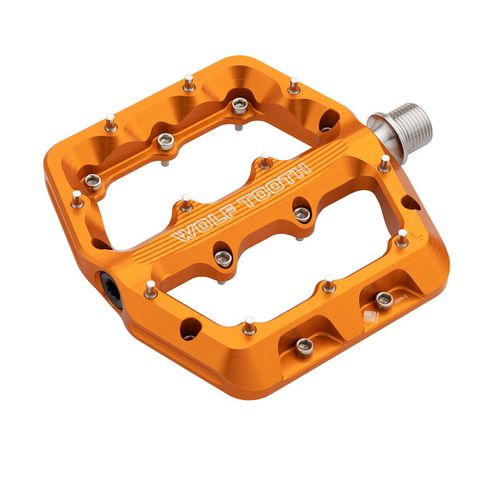

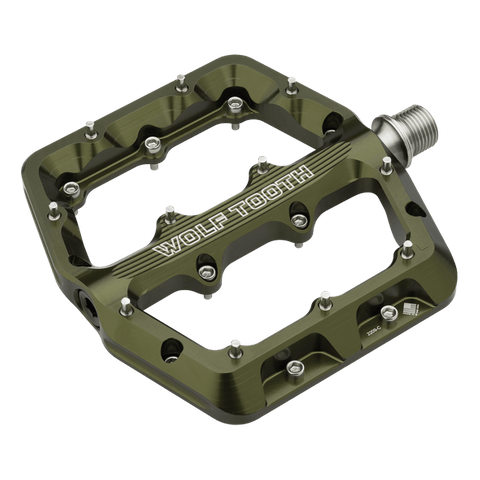

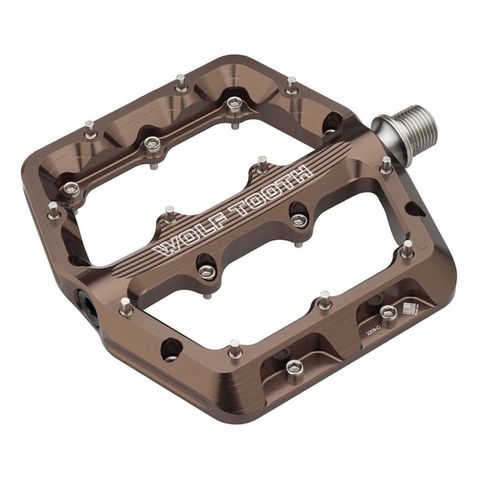

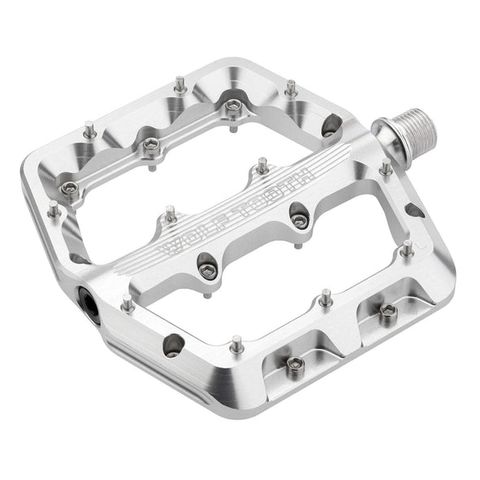

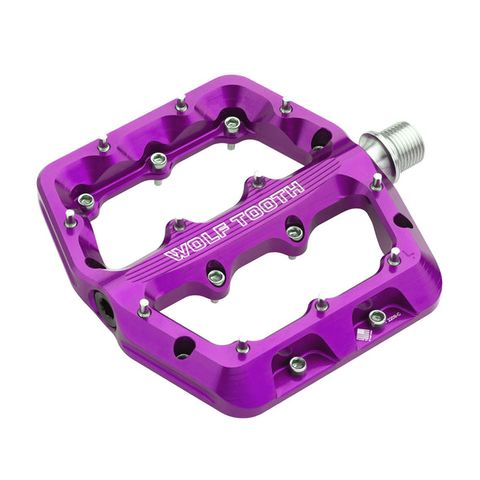

Wolf Tooth Waveform Aluminum Pedals are designed for all-mountain riding, from XC to downhill. The pedals come in two sizes, and are proportionally scaled to provide a supportive platform, shaped to match the footprint of your shoe. They have a slim, dual-concave profile that is 14mm thick at the perimeter and just 12.5mm thick in the center, cradling your foot for optimal pedal feel. Each side of the pedal has 11 stainless steel rear-loading pins for loads of traction. The design also features a large, tapered leading edge to deflect pedal strikes on rough terrain. A custom radial seal protects three fully sealed cartridge bearings for low-friction riding in all conditions.

- Two sizes: Large is 112mm x 106mm, small is 105mm x 99mm
- Three high-precision, low-friction sealed bearings designed specifically for this pedal, with one igus bushing
- Custom radial seal to protect internal hardware from water, dirt, and trail debris
- Eleven stainless steel, rear-loading 4.5mm pins per side
- Dual Concavity secures your feet firmly in place on the pedals, both front-to-back and side-to-side
- Tapered leading edge deflects pedal strikes.

Weight: Large set 384g | Small set 373g
